Entra ID Connector Configuration Steps and Requirements

Connector Setup

General Configuration

To configure the Veridium Entra ID connector the following steps must be performed in Microsoft Entra ID and obtain the necessary details:

Step 1: Open Microsoft Entra Admin Center

Sign in to the Microsoft Entra admin center: https://entra.microsoft.com

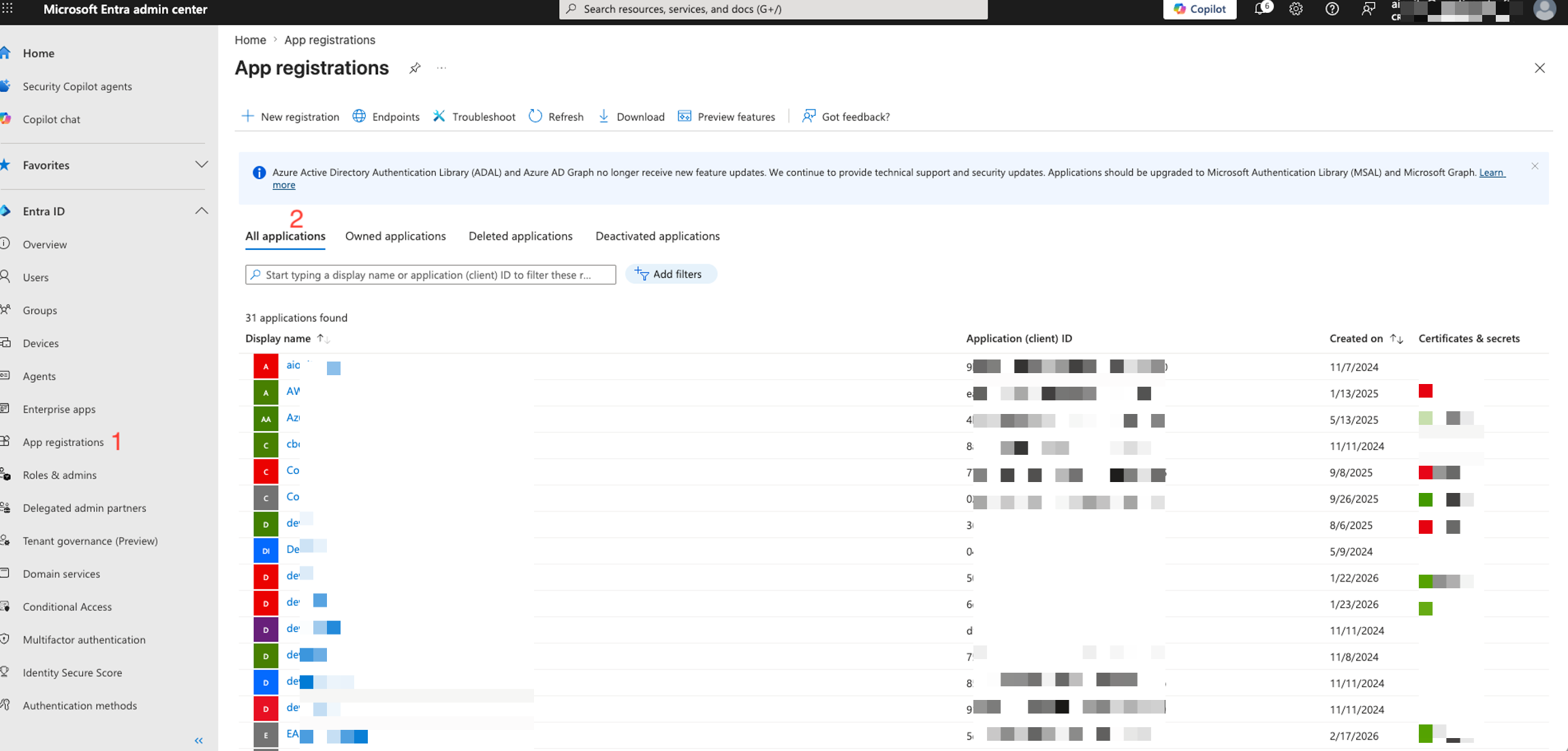

Navigate to Entra ID → App Registration → All applications.
Select the application created for the connector integration.

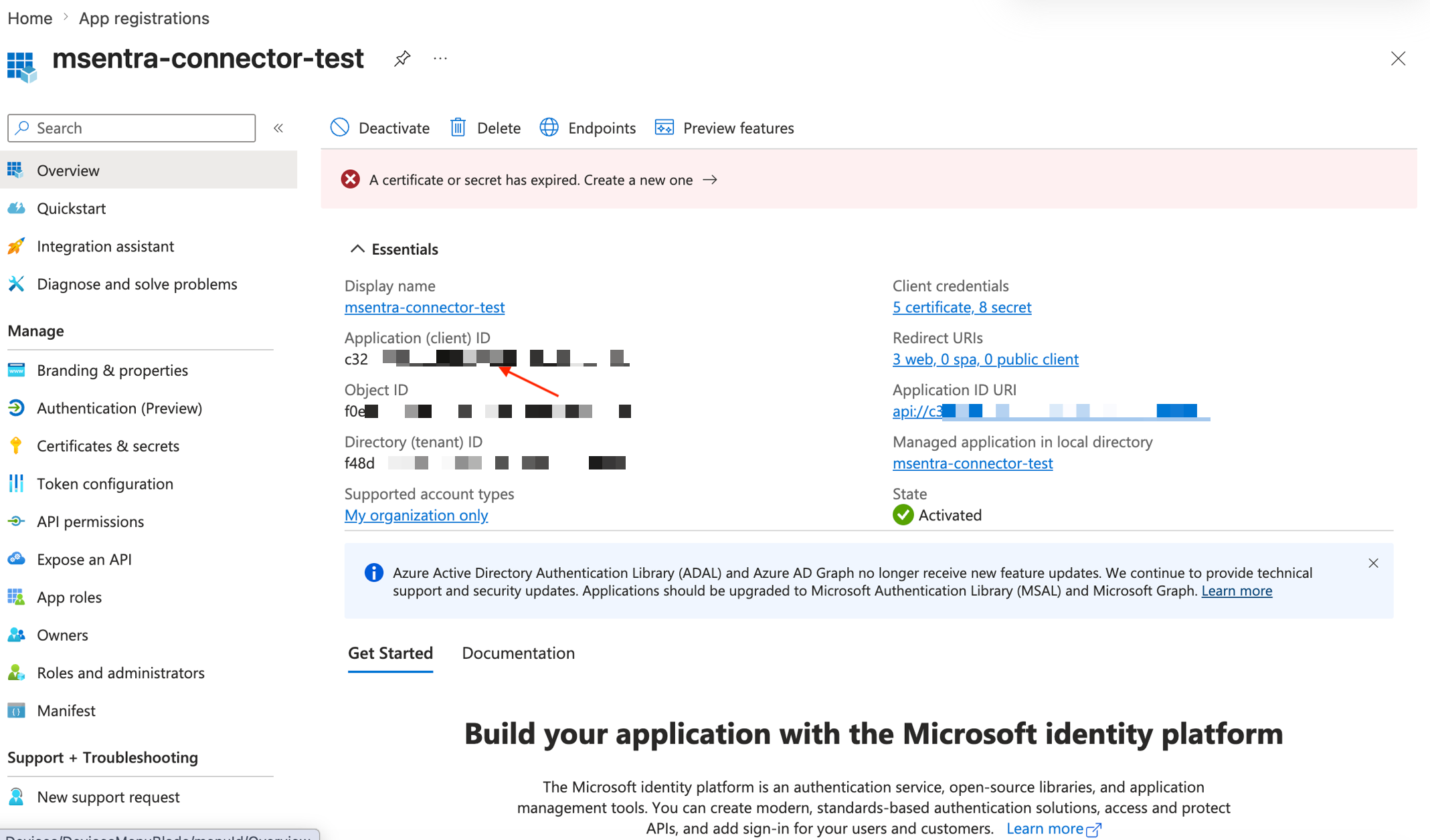

Step 2: Retrieve the Application (Client) ID

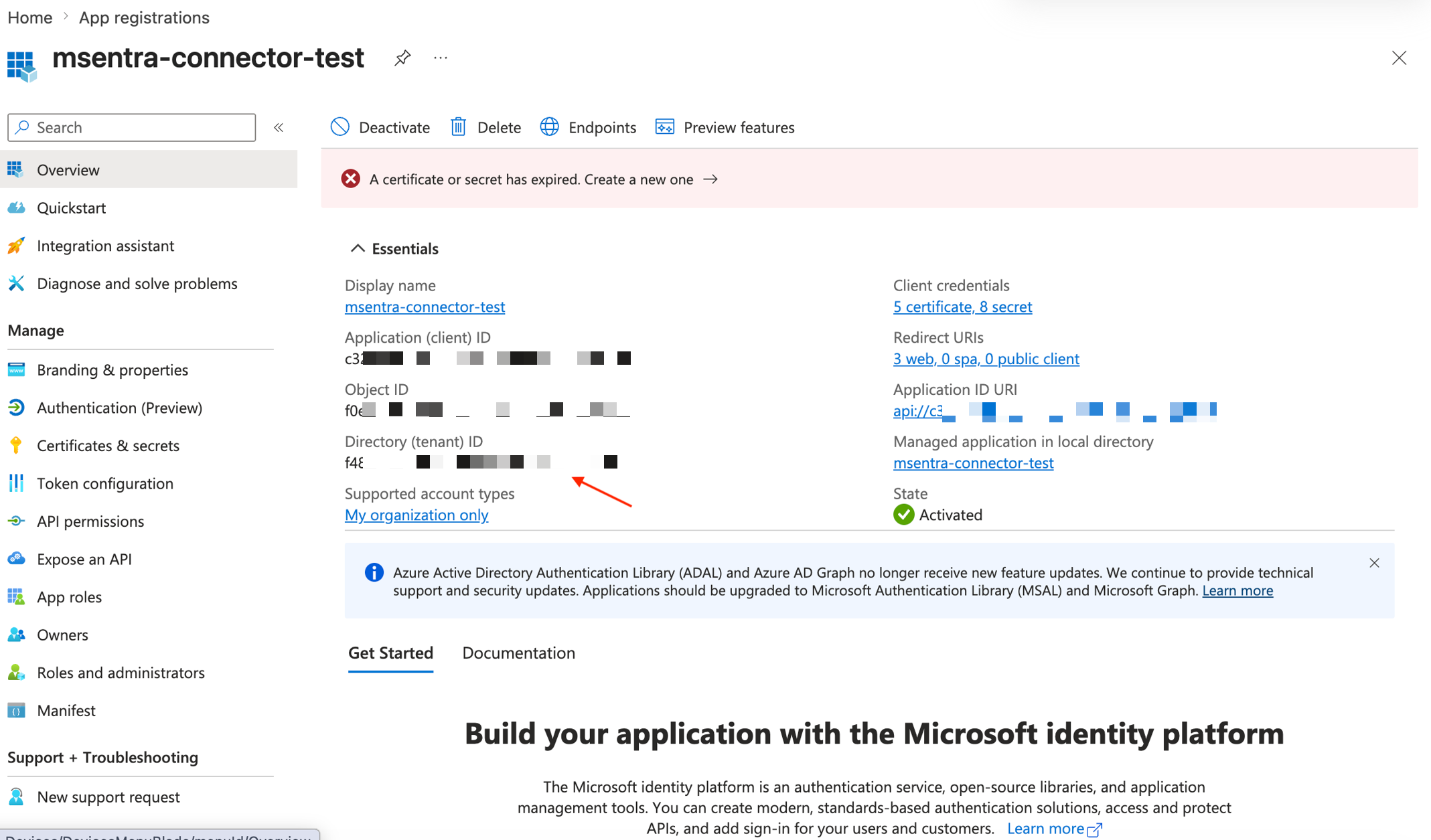

Open the application's Overview page.
Copy the Application (client) ID value.

Step 3: Retrieve the Directory (Tenant) ID

On the same Overview page, locate Directory (tenant) ID.
Copy the value.

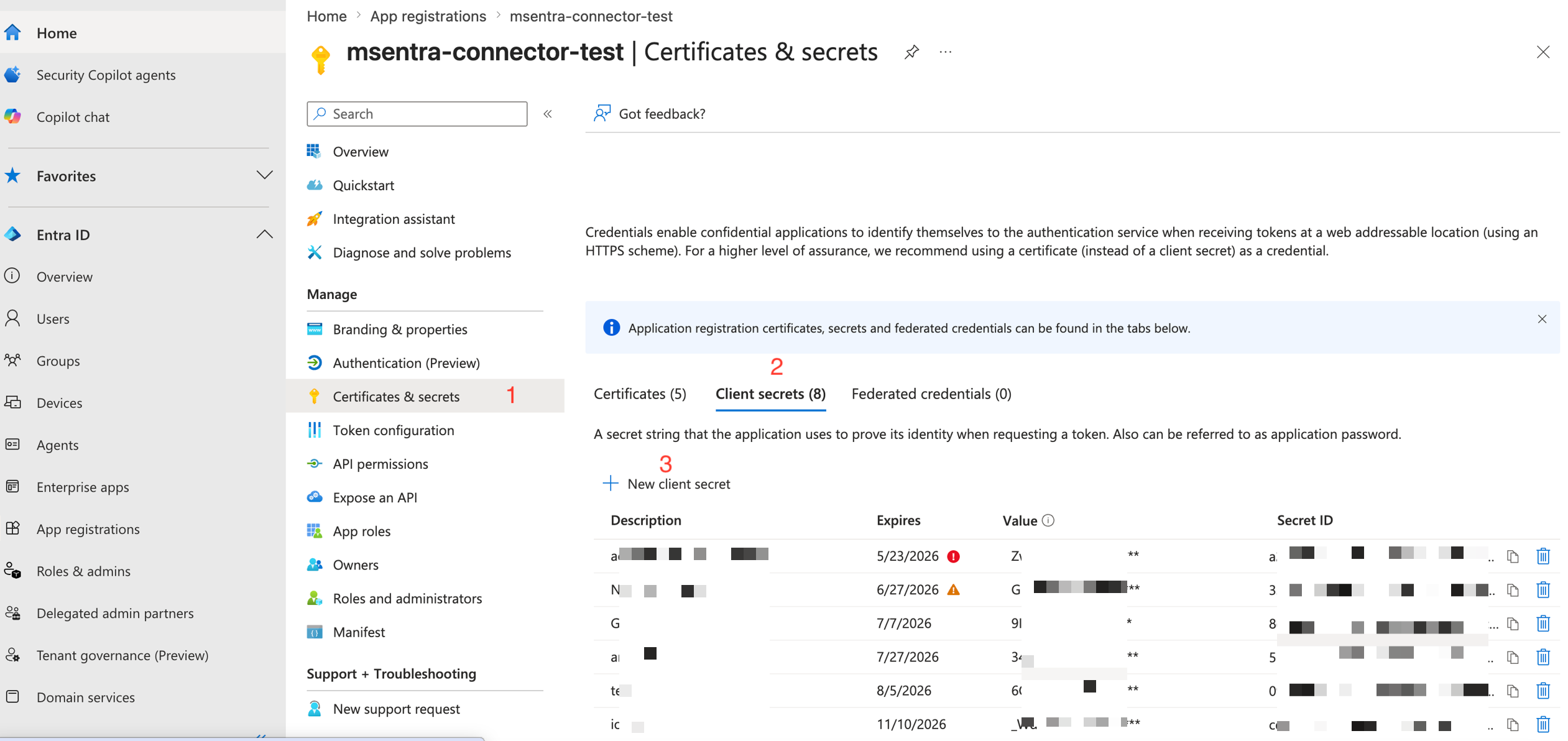

Step 4: Create and Retrieve a Client Secret or Client Certificate

Navigate to Certificates & secrets.
Select New client secret.
Enter a description and choose an expiration period.
Click Add.
Copy the generated Secret Value immediately and store it securely.

Important: The secret value is displayed only once and cannot be retrieved later.

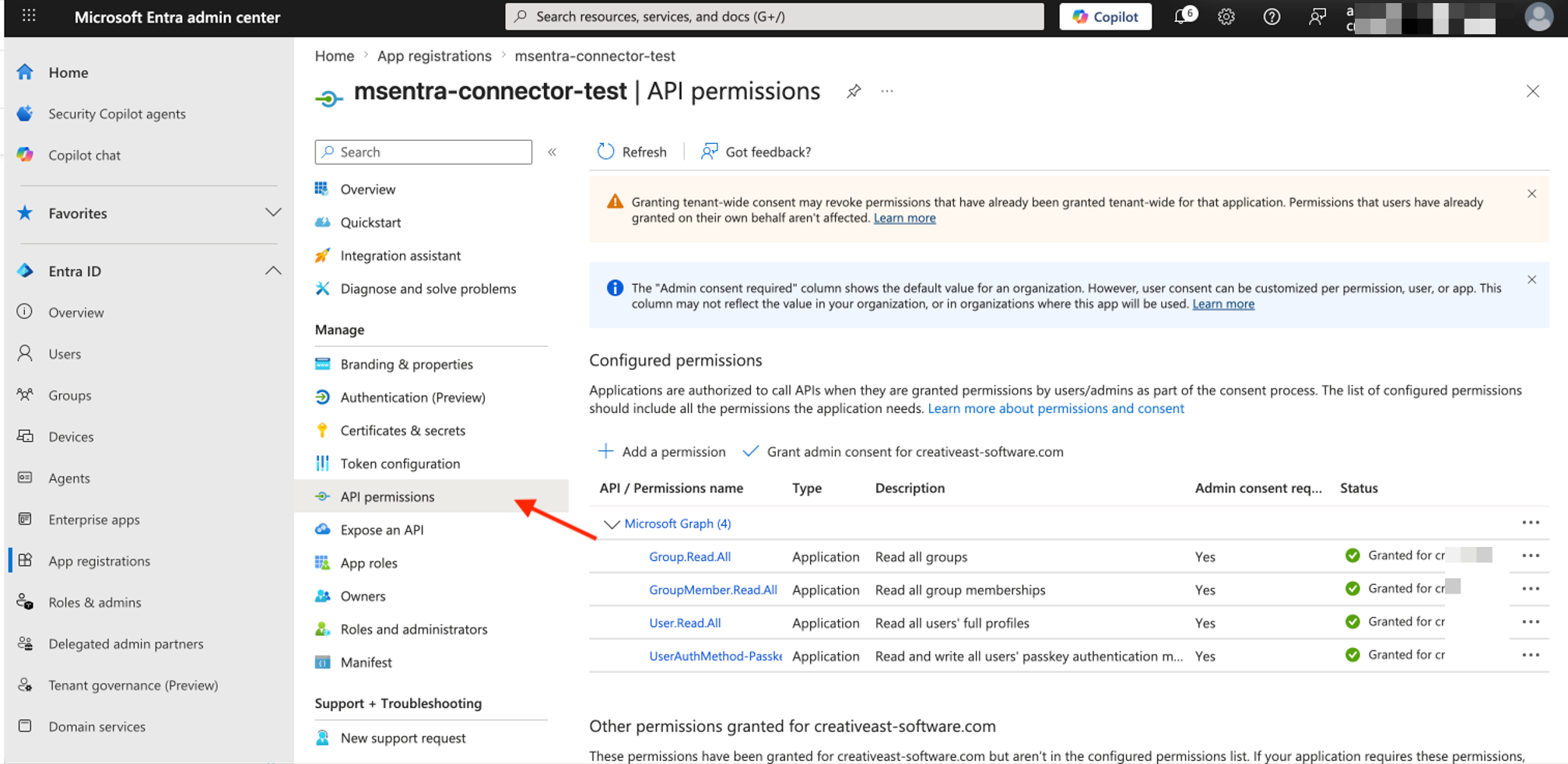

Step 5: Verify API Permissions

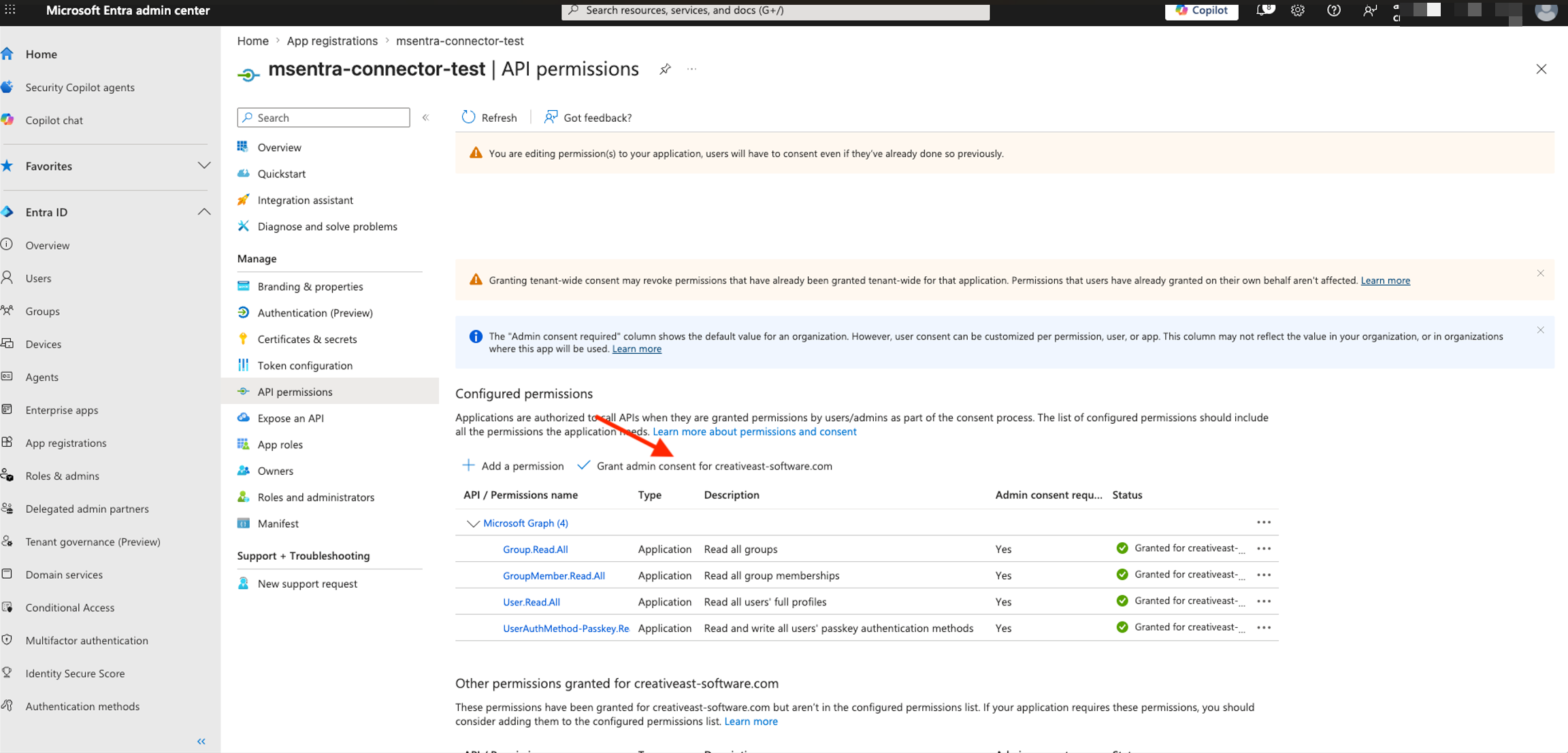

Navigate to API permissions.
Confirm that all required Microsoft Graph permissions are present.
If required, select Grant admin consent.

Required Microsoft Graph Permissions

The required Microsoft Graph permissions depend on the features enabled in the connector.

User and Group Synchronization

These permissions are required for importing users, groups, and group memberships from Microsoft Entra ID.

Permission	Purpose
`User.Read.All`	Read user profiles and attributes used for identity synchronization.
`Group.Read.All`	Read groups available in the tenant.
`GroupMember.Read.All`	Read group membership information for user-to-group assignments.

Required for:

User synchronization
Group synchronization
Authorization based on group membership
Enrollment without passkeys
Authentication without passkeys

Passkey Enrollment and Management

This permission is required only when passkey management is enabled through the connector.

Permission	Purpose
`UserAuthMethod-Passkey.ReadWrite.All`	Create, update, and remove passkey authentication methods for users.

Required for:

Passkey enrollment
Passkey lifecycle management
Passkey provisioning and deprovisioning

Not required for:

User synchronization
Group synchronization
Authentication using already-enrolled passkeys

Use Case	User.Read.All	Group.Read.All	GroupMember.Read.All	UserAuthMethod-Passkey.ReadWrite.All
User Synchronization	✓
Group Synchronization		✓	✓
Enrollment (without Passkey)	✓	✓	✓
Enrollment (with Passkey)	✓	✓	✓	✓
Authentication (without Passkey)	✓	✓	✓
Authentication (with Existing Passkey)	✓	✓	✓
Passkey Provisioning / Management	✓	✓	✓	✓

Admin Consent

After adding the required permissions, select Grant admin consent to authorize the application to access Microsoft Graph on behalf of the organization.

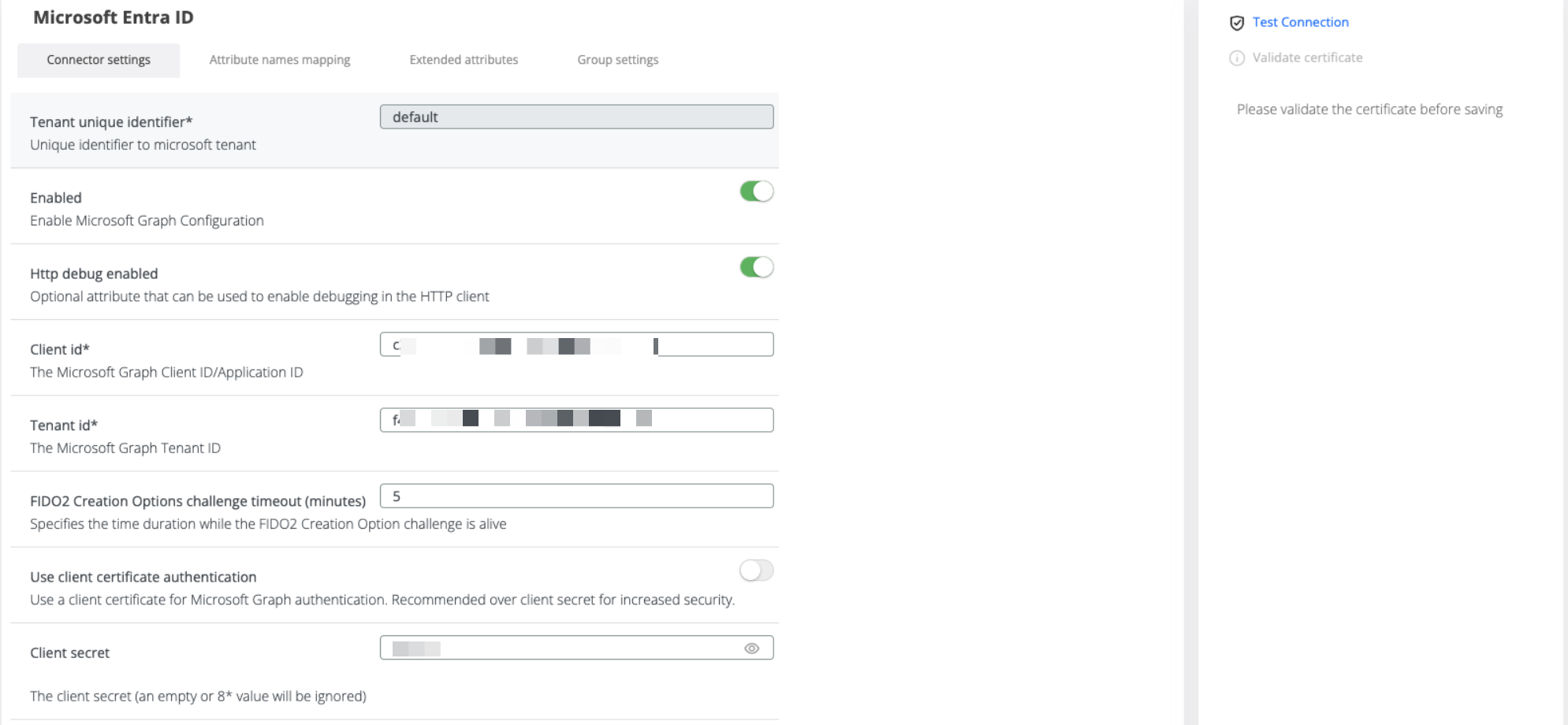

Step 6: Configure Connector Settings

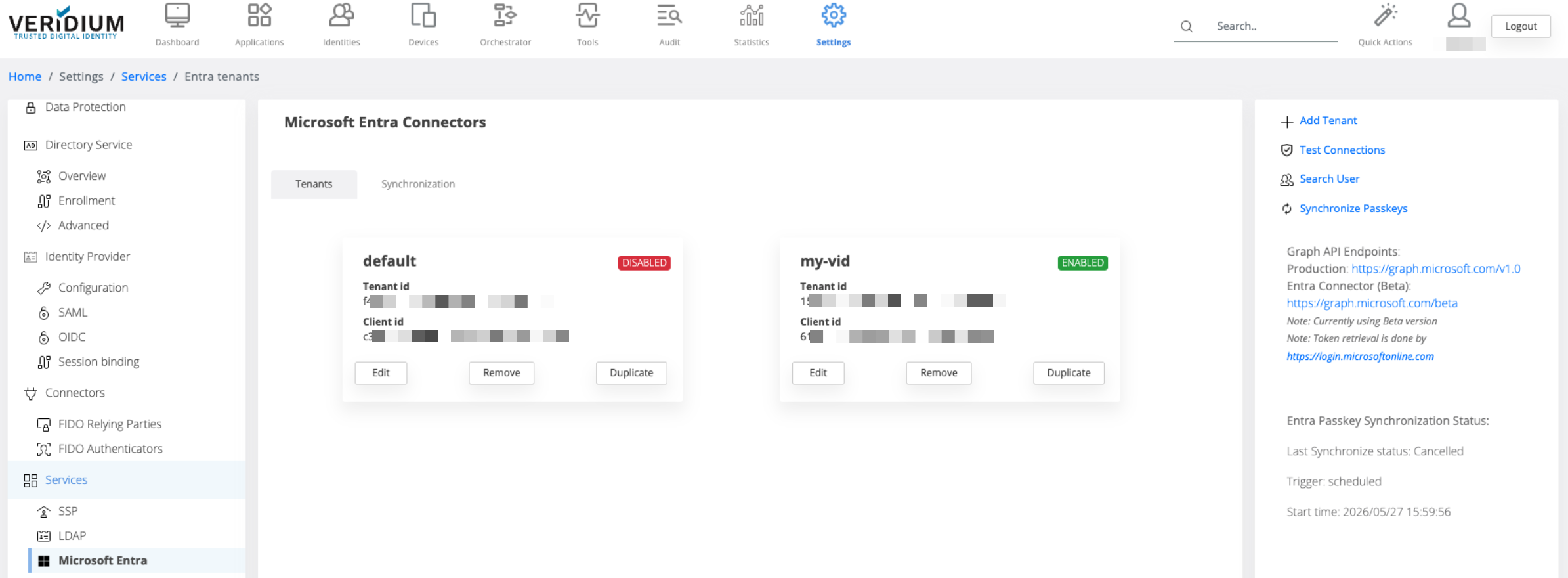

Navigate to:

CODE

Admin Manager > Settings > Services > Microsft Entra

Use the values collected from the previous steps to populate the connector configuration.

Connector Field	Entra ID Value
Tenant ID	Directory (tenant) ID
Client ID	Application (client) ID
Client Secret	Client Secret Value

Debug Configuration

CODE

Http Debug Enabled

If activated, this provides:

Microsoft Graph request logging
Authentication diagnostics
Attribute mapping validation

Disable debugging in production after validation.

FIDO2 Configuration

Configure:

CODE

FIDO2 Creation Options challenge timeout

Default:

CODE

5 minutes

Specifies the time duration while the FIDO2 Creation Option challenge is alive

Authentication Method

Use Client Certificate Authentication

Enable this option to authenticate to Microsoft Graph using a client certificate instead of a client secret.

Client certificate authentication is recommended for production environments because it provides stronger security than client secret-based authentication.

Setting	Description
Use client certificate authentication	Enables certificate-based authentication for Microsoft Graph API access

When this option is enabled, make sure the required certificate is configured and available to VeridiumID.

Client Secret

The client secret is used by VeridiumID to authenticate to Microsoft Graph when certificate-based authentication is not enabled.

Setting	Description
Client secret	The Azure App Registration client secret used for Microsoft Graph authentication

Certificate

The certificate is used by VeridiumID to authenticate to Microsoft Graph when client certificate authentication is enabled.

Setting	Description
Certificate	The client certificate used by VeridiumID to authenticate with the Azure App Registration

Connection Settings

These settings control how VeridiumID connects to Microsoft Entra ID and Microsoft Graph APIs.

Setting	Default	Description
Connection Timeout (ms)	5000	Maximum time, in milliseconds, to wait while establishing a connection to Microsoft Entra ID. If the server does not respond within this period, the request fails.
Read Timeout (ms)	5000	Maximum time, in milliseconds, to wait for data after the connection has been established. If Microsoft Entra ID takes longer to respond, the operation times out.
Maximum Idle Connections	5	Maximum number of idle HTTP connections kept in the connection pool for Microsoft Entra ID API calls. Higher values may improve performance in high-traffic environments but consume more resources.
Keep-Alive Duration (ms)	300000	How long idle connections remain available for reuse before being closed. Reusing connections reduces connection overhead. The recommended value for most deployments is `300000` milliseconds.

TLS and Certificate Validation

These settings control how VeridiumID validates SSL/TLS certificates when connecting to Microsoft Entra ID.

Disable SSL Certificate Verification

This option bypasses SSL/TLS certificate validation for Microsoft Entra ID connections.

Setting	Description
Disable SSL Certificate Verification	Disables certificate validation for Microsoft Entra ID connections

Warning: This option is insecure and should not be used in production environments.

Only use this option temporarily for troubleshooting in controlled environments.

Use Veridium Truststore

Enable this option to use the custom Veridium truststore for SSL/TLS certificate validation.

Setting	Description
Use Veridium Truststore	Uses the Veridium truststore instead of the Java default truststore

When disabled, the system uses the Java default truststore.

This option applies only when SSL certificate verification is enabled.

Tenant Domain Pattern

The Tenant Domain Pattern setting controls which user domains are associated with this Entra ID connector.

This is especially useful in multi-tenant deployments where different domains must be routed to different Entra tenants.

Setting	Description
Tenant Domain Pattern	One or more domain patterns associated with this tenant

Enter one or more domain patterns separated by commas.

Use * as a wildcard.

Example:

CODE

*.dev.com,*.microsoft.com

Additional examples:

CODE

*@company.com
*@subsidiary.company.com

When multiple Entra connectors are configured, VeridiumID can use these patterns to determine which connector should handle users from a specific domain.

Attribute names mapping

Proper mapping is essential for identity resolution and JWT token generation

Proper attribute mapping is essential for:

User synchronization
Authentication flows
JWT claim generation
Downstream application integrations

Standard Attribute Mapping

Internal Attribute	Entra Attribute
ID	id
Mobile	mobilePhone
Groups	memberOf
User Account Control	accountEnabled
Email	mail
Username	userPrincipalName
Line Manager	manager
First Name	givenName
Last Name	surname
Microsoft Login ID	mail
Password Last Set	lastPasswordChangeDateTime
Password Expiration Time	N/A
Account Lockout Time	N/A
Account Expires	N/A

Extended Attributes

Extended attributes allow administrators to preserve additional Entra-specific metadata.

Example:

Internal Attribute	Entra Attribute
entraId	id
entraUpn	userPrincipalName
mail	mail
userPrincipalName	userPrincipalName

Critical JWT Claim Requirement

The following mapping is mandatory:

Internal Attribute	Entra Attribute
entraUpn	userPrincipalName

This value is required to populate:

CODE

entraUpn

inside JWT tokens used by downstream applications.

Group Synchronization Settings

The Entra ID connector can filter which Microsoft Entra ID groups are returned during group lookup and synchronization.

These settings help reduce unnecessary group data, improve performance, and limit synchronization to groups that are relevant for VeridiumID policies or application access.

Allowed Group Types

This setting controls which Microsoft Entra ID group types are included in the result.

Setting	Description
Allowed Group Types	Filters which Microsoft Entra ID group types are included in group lookup results

Leave this field empty to return all group types.

Use this setting when only specific group types should be considered by VeridiumID.

Example use cases:

Include only security groups
Exclude Microsoft 365 groups
Limit results to groups used for authentication policies

Group Name Pattern

This setting filters groups by display name using case-insensitive wildcard matching.

Setting	Description
Group Name Pattern	Filters Microsoft Entra ID groups by display name

Use * as a wildcard.

Multiple patterns can be provided, separated by commas. When multiple patterns are configured, VeridiumID applies OR logic.

Leave this field empty to include all groups.

Examples:

Pattern	Result
`Admin*`	Matches groups starting with `Admin`
`*Team`	Matches groups ending with `Team`
`HR`	Matches groups containing `HR`
`Admin,VPN-`	Matches groups matching either `Admin` or `VPN-`

Page Size

This setting controls how many groups are retrieved per Microsoft Graph request.

Setting	Default	Description
Page Size	50	Number of groups retrieved per Microsoft Graph request

The maximum allowed value is:

CODE

Larger values may be ignored or adjusted by Microsoft Graph.

Increasing the page size can reduce the number of Microsoft Graph requests required, but may also increase response size and processing time.

Veridium Manager Application Settings

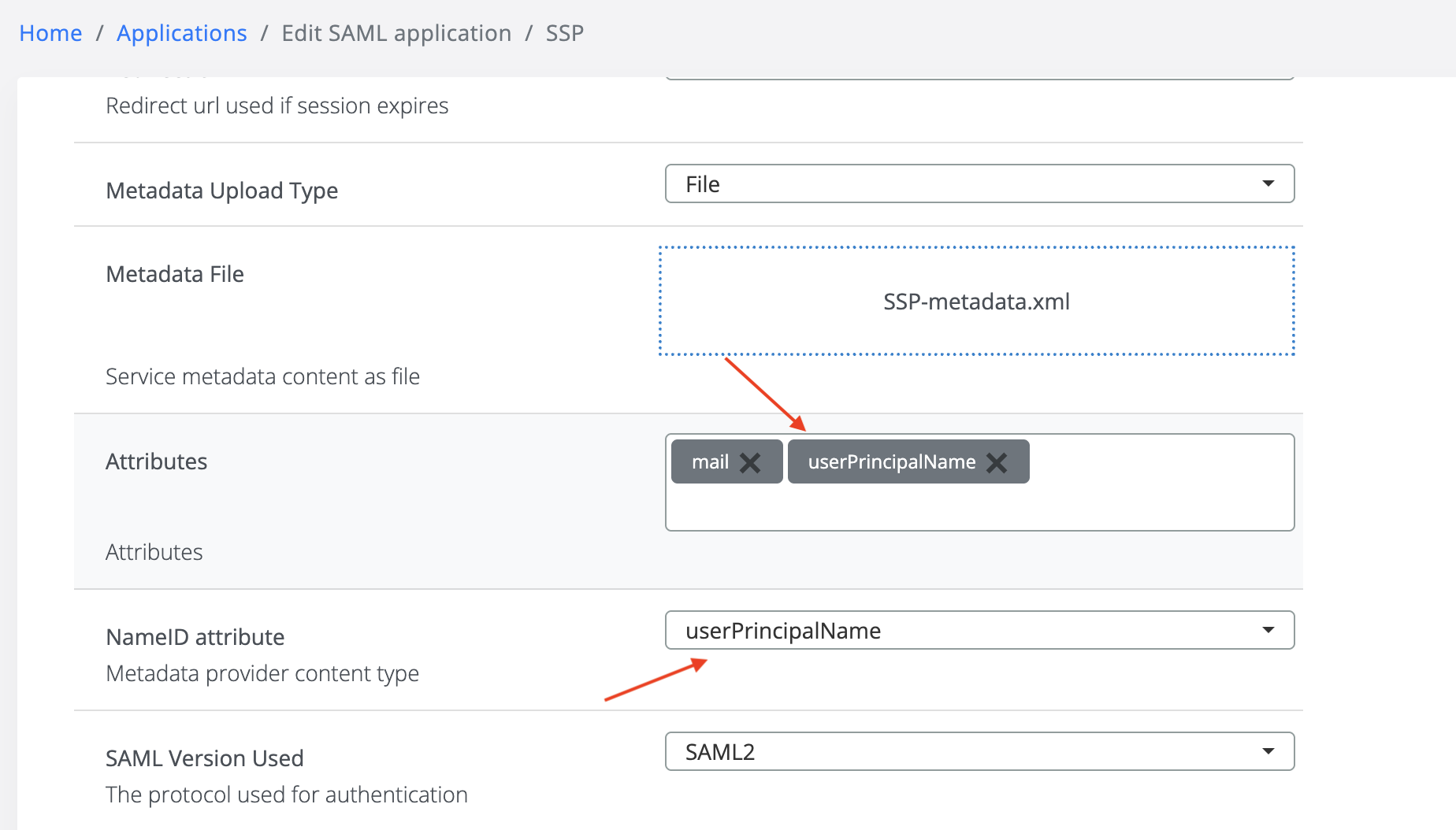

To authenticate to SSP, configure the application to include userPrincipalName in Attributes and set the NameID attribute to userPrincipalName.

Entra-Only User Limitations

Password Management Limitations

Unsupported Features

Entra-only users currently cannot:

Authenticate using Entra password directly in VeridiumID
Use self-service password reset
Change passwords through the platform
Authentication in Entra cannot be controlled via Veridium. Only enrolment can be restricted via Veridium platform.
For example if a user’s access is restricted via Entra group permissions, the authentication via Veridium will still work, but user’s access will be denied at Entra level.

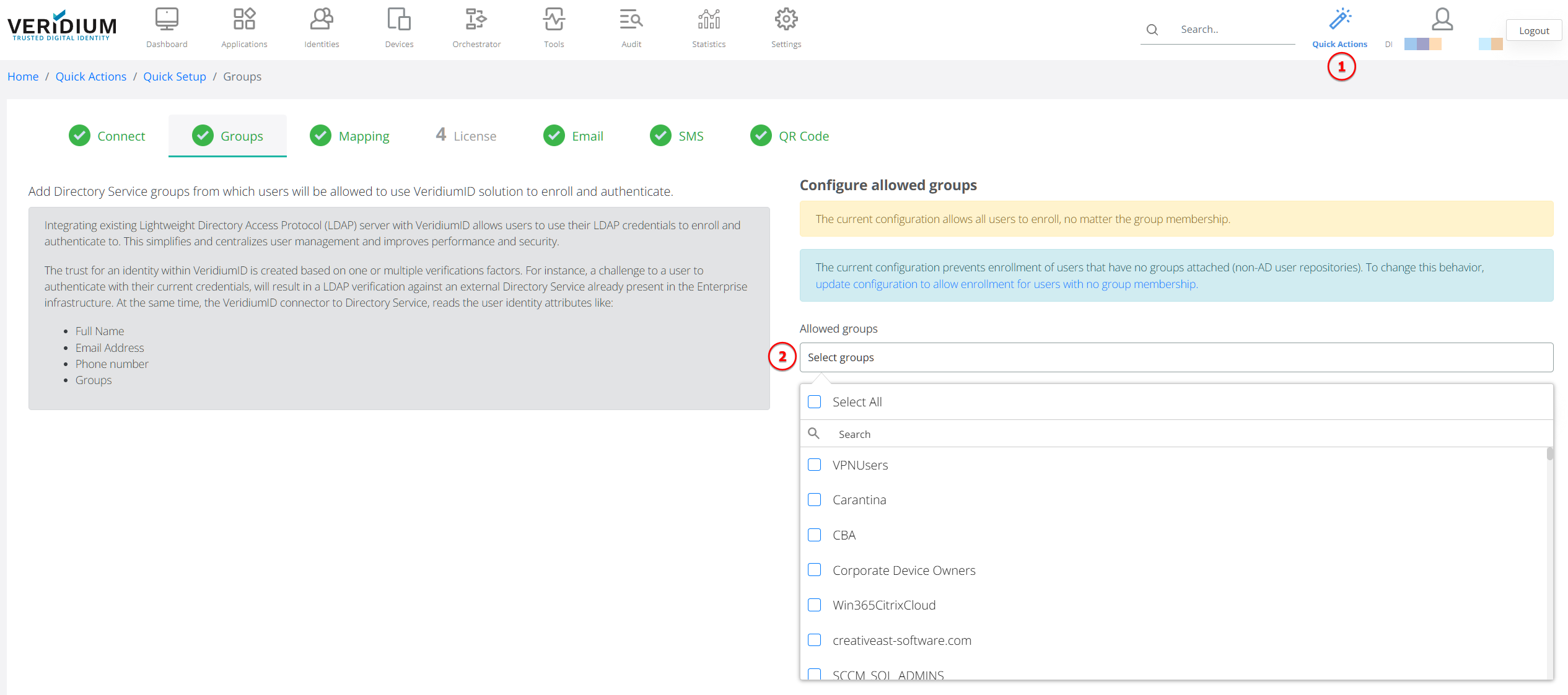

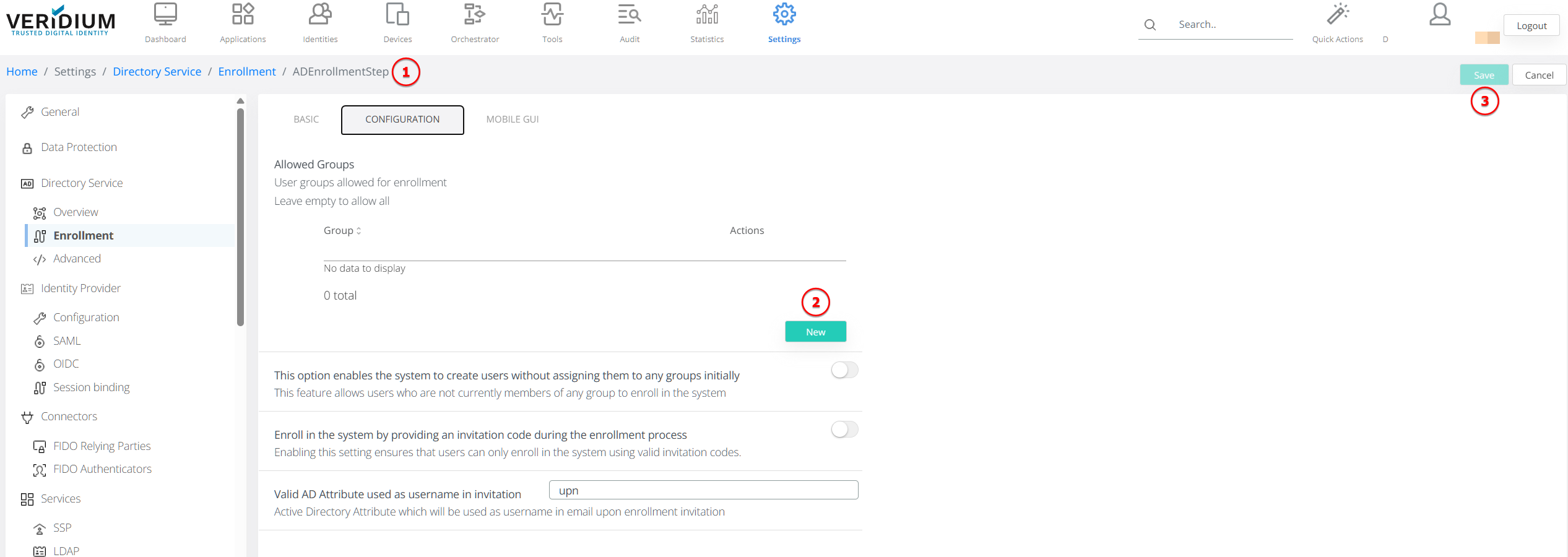

Entra groups can be configured either from Quick Settings, or from Enrollment - AD Enrollment tab:
