Server Installation

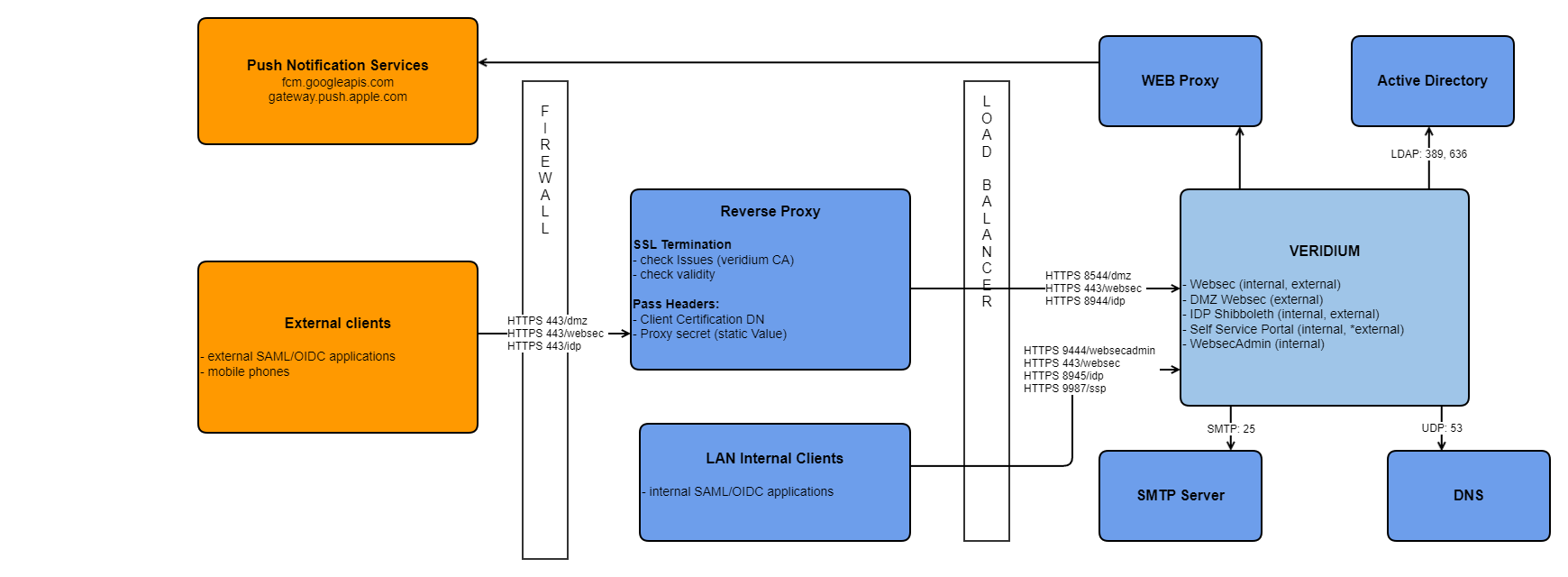

General architecture:

Overall Arhitecture Copy.png

Network Access Control List and DNS hosts for port implementation:

DNS entries:

DNS internal: HOST.DOMAIN.INTERNAL (eg. veridium.dev.local)

DNS external: HOST.DOMAIN.EXTERNAL (eg. veridium.veridium-dev.com)



Services and ports:

Internal access: 443 (websec), 9444 (websecadmin), 8945 (idp), 9987 (ssp)

External access: 443 (websec), 8544 (dmzwebsec), 8944 (idp), 9987(self service portal - optional, for registration)



Network Access Control List and DNS hosts for FQDN implementation:

DNS entries:

Internal: HOST.DOMAIN.INTERNAL (websec), admin-HOST.DOMAIN.INTERNAL (websecadmin), shib-HOST.DOMAIN.INTERNAL (idp), ssp-HOST.DOMAIN.INTERNAL (self service portal)

External: HOST.DOMAIN.EXTERNAL (websec), dmz-HOST.DOMAIN.EXTERNAL (dmzwebsec), shib-HOST.DOMAIN.EXTERNAL (idp), ssp-HOST.DOMAIN.EXTERNAL (self service portal - optional, for registration)

Ports:

Internal access: 443

External access: 443



Other services:



Service

Source

Destination

Port

Protocol

Bi-directional

Deployment

Deployment Server (ex. normally, it is used one of the nodes)

WEBAPP + PERSISTENCE

22, 443, 9444, 8945, 9987 (for PORTS)

22, 443 for FQDN implementation

TCP

No













Web Service

WEBAPP

PERSISTENCE

2181, 9042, 9092, 9095

TCP

No

Persistence Service

PERSISTENCE

PERSISTENCE

2181, 2888, 3888,7000, 7001, 7199, 9092, 9042, 9095

TCP

No

 * if ILP installed

WEBAPP ILP

 PERSISTENCE

 2181, 9042, 9092, 9095

 TCP

 No

* if ILP installed

WEBAPP

WEBAPP ILP

443

TCP

No

RAEP

Windows RAEP Servers

Intranet Balancer for WEBAPPS

443

TCP

No

RAEP

Windows RAEP Servers

Load Balancer for ADCS - PKI (active-active setup)

443, 135, 139, 49152 - 65535

TCP

No

RAEP

Windows clients W11/W10

Load Balancers for Windows RAEP Servers

443

TCP

No

RAEP

Load Balancers for Windows RAEP Servers

Windows RAEP Servers

443

TCP

No

CP

Windows clients W10/W11 Credential Provider

Intranet Load Balancers for Webapps

443, 8945

TCP

No

WEBAPP Servers

WEBAPP

ADDS - LDAP

636 or 3269 (or 389,3268)

TCP

No













DNS

All Nodes

DNS Server

53

UDP

Yes

NTP

All Nodes

NTP Server

123

UDP

No

SMTP

All Nodes

SMTP

25

UDP

No

SIEM

All Nodes

SIEM







SMS Gateway

WEBAPP (via reverse proxy or direct)

SMS Gateway, if required

443

TCP

No













SSO Integration

SSO

Intranet Load Balancers for Webapps

443, 8945

TCP

No

CITRIX Integration

Storefront, Netscaler

Intranet Load Balancers for Webapps

443, 8945

TCP

No

CITRIX Integration

VDA

Domain Controller

389, 636, 3268, 3269

TCP

No

RADIUS

Client Freeradius Server

WEBAPP

2083

TCP

No

RADIUS

Client Freeradius Server

WEBAPP

1812, 1813

UDP

No













Admin (WebAPP and Persistence Nodes)

Vendor PCs - MFA Admin PCs

WEBAPP and Persistence nodes

22

TCP

No

Admin (Windows RAEP Servers)

Vendor PCs - MFA Admin PCs

Windows RAEP Servers

3389

TCP

No













Google push - Android Verdium Application

WEBAPP (via reverse proxy or direct)

fcm.googleapis.com
oauth2.googleapis.com

443

TCP

No

Apple push iOS Verdium Application

WEBAPP (via reverse proxy or direct)

api.push.apple.com

443

TCP

No

Email, SMS Messaging and Push Notification Services

For using the directory services PoC, OTP code delivery method must be configured either via email (SMTP), or SMS messages to users during enrollment.

  • To use email, use the administration dashboard to enter your email server SMTP parameters into the appliance. Instructions are provided later in this guide.

Using Unique Names

To perform end-to-end testing, you will need to use a publicly trusted certificate and Public DNS records that match the name(s) on your certificate. Choose whether you use:

  • Port Mapping. One unique DNS record with port numbers for different service endpoints. In this instance you will use a certificate with one subject name for all endpoints. (i.e. vid.domain.com)

  • SNI Mapping. Multiple unique DNS record (SNI mappings) for different service endpoints. (i.e. admin-vid.domain.com). Use a multi-domain (SAN) certificate with subject alternative names for the different endpoints or a wildcard certificate (*.domain.com)

Based on your decision, obtain a valid, globally recognized SSL certificate for your server. Using a self-signed certificate will require configuring your smartphone to trust the root CA that generated the certificate, so it is generally easier to use a public certificate. Your certificate must be in PEM format and include any Intermediate and Root certificates in the chain as well as the unencrypted private key.

Obtain licenses from your Veridium sales engineer. As licenses are based on the certificate digest, you must have the certificate before Veridium can generate the licenses.

In the table below, the first URL is used for SNI service mapping and second URL is used for PORT service mapping depending on your configuration. Typically you would choose either SNI or the port based approach, not both. (Examples are shown for an environment name of PoC and a domain of poc.veridium.com, substitute your values as appropriate.)
