QR Offline authentication doesn't work

Symptoms

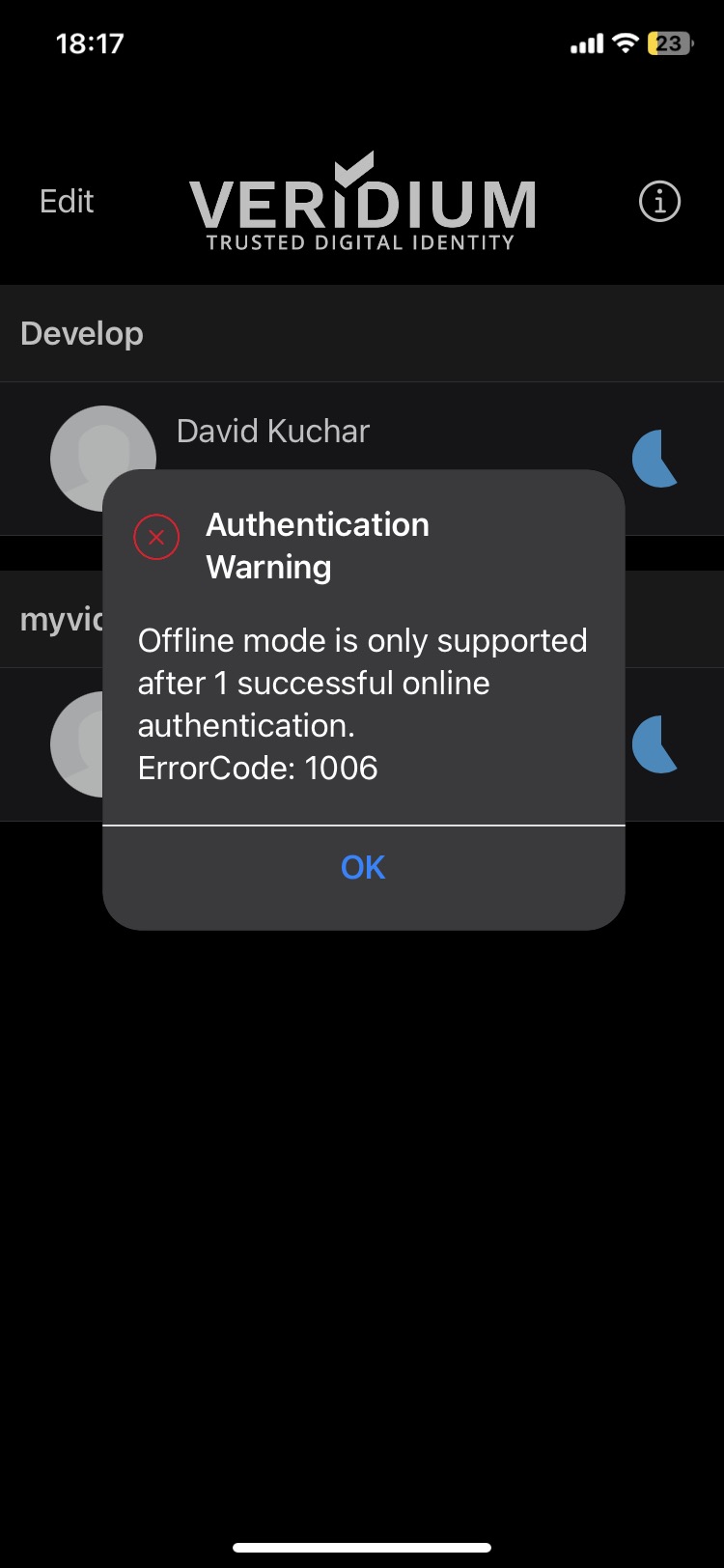

iOS:

MicrosoftTeams-image (6)-20230613-162330.png

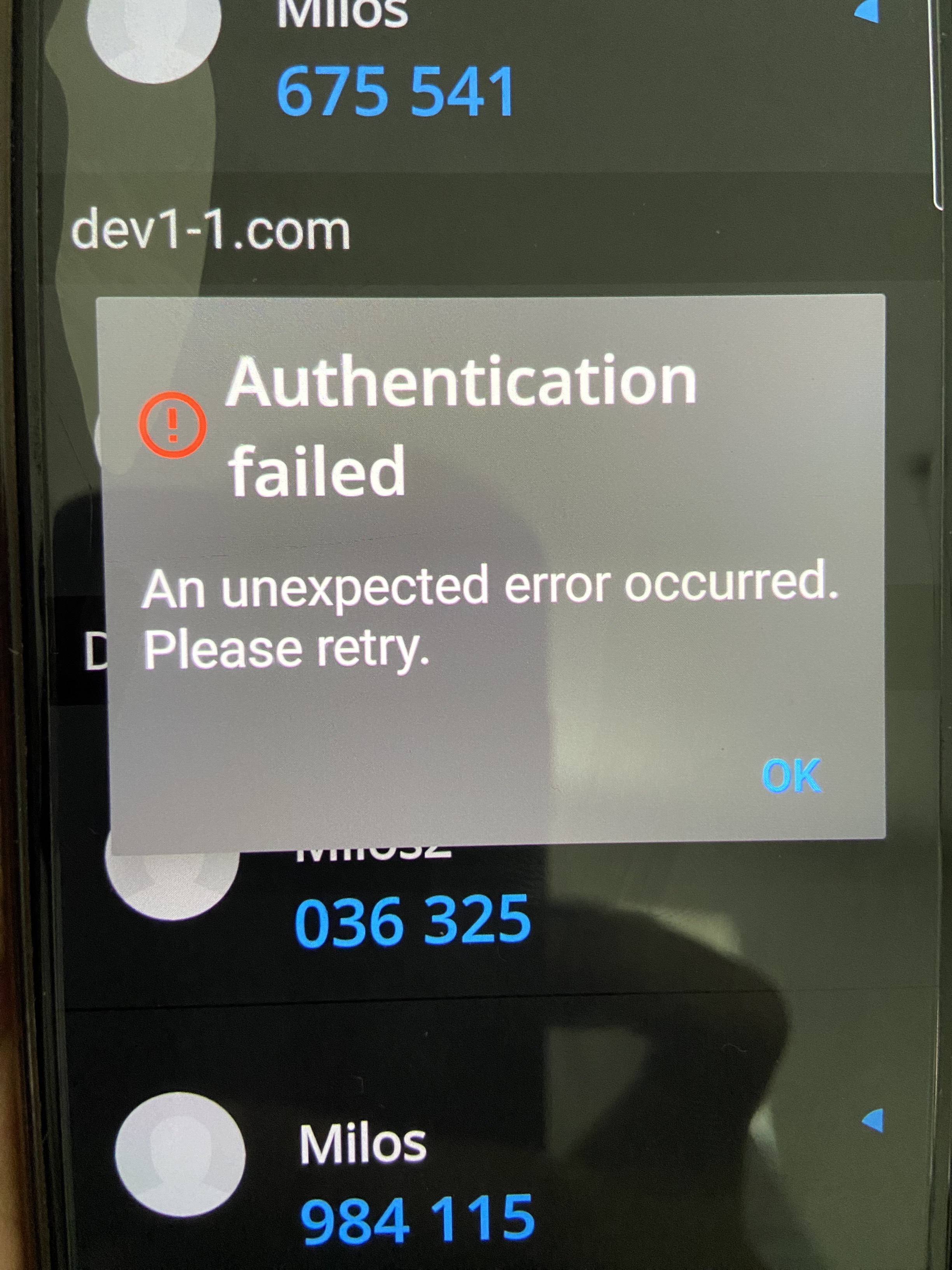

Android:

MicrosoftTeams-image (7)-20230613-162337.png


Root Cause

Check if the ExternalID key in Registry Editor is present.

Resolution

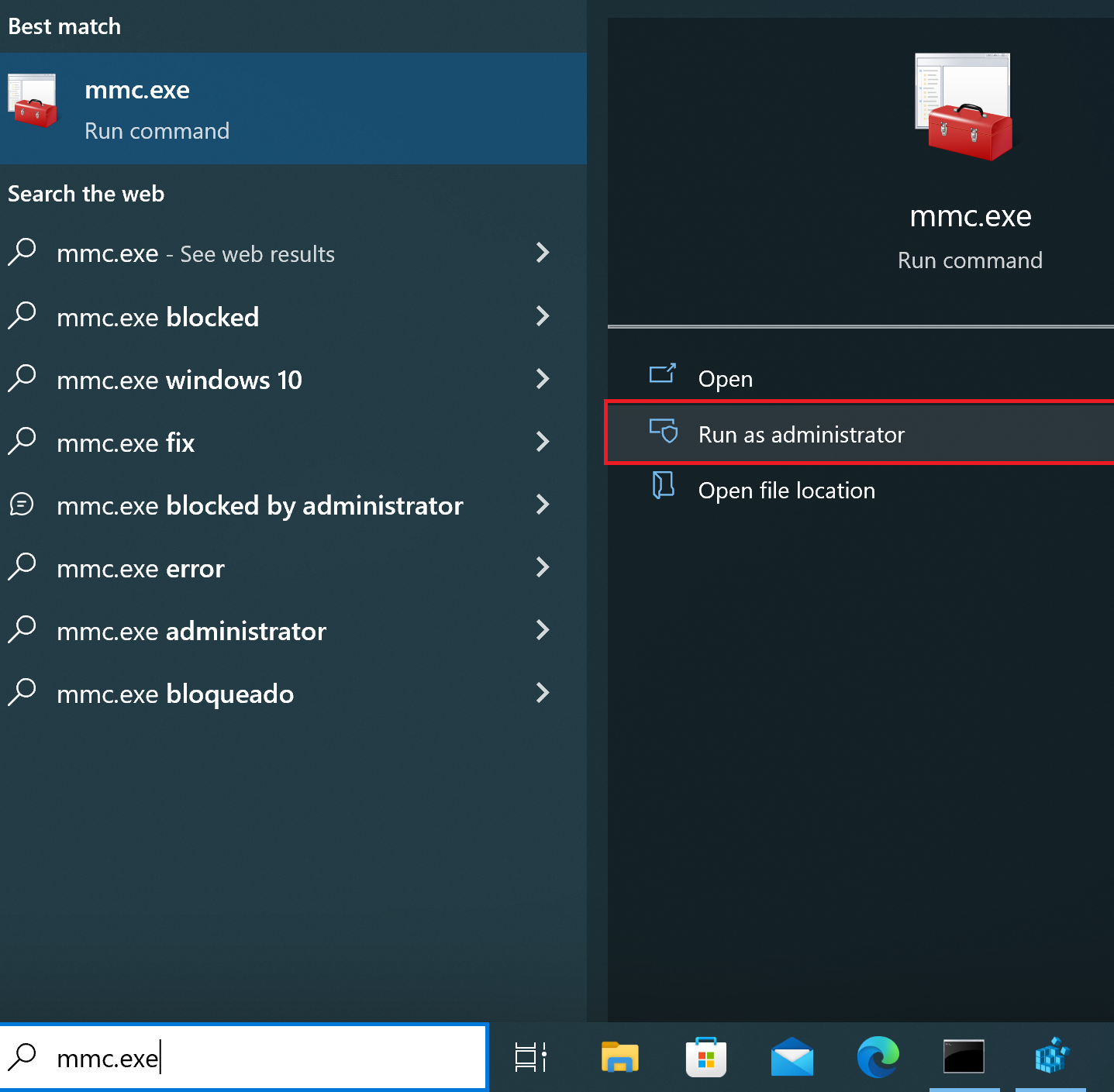

  1. Start MMC.exe as administator

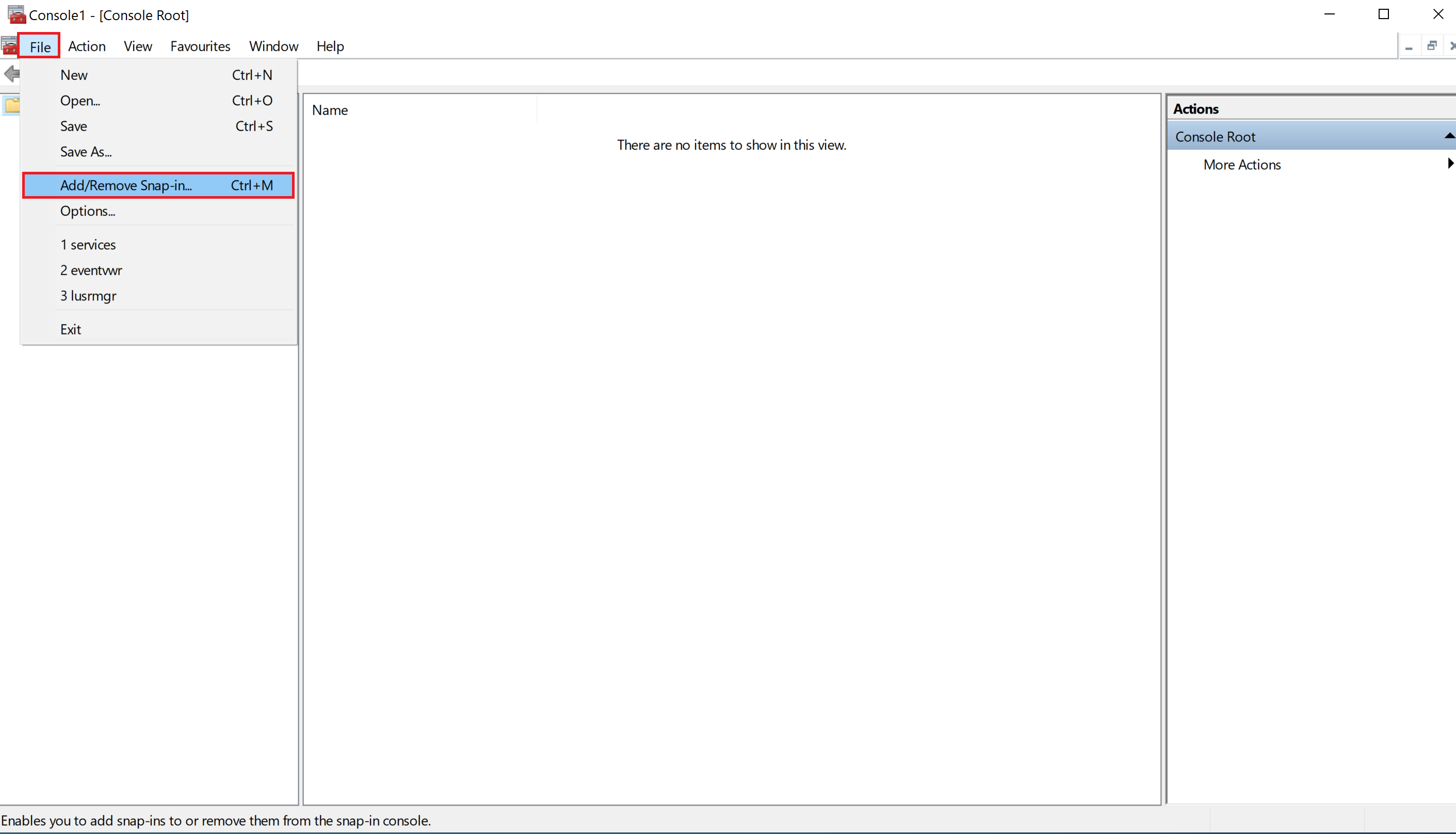

  2. Click on “File“ and then “Add/Remove Snap-in..“

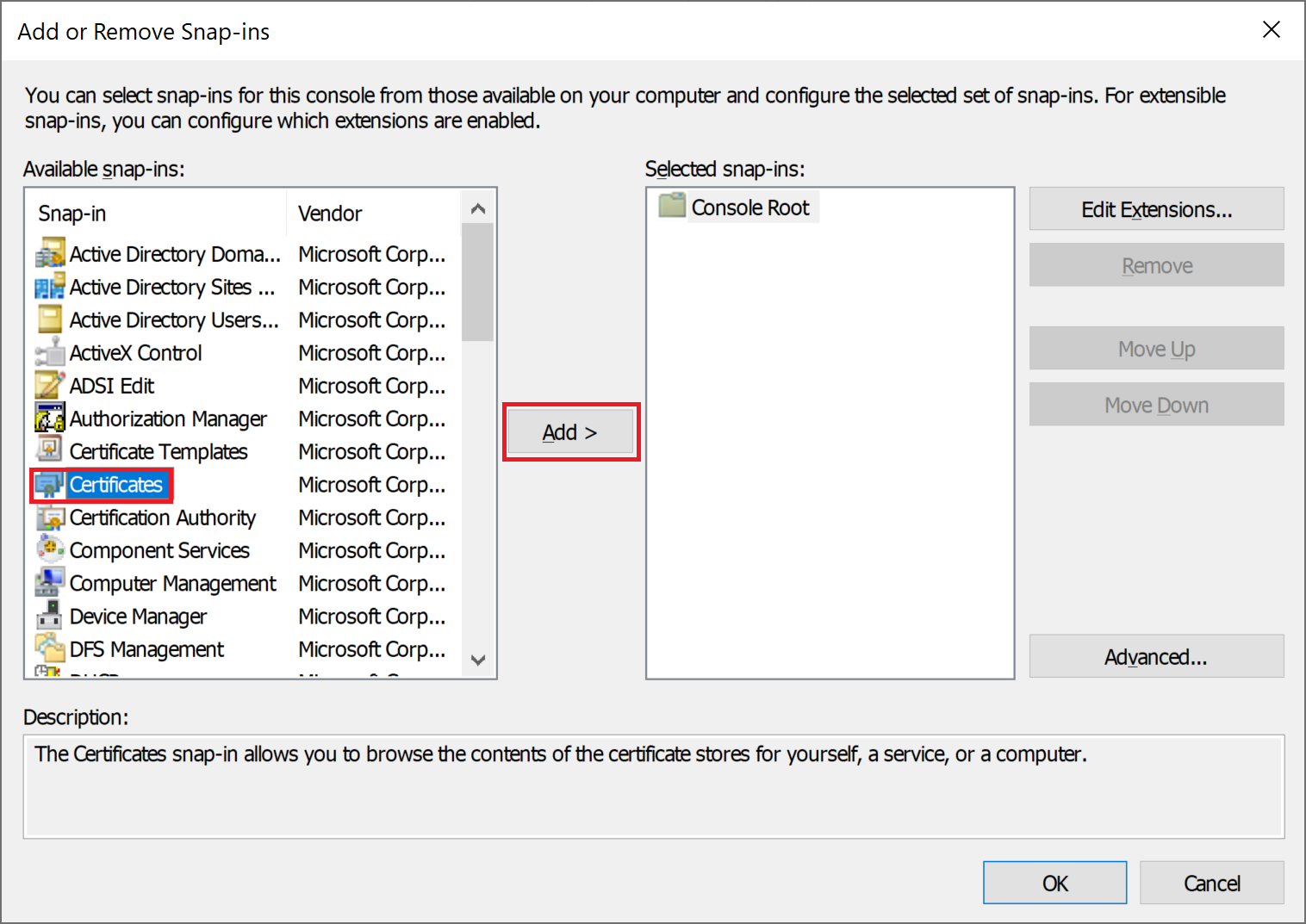

  3. In the section Available snap-ins choose Certificates and click “Add”

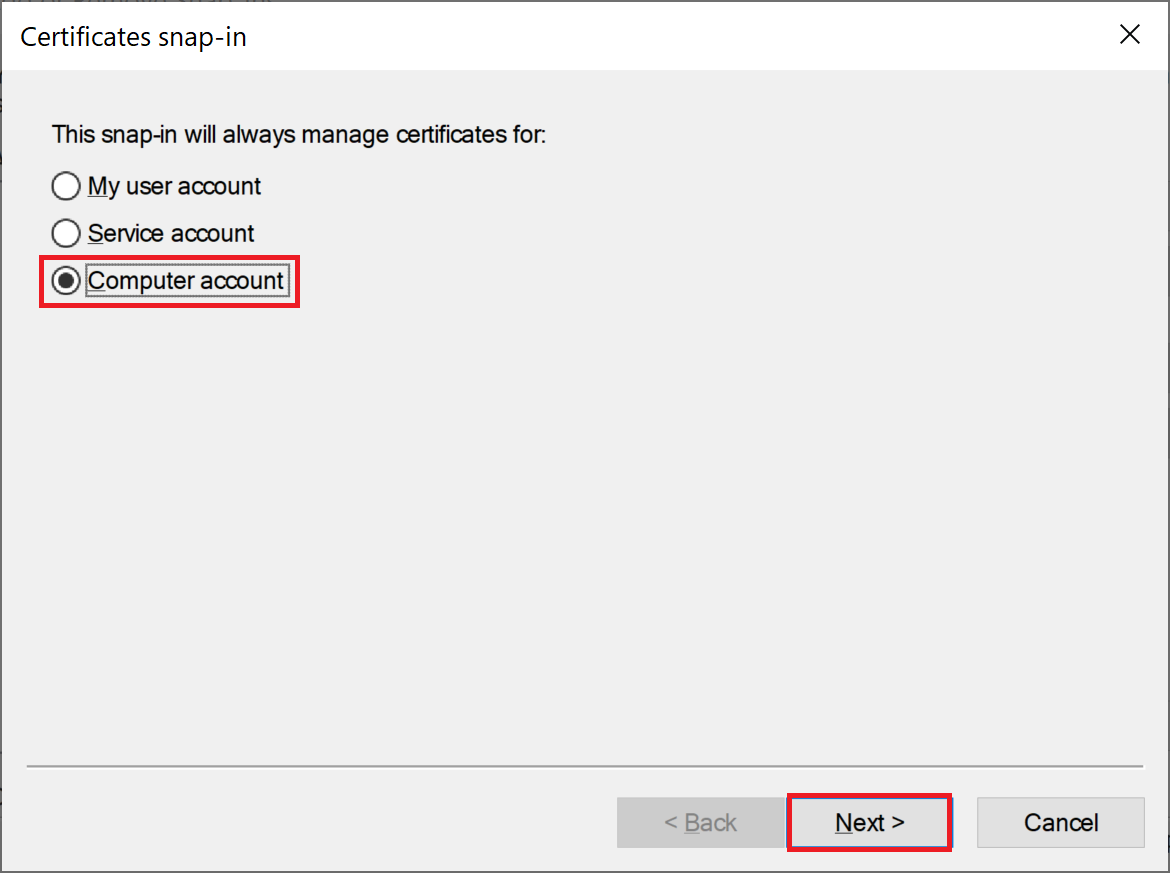

  4. Select Computer account and click “Next“

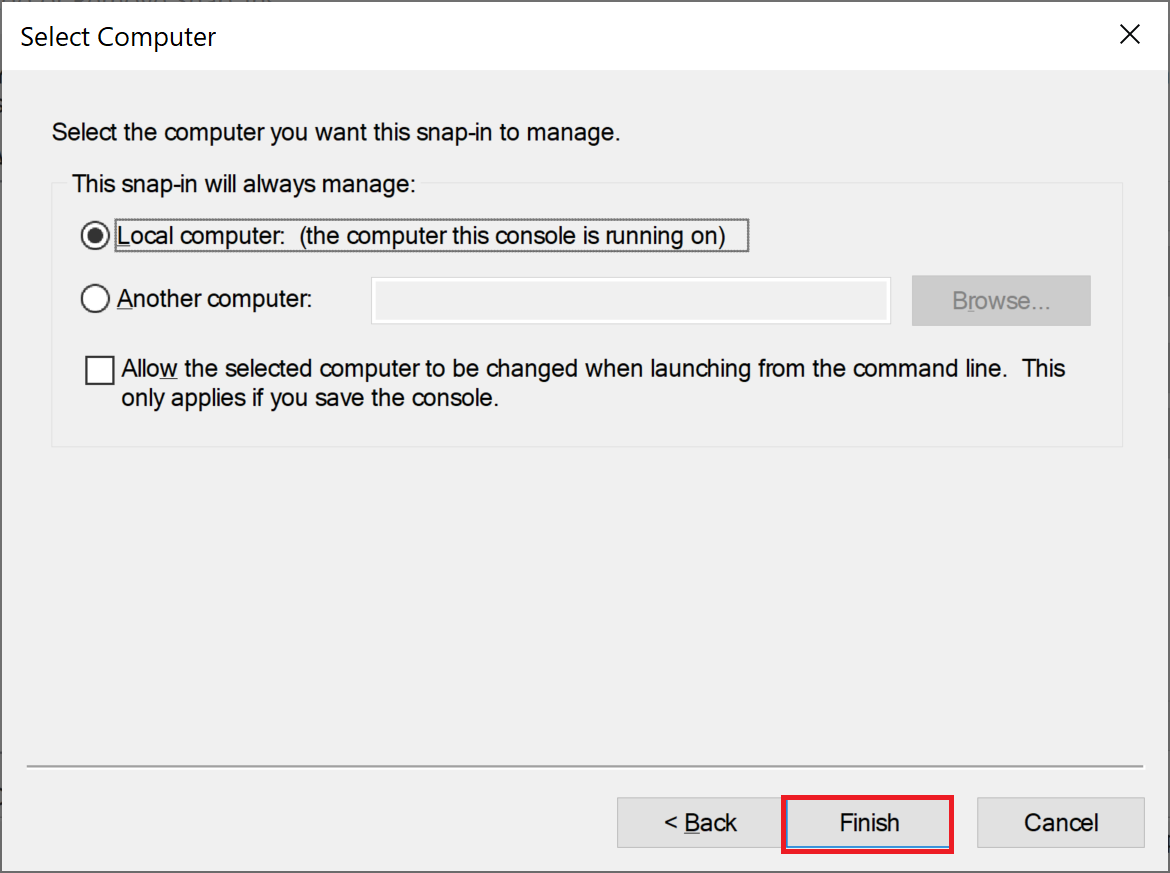

  5. Click “Finish“

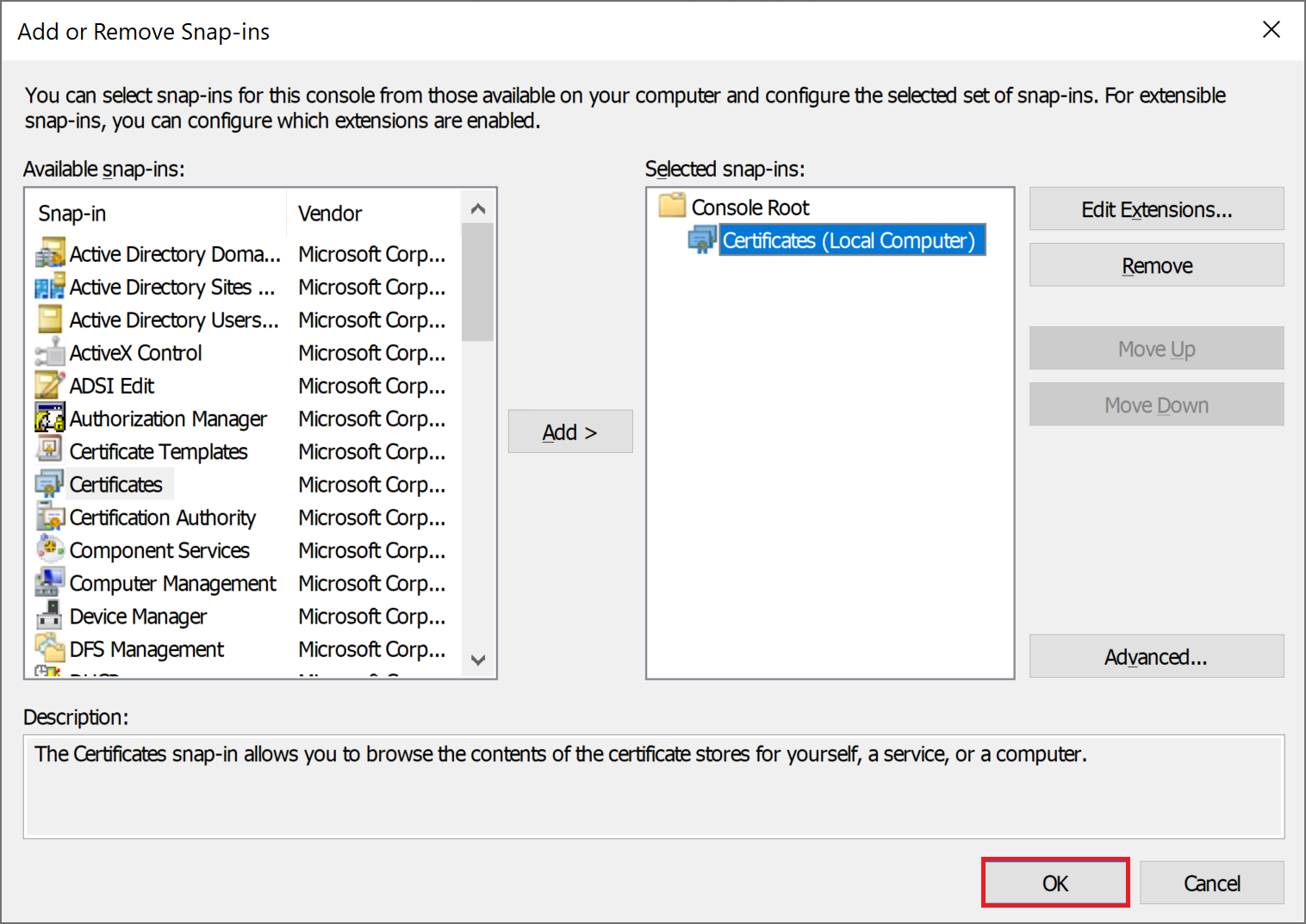

  6. Click “OK“

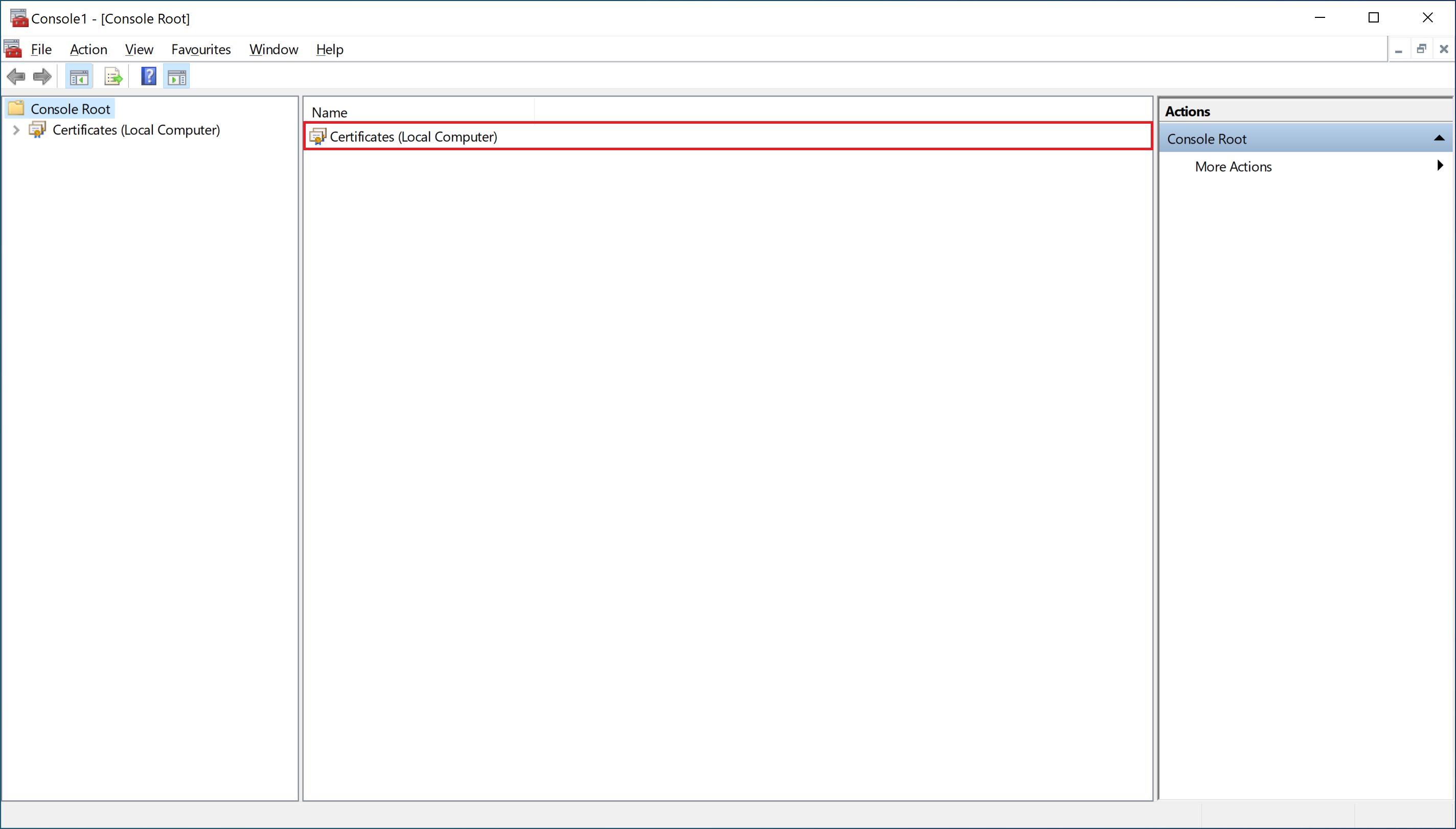

  7. Double-click on Certificates.

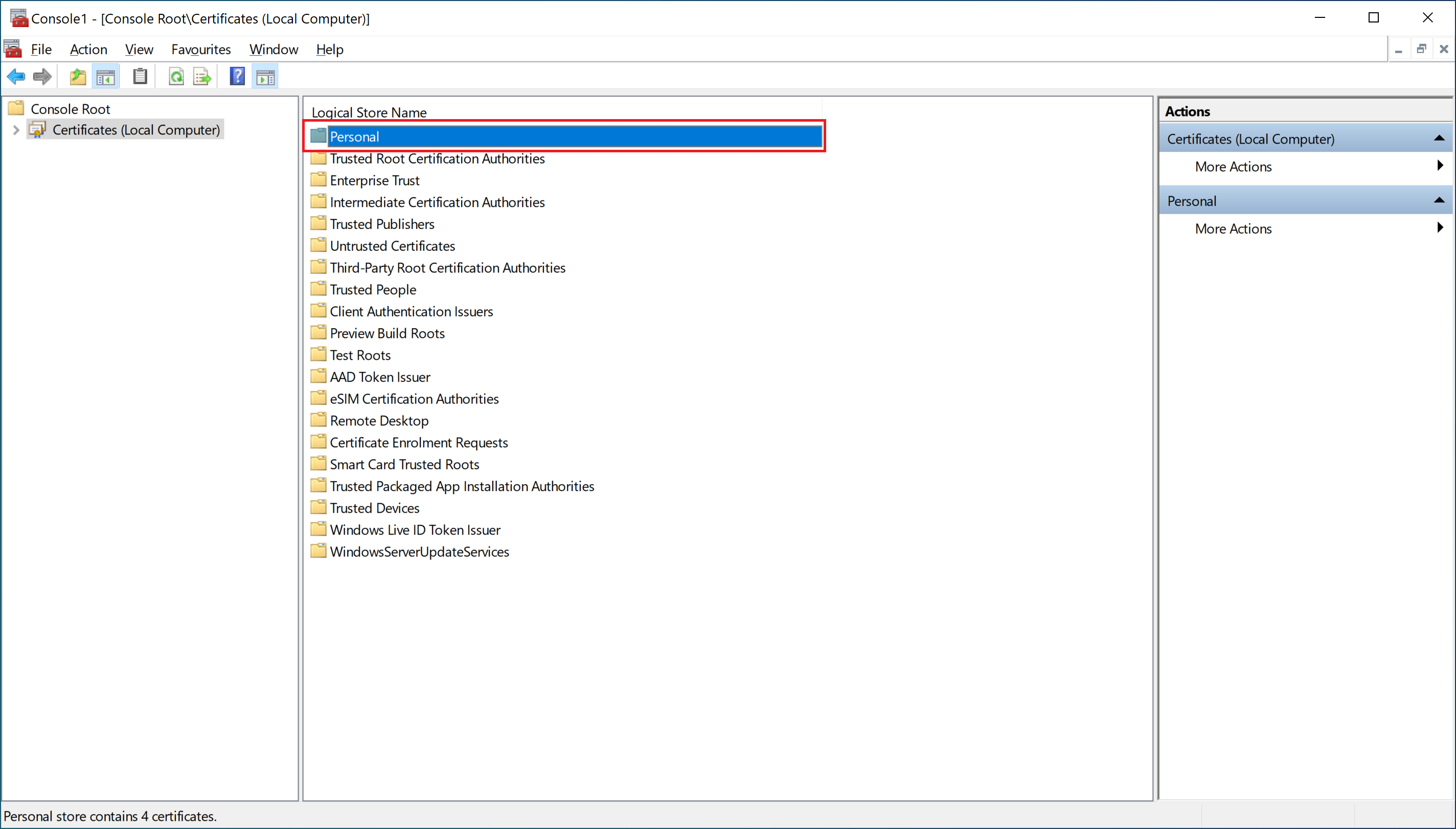

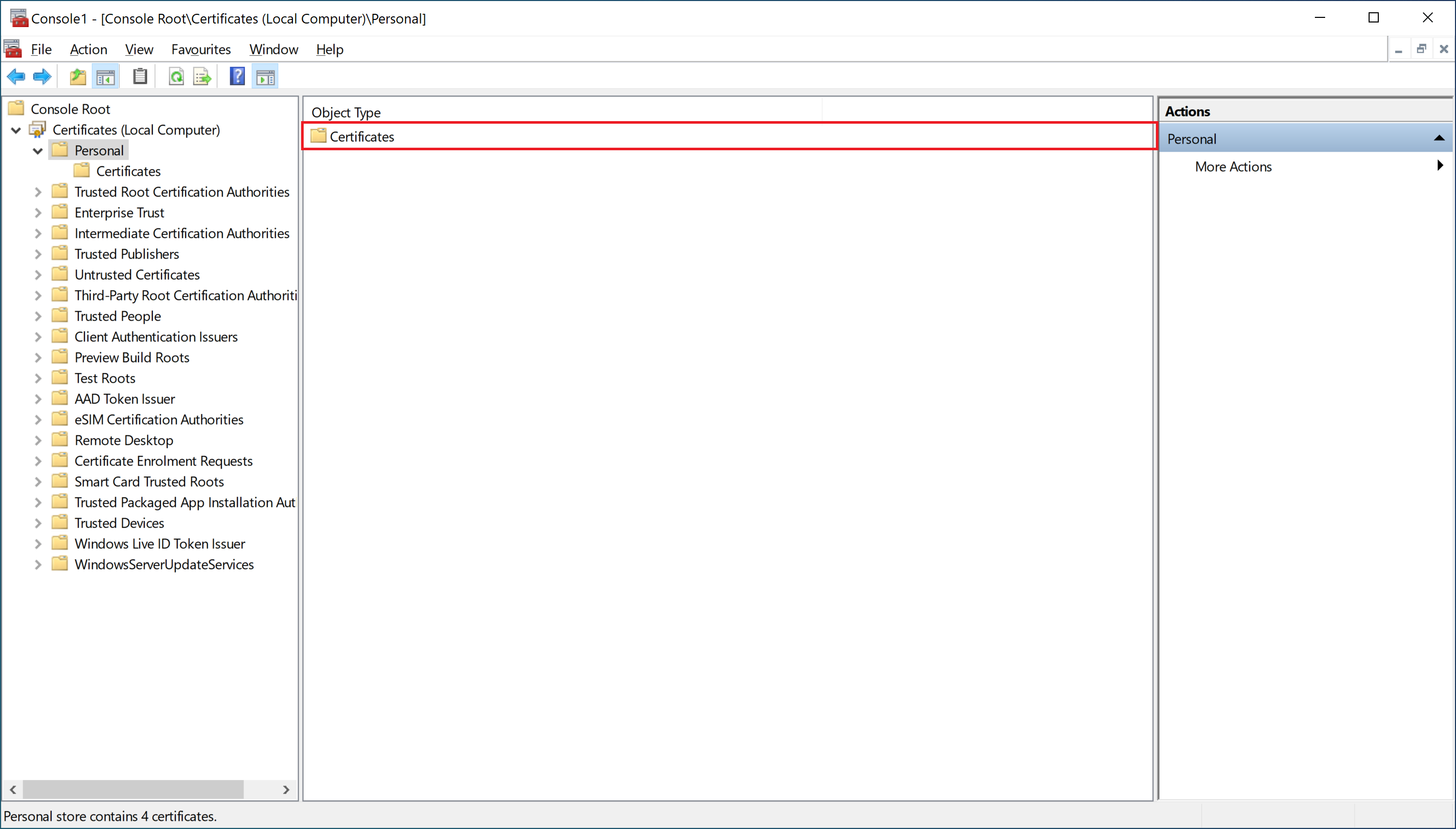

  8. Double-click on Personal.



  9. Double-click on Certificates.

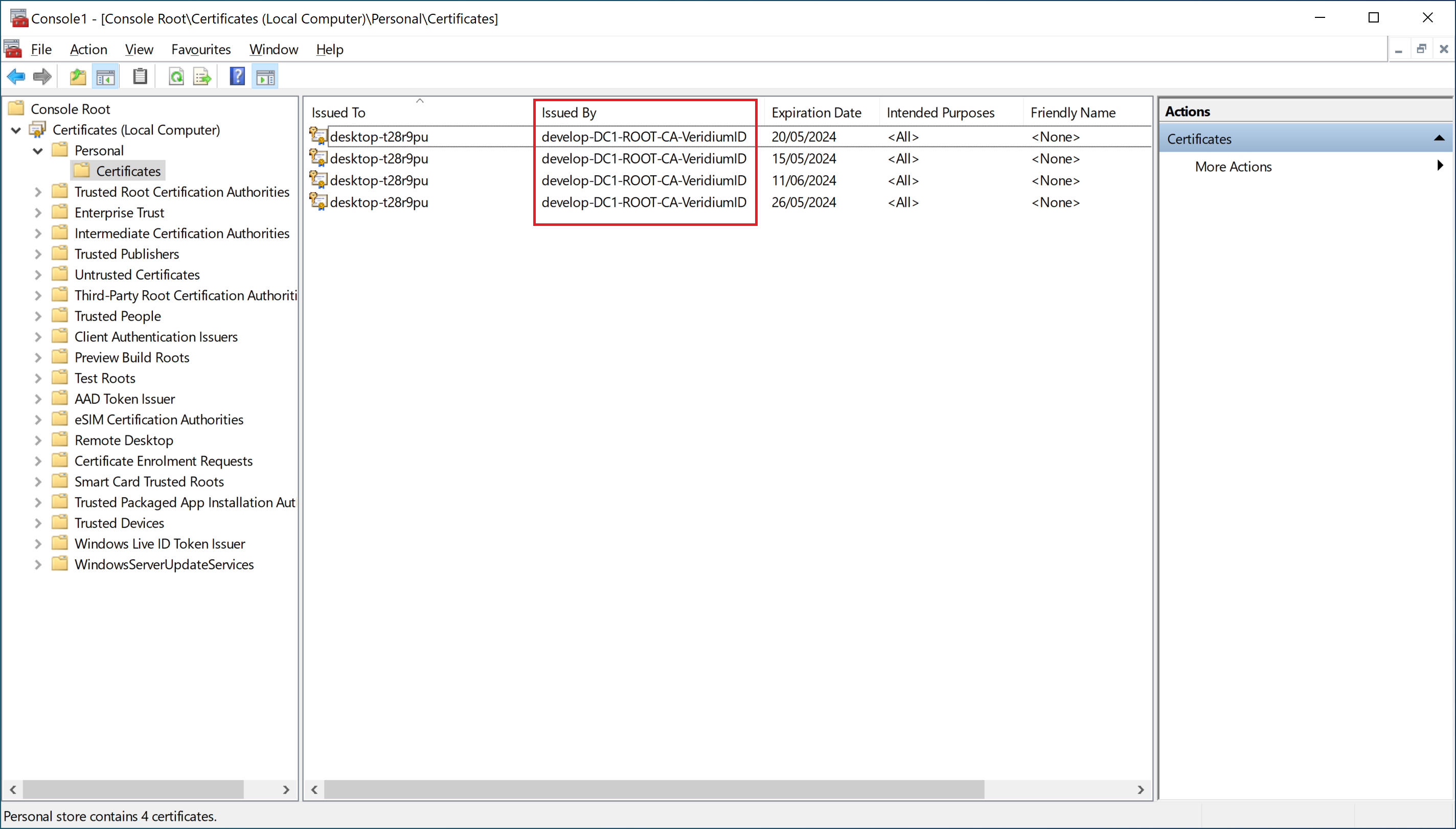

  10. Delete all certificates issued by VeridiumID CA.

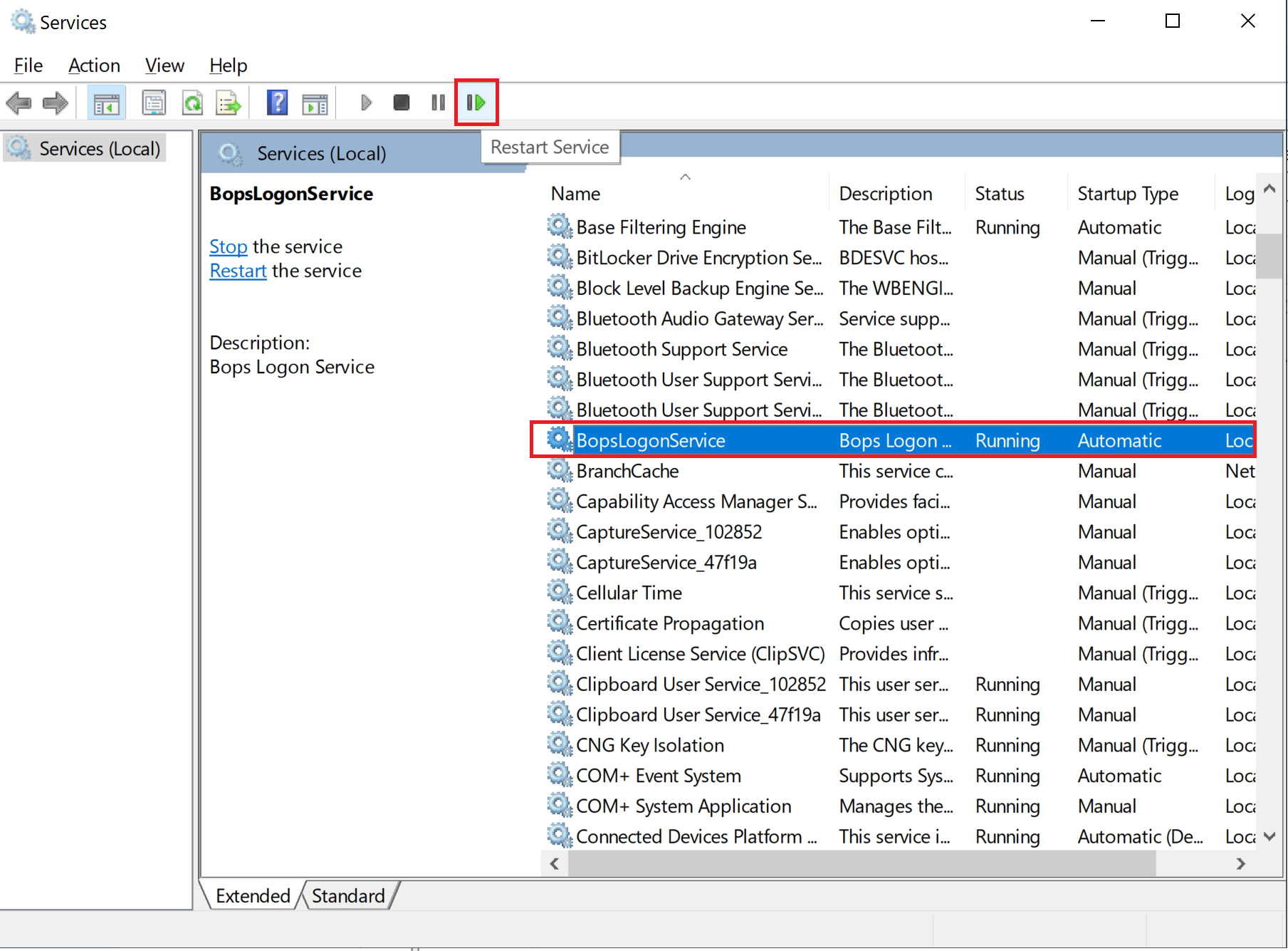

  11. Start Services.

  12. Restart BopsLogonService.



Resolution Verification

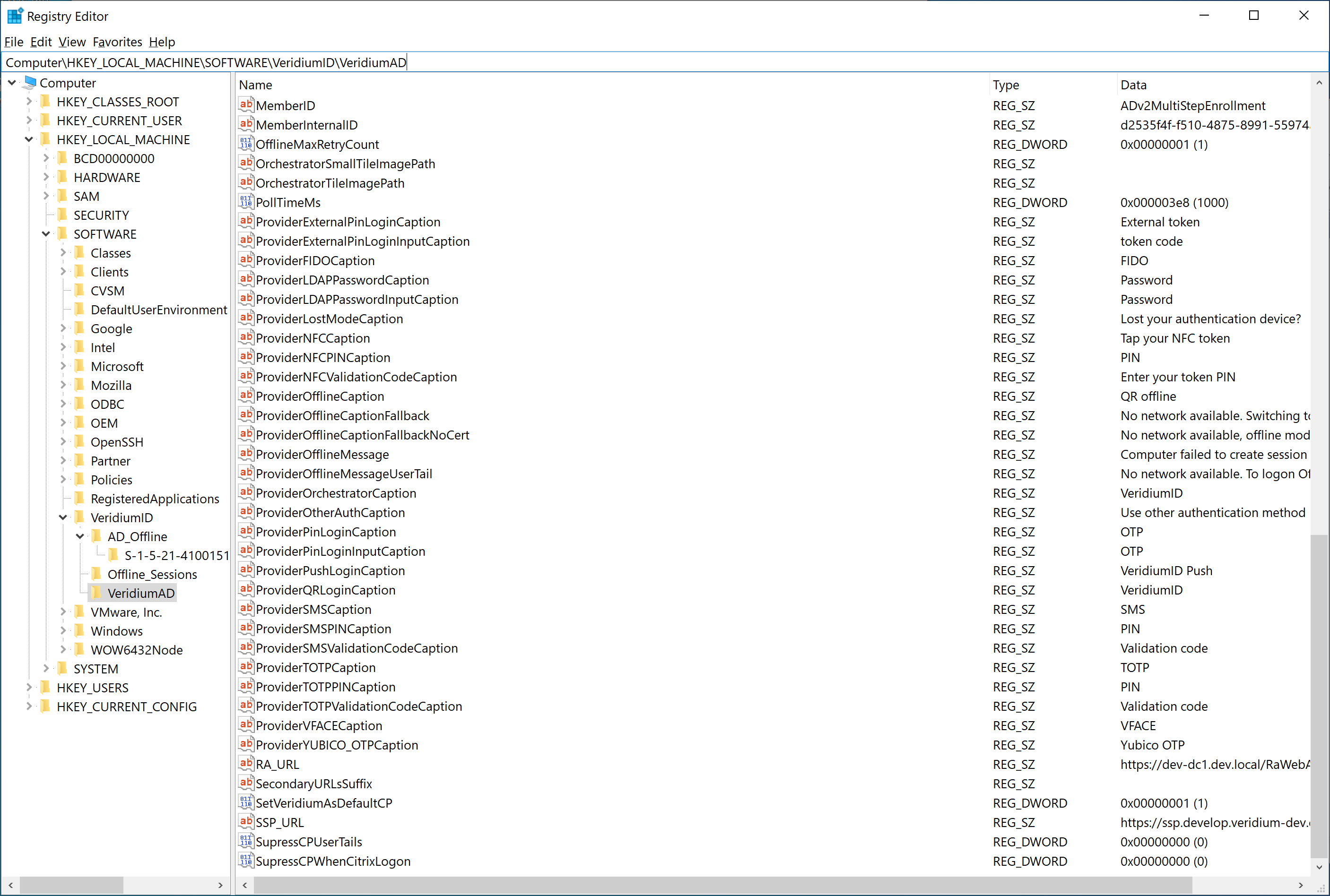

  1. Start Registry Editor.

  2. Navigate to:

    Computer\HKEY_LOCAL_MACHINE\SOFTWARE\VeridiumID\VeridiumAD

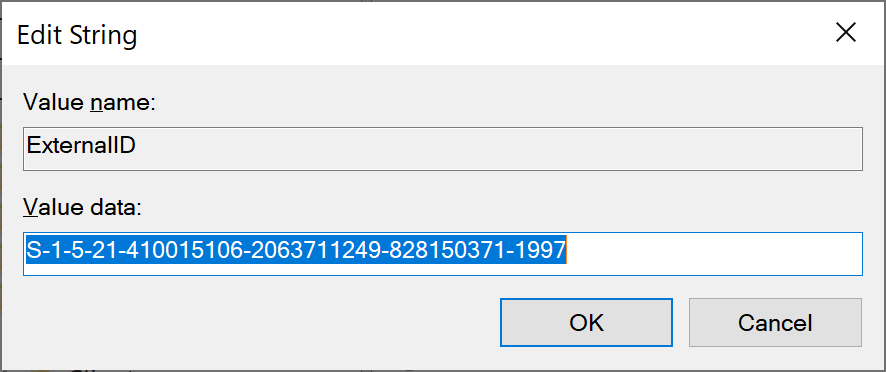

  3. Find a key called “ExternalID“ and there needs to be some value.



  4. To ultimate test please try QR offline again.
