Veridium Manager User Interface
Navigation

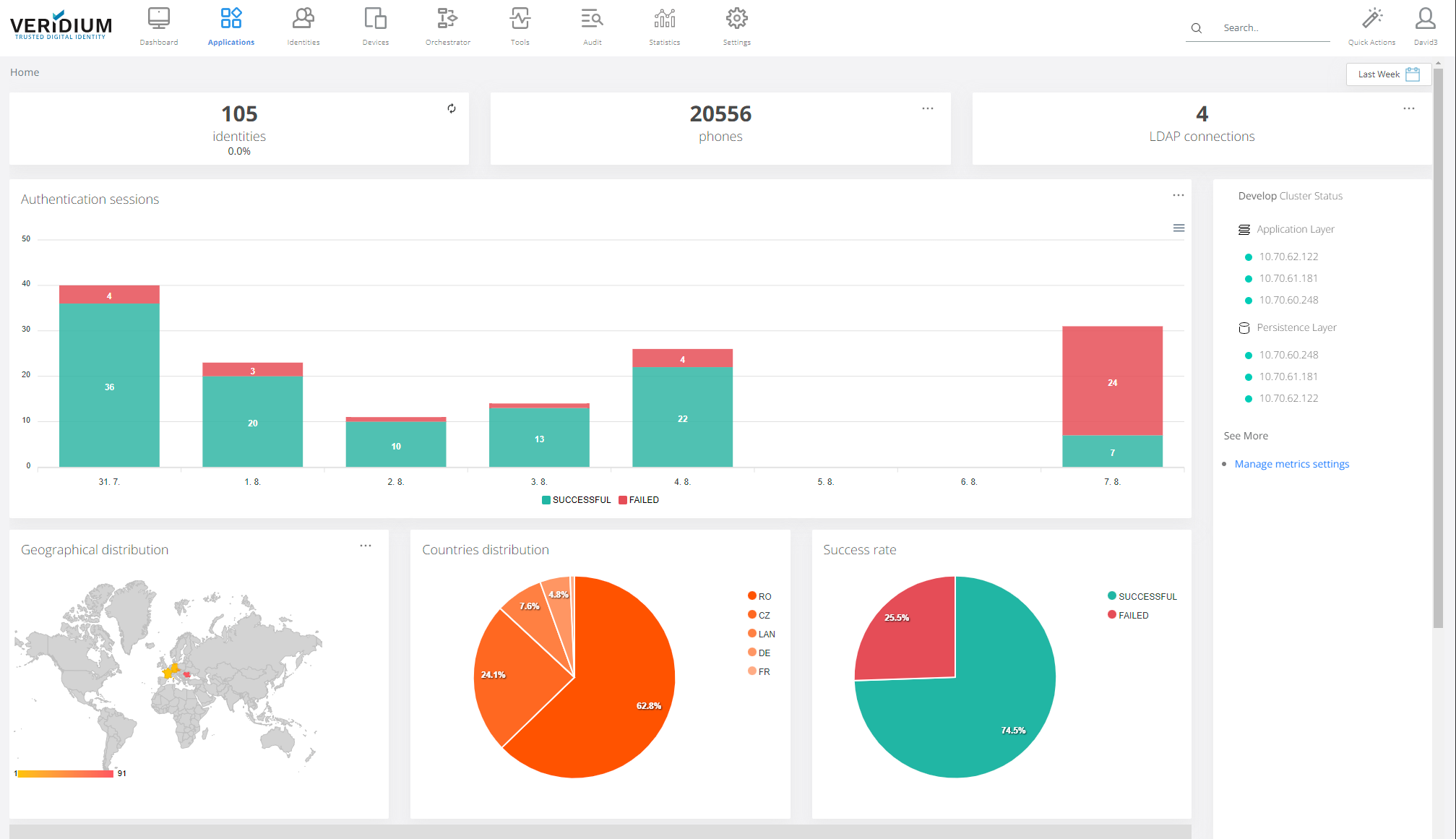

When you logon to Veridium Manager, the home page looks as follows:

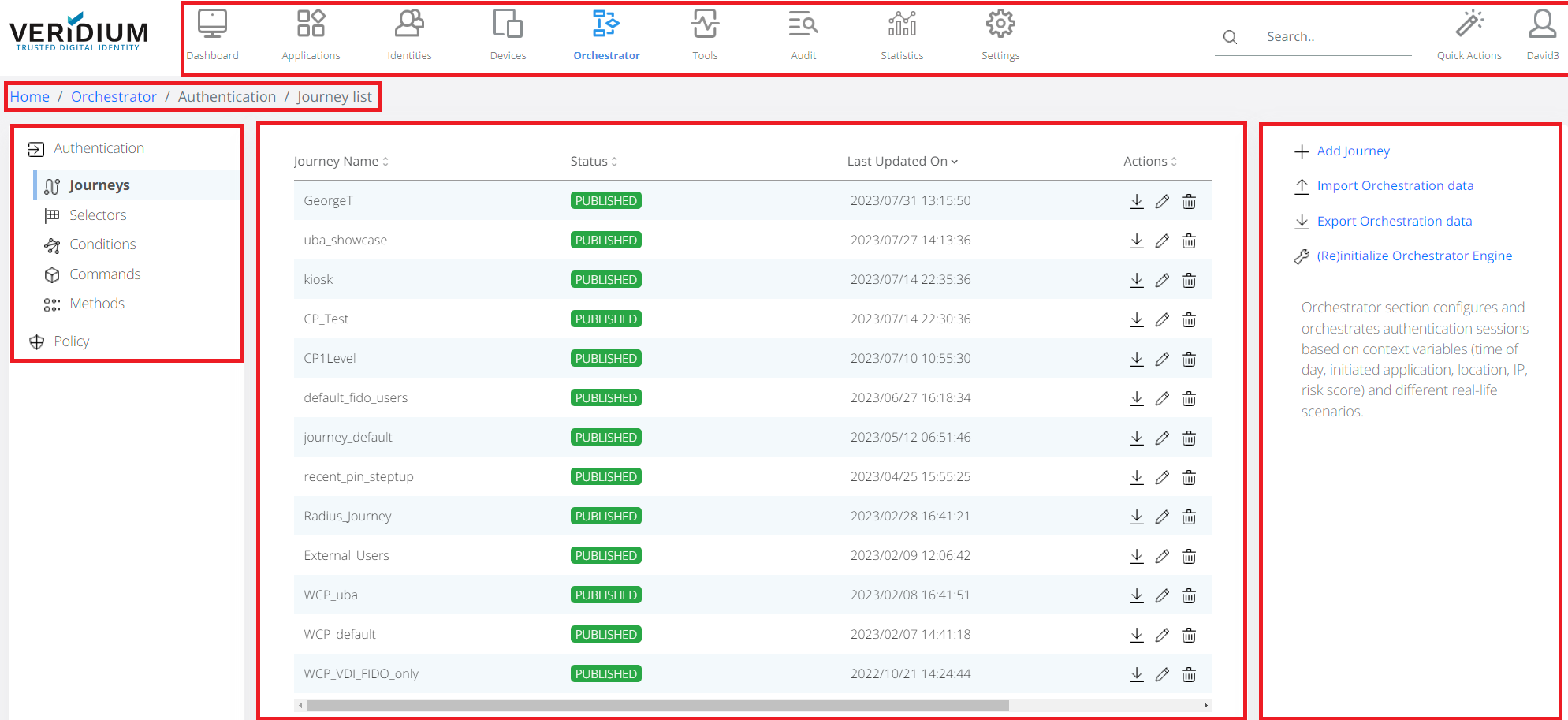

Veridium Manager pages has a following structure:
Top navigation container holds the main navigation topics and will visually indicate the current selection.
Navigation bar indicates the current location within a navigational hierarchy with visual separators between navigation items.
Left-side container holds the second-level navigation items associated with the selected main topic on the top bar.
Right-Side shows actions possible with item selected on main section.

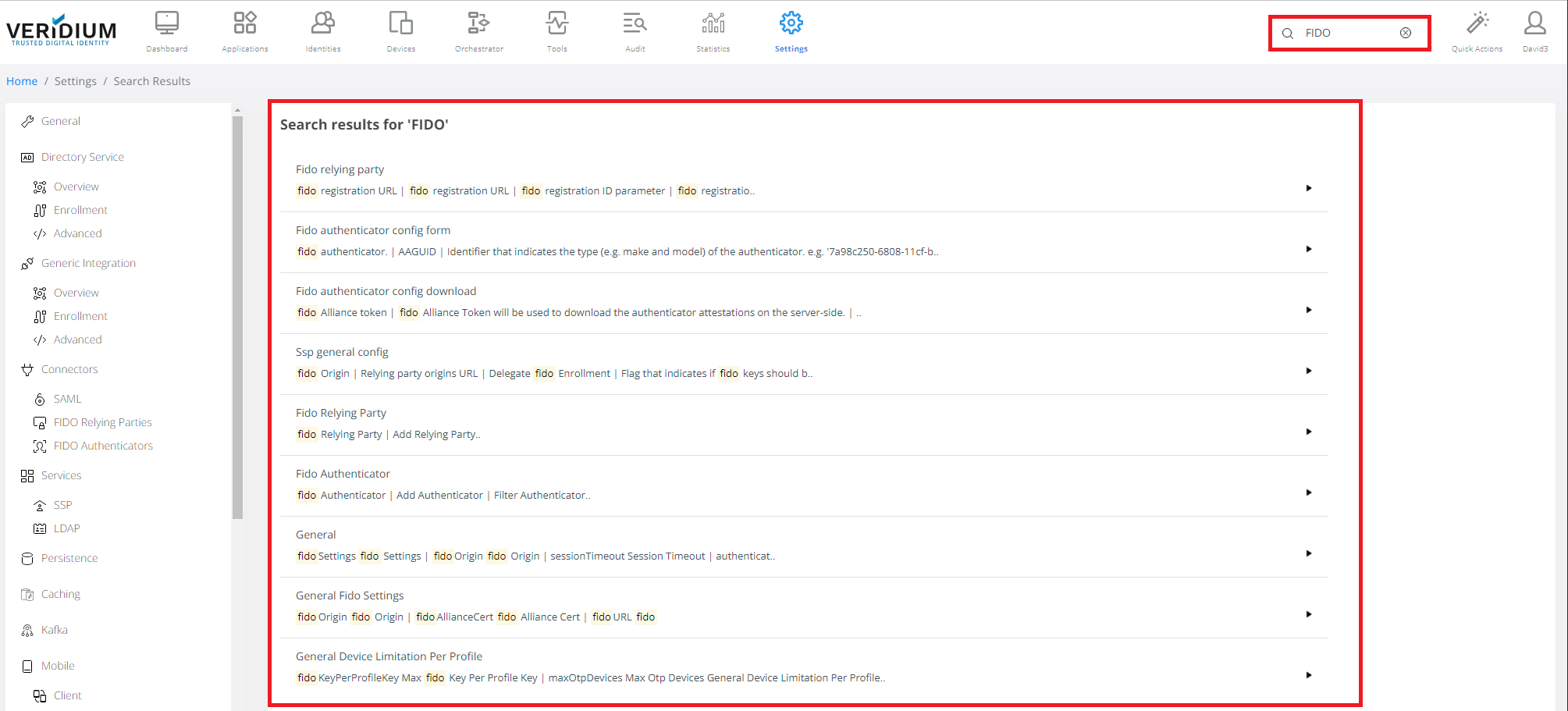

Global search
Another useful tool for easier navigation across the app is the global searching capability. Shown on the top right side of the screen, it will provide relevant results, while user-typing.

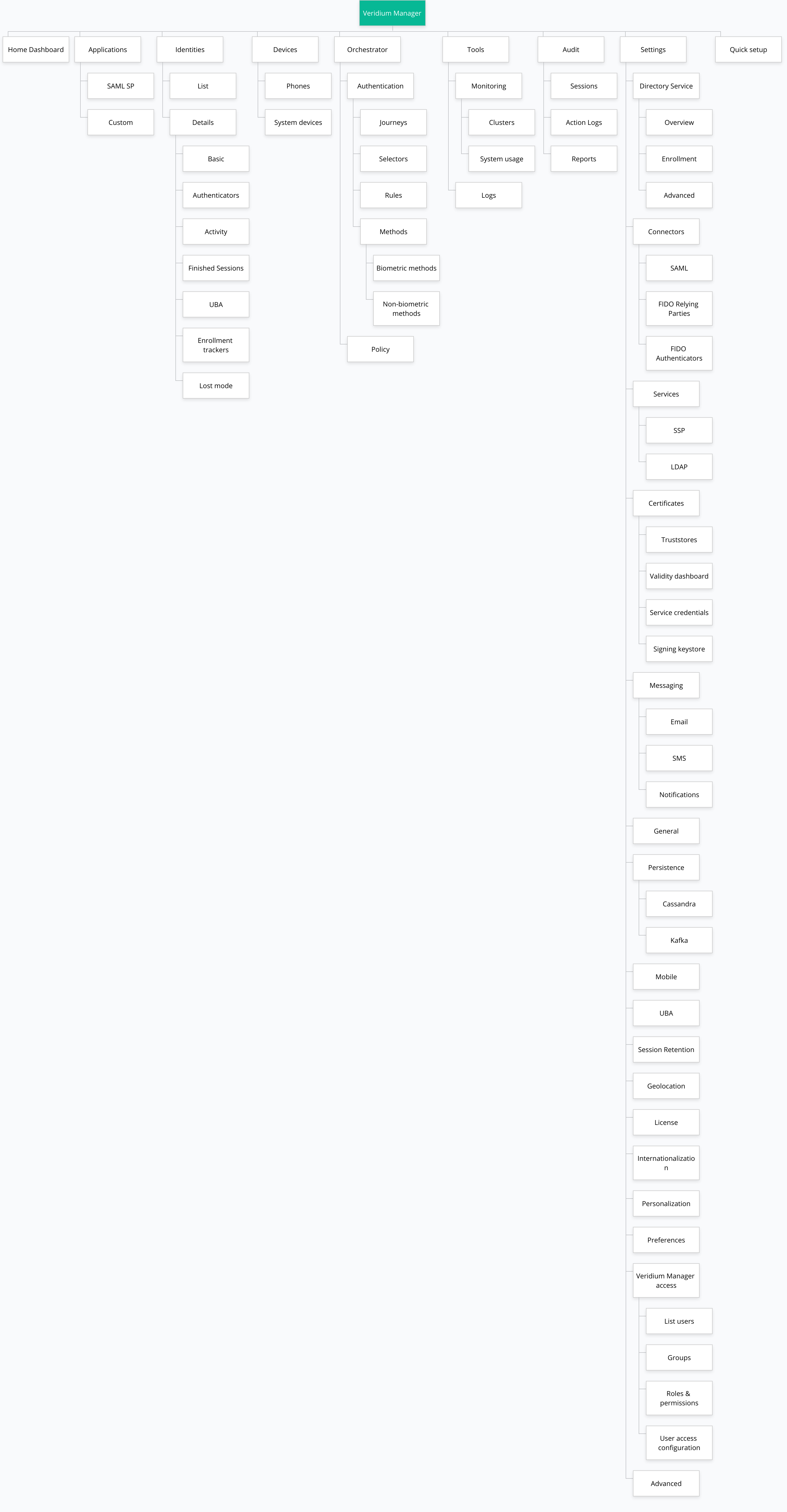

Sitemap
The following diagram illustrates the organization of navigation items in the Veridium Manager application, while also providing a consistent overview regarding Veridium platform concepts:
