MSCHAPv2

Starting public release 3.4 MSCHAPv2 protocol was integrated in the VeridiumID Freeradius module. The module enables support for using PUSH or OTP authentication methods.

Compared to the other protocols (chap or pap), in order to activate PUSH authentication method, the provided user input should be push.

Modes supported:

• MSCHAPv2

• EAP-MSCHAPv2

• PEAP-MSCHAPv2

Configuration

MSCHAP MPPE Policy

The MPPE policy may be configured from the Veridium Manager:

1. Navigate to Settings / Advanced / freeradiusconfig.json

2. Update the mschap_mppe_policy value that uses a bitmask as follows:

   1. The 1st bit controls the MPPE key creation

   2. The 2nd bit controls the Encryption policy (required or optional)

   3. The 3rd bit controls the Encryption methods (allow 128-bit or 56-bit encryption using RC4)

https://www.rfc-editor.org/rfc/rfc2548

MSCHAPv2

This method is configured out of the box starting version 3.4.

The configuration steps listed bellow should only be followed to validate or create a custom configuration.

1. Edit the /opt/veridiumid/freeradius/etc/raddb/sites-enabled/default

2. Remove the mschap from authenticate and authorize sections.

3. Update the Auth-Type MSCHAP block with:


   CODE

   Auth-Type MSCHAP {
     rest_orchestrator
   }

EAP-MSCHAPv2

The steps from MSCHAPv2 configuration are required as prerequisites. Follow the next steps aftwerwards:

1. Edit /opt/veridiumid/freeradius/etc/raddb/mods-enabled/eap and update eap.default_eap_type to mschapv2.

   CODE

   eap {
       ...
       default_eap_type = mschapv2
       ...
   }

PEAP-MSCHAPV2

This method is configured out of the box starting version 3.4, and only certificates in /opt/veridiumid/freeradius/etc/raddb/certs should be updated with valid CA and valid Radius Server certificate.

The steps from MSCHAPv2 configuration are required as prerequisites. Follow the next steps afterwards:

1. Edit /opt/veridiumid/freeradius/etc/raddb/mods-enabled/eap and update eap.default_eap_type to peap and eap.peap.default_eap_type to mschapv2.

   CODE

   eap {
       ...
       default_eap_type = peap
       ...

       peap {
           ...
           default_eap_type = mschapv2
           ...
       }
   }

2. Make sure the certificates are properly configured in /opt/veridiumid/freeradius/etc/raddb/certs/. The default TLS configuration is managed in the /opt/veridiuid/freeradius/etc/raddb/mods-enabled/eap in the tls-config tls-common block.

Optional for specific veridium customers

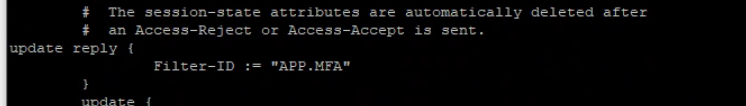

3. /opt/veridiuid/freeradius/etc/raddb/mods-enabled/default introduce attribute filtre based on groups

Radius Authentication method - Orchestration Matrix

The main difference between the other Radius authentication protocols, on MSCHAPv2 we can no longer relay on the password length or format.
