CP - Technical Overview

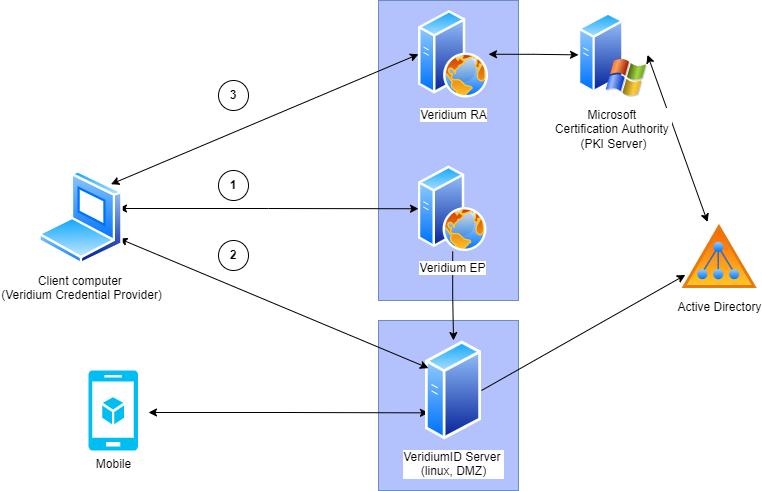

Network communication schema

Windows credential Provider requires following connections:

1. Credential Provider -> VeridiumEP. To test:

   1. Start cmd.exe as administrator

   2. Start CMD in a context of Local computer:


      CODE

      	psexec -i -s cmd.exe


      (psexec might be downloaded here https://learn.microsoft.com/en-us/sysinternals/downloads/psexec
      Execute (in the computer system context):

   3. execute command


      CODE

      whoami


      expected answer is:


      CODE

      nt authority\system

   4. Start browser by following command:
      explorer "<https://<VeridiumEP> Server FQDN>/BopsEnroll/BopsEnroll.svc/Test"

   5. User will be prompted to enter username / password. If so, enter your domain credentials

   6. You will see resulting message "DEV\\milos is logged on."This is a confirmation that Credential Provider can reach Veridium EP server.
      In case you see any error, go to EP server and search for IIS logs. Default path is:
      C:\inetpub\logs\LogFiles\W3SVC1
      Open latest file modified, go to end of the file:
      2022-02-19 17:53:53 W3SVC1 WinSrvMilos2 192.168.3.128 GET /BopsEnroll/BopsEnroll.svc/Test - 443 DEV\milos 192.168.3.128 Mozilla/5.0+… - 200 0 0 110
      The most important is resulting code. 200 0 means all OK.
      There are following codes available: Refer to https://httpstatuses.com/ or https://en.wikipedia.org/wiki/List_of_HTTP_status_codes

2. Credential Provider -> VeridiumID server: test URL:

   1. Start cmd.exe as administrator

   2. Start CMD in a context of Local computer:
      psexec -i -s cmd.exe
      (psexec might be downloaded here https://docs.microsoft.com/en-us/sysinternals/downloads/pstools) Execute (in the computer system context):

   3. Execute command:
      whoami
      expected answer is:
      nt authority\system

   4. Start browser by following command:
      explorer "<https://<VeridiumIS> Server FQDN>/websec/rest/health/metrics"

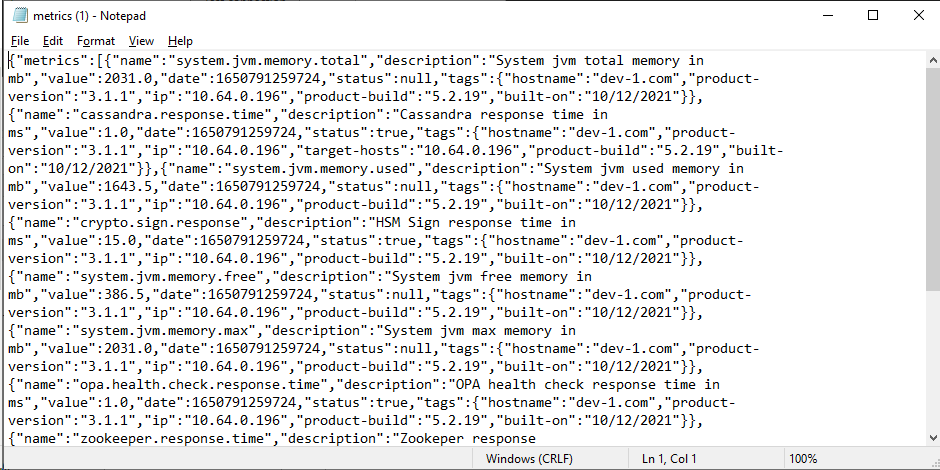

   5. Resulting message contains Metrics information:

3.

   Credential Provider -> VeridiumRA. Test URL is: <https://<RA> server FQDN>/RaWebApp/Status/Default.aspx

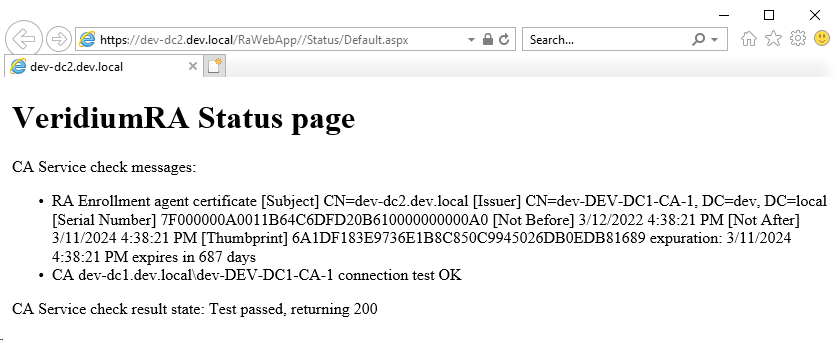

   open new browser window and try URL. Response should look like this:

in case there is not possible to reach VeridiumRA server from client, check Firewall rules, proxy settings, etc.
