Configure Netscaler Layer 7 load balancer for RAEP
The purpose of this document is to provide a procedure for configuring Netscaler as a layer 7 load balancer in front of two Veridium RAEP servers.
Layer7 SSL implementation:
Service | incoming/outgoing port (based on client implementation) | URL based | SSL offload | Assign Client CA / Add Headers | Sticky session | Exposure |
|---|---|---|---|---|---|---|
RAEP | 443 | /BopsEnroll or /RaWebApp | Y | no | no | Intranet |
Define the RAEP servers

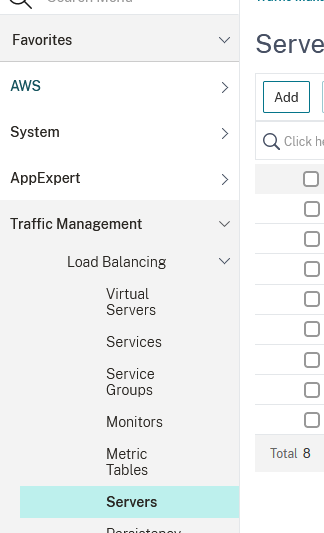

Go to Traffic Management → Load Balancing → Servers and click on Add:

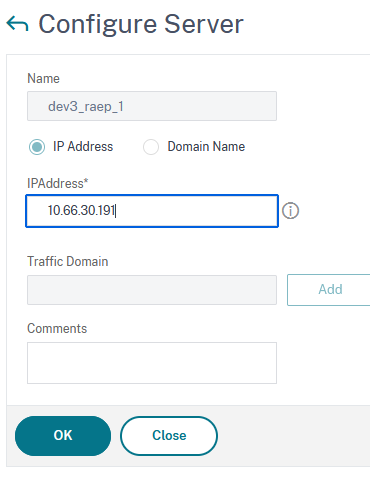

Type in a Name and an IPAddress and click OK to save:
Repeat the previous step for as many servers you want to add.
Define the services you want to add to the balancer

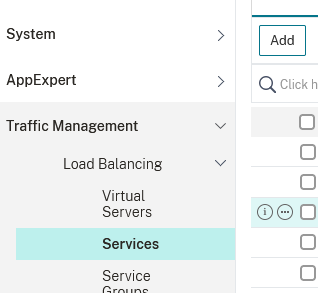

Go to Traffic Management → Load Balancing → Services and click on Add:

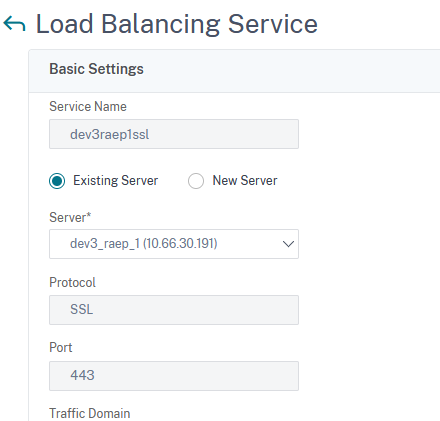

Type in a Service Name, select Existing Server and, from the drop-down list, select one of the servers you previously defined and click on OK:
In the following window click on Done.
Repeat steps 2 and 3 for as many servers you have previously defined.
Define the Load Balancing Virtual Server

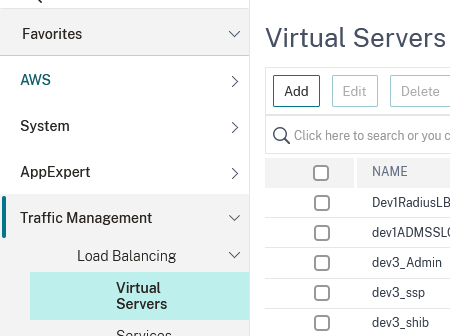

Go to Traffic Management → Load Balancing → Virtual Servers and click on Add:

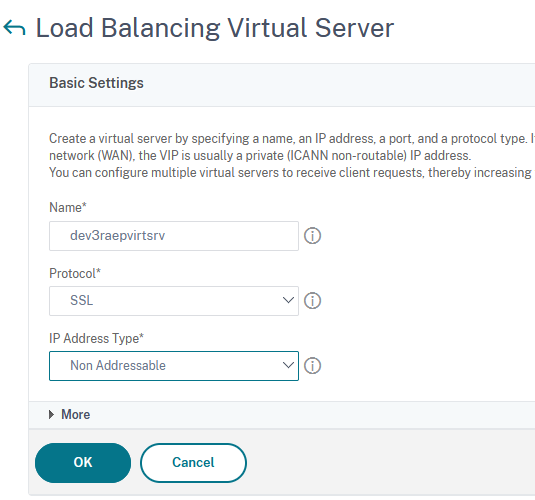

Type in a name, set the Protocol to SSL, and IP Address Type to Non Addressable and click on OK:

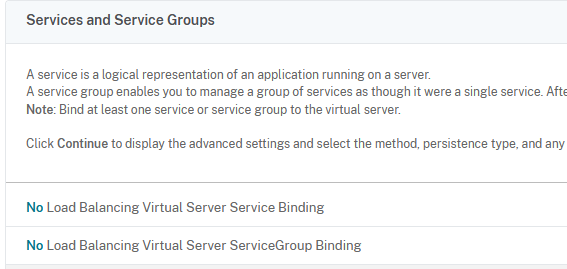

Next click on No Load Balancing Virtual Server Service Binding:

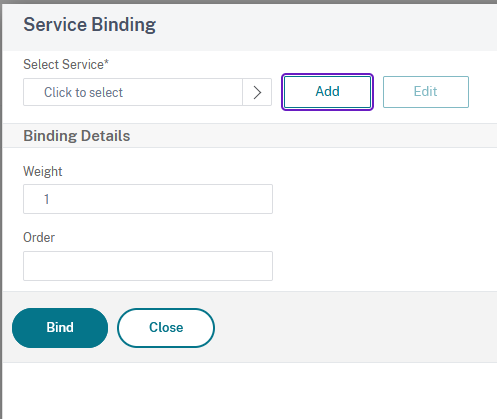

Click on Click to select:

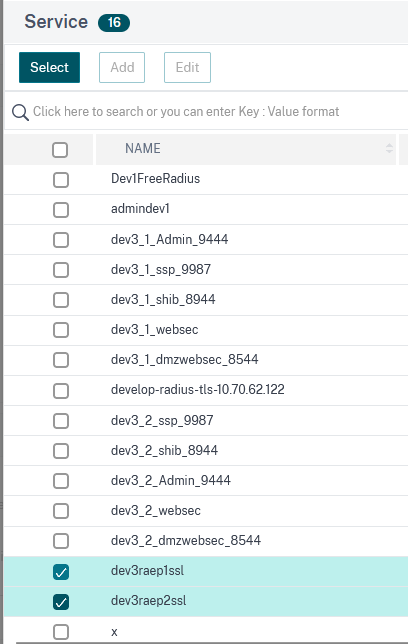

Tick the boxes next to the services you previously defined and click on Select:

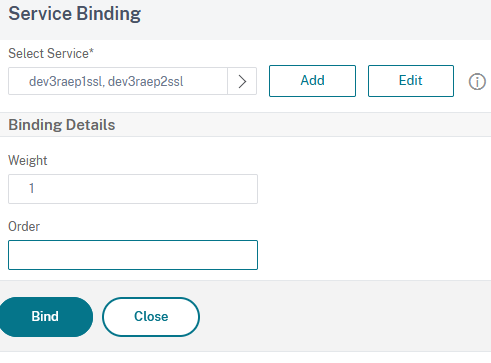

Click on Bind to bind the selected services to the virtual server:

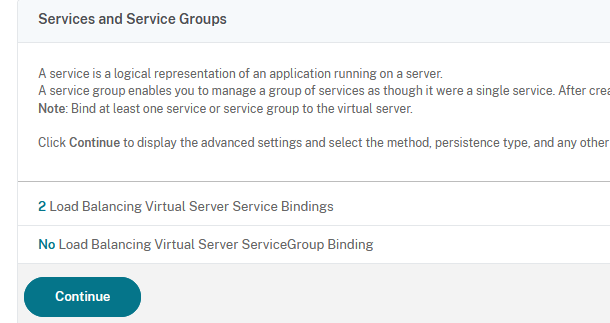

Click on Continue:

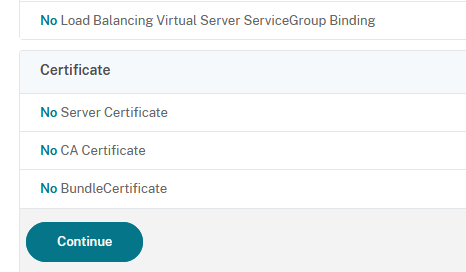

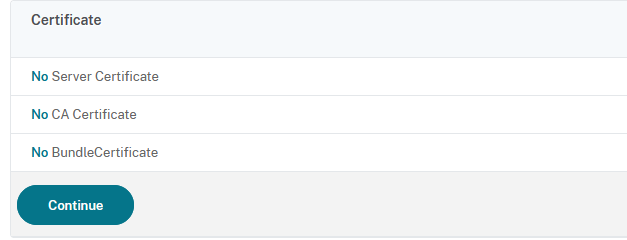

Next we need to bind a certificate to the server. Click on No Server Certificate:

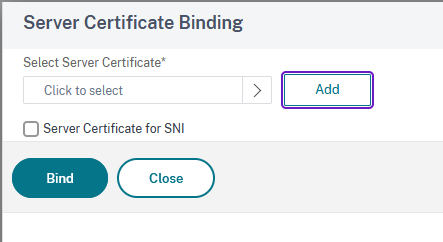

Next, you can either add a new certificate by cliccking on Add or select and existing one, which is what we’ll do, by clicking on Click to select:

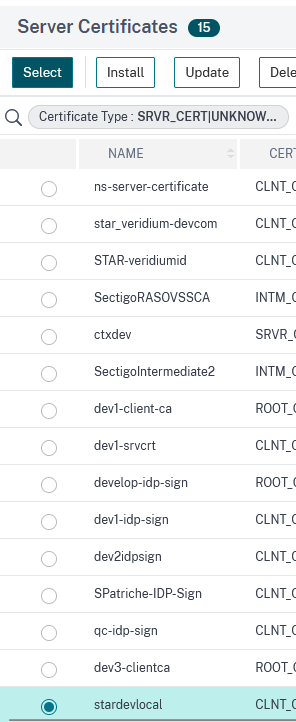

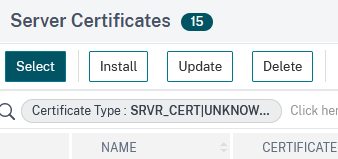

Tick the box next to the desired certificate then click on Select:

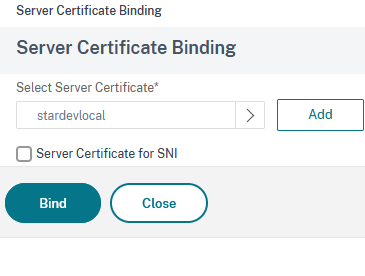

Click on Bind to finish binding the certificate:

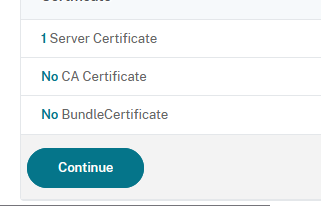

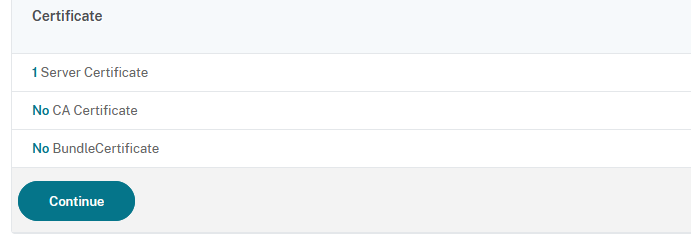

Click on Continue:

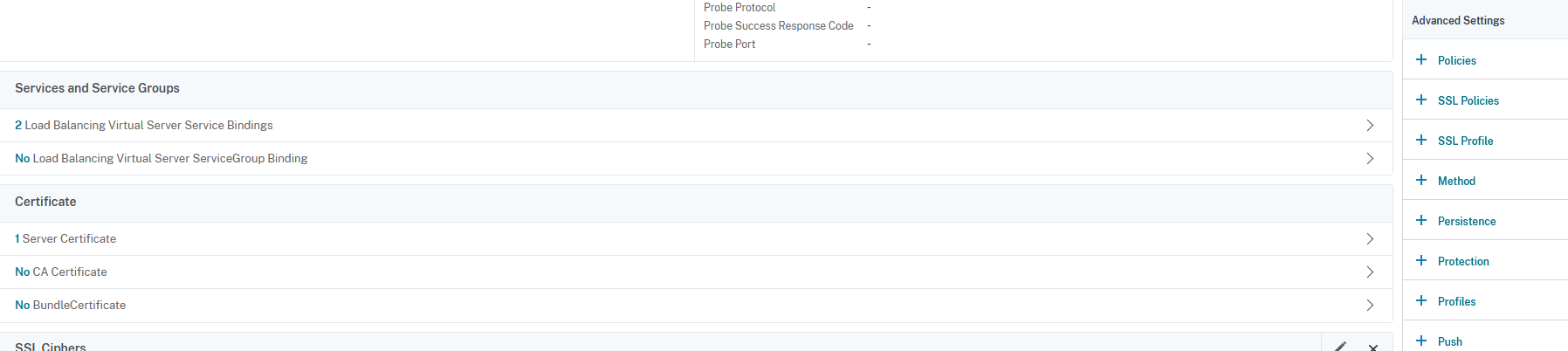

In the next window click on Method:

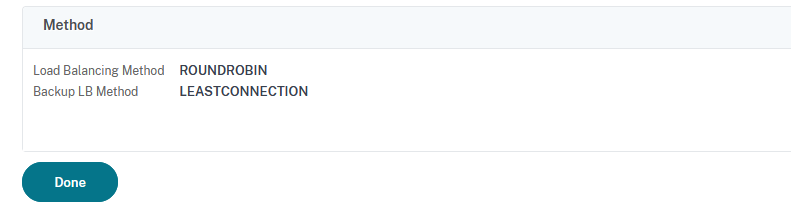

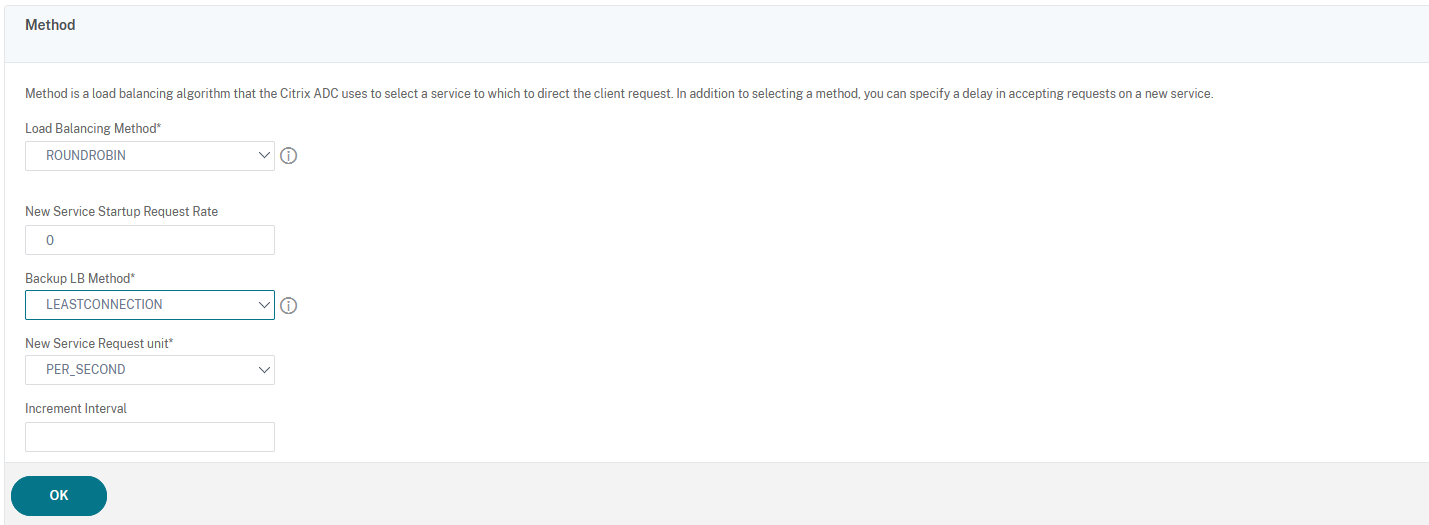

Select ROUNDROBIN as load balancing method and LEASTCONNECTION as backup load balancing method, then click on OK:
Click on Done to finish:
The Content Switching Part
Define the action for the content switching policy

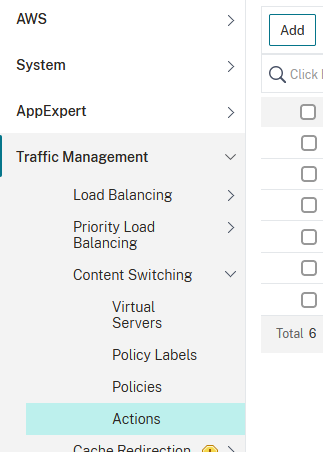

Go to Traffic Management → Content Switching → Actions and click on Add:

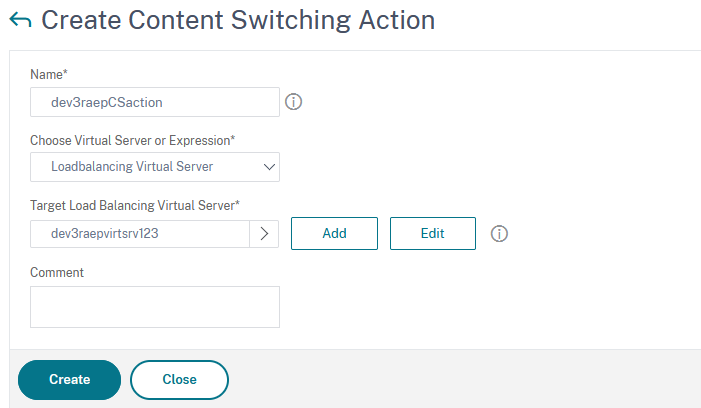

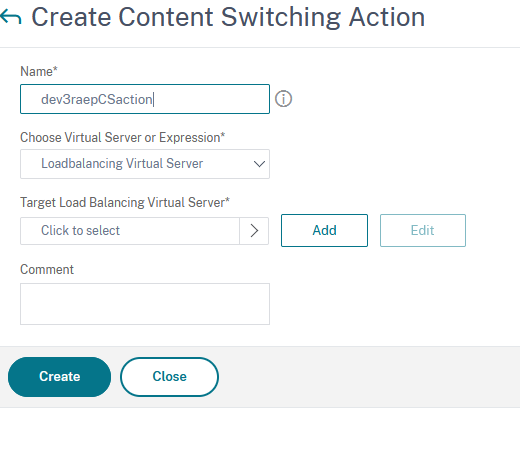

Type in a name, then click on Loadbalancing Virtual Server:

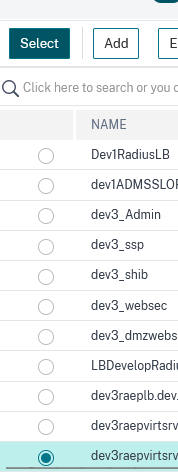

Tick the box next to the previously created virtual server and then click on Select:
Click on Create to finish the creation process:
Define the content switching policy

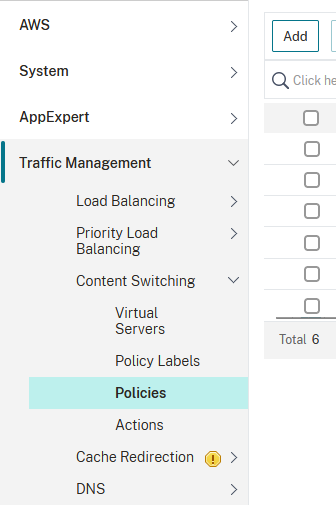

Go to Traffic Management → Content switching → Policies and click on Add:

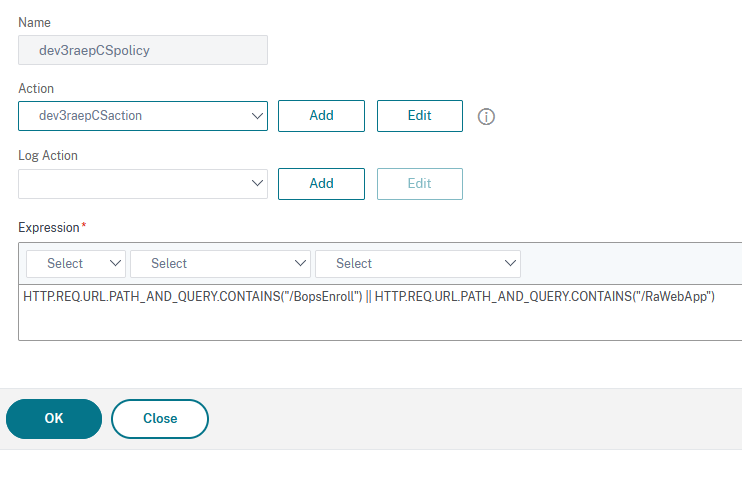

Type in a name, select the previously defined action from the drop-down list in the Action section and type HTTP.REQ.URL.PATH_AND_QUERY.CONTAINS("/BopsEnroll") || HTTP.REQ.URL.PATH_AND_QUERY.CONTAINS("/RaWebApp") in the Expression field:
Click on OK to finish.
Define the Content Switching Virtual Server

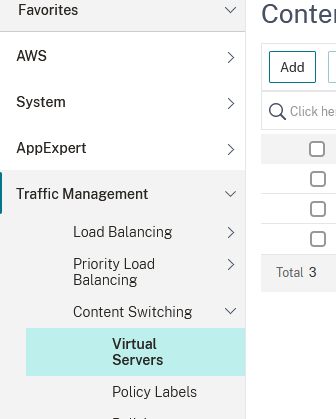

Go to Traffic Management → Content Switching-> Virtual Servers and click on Add:

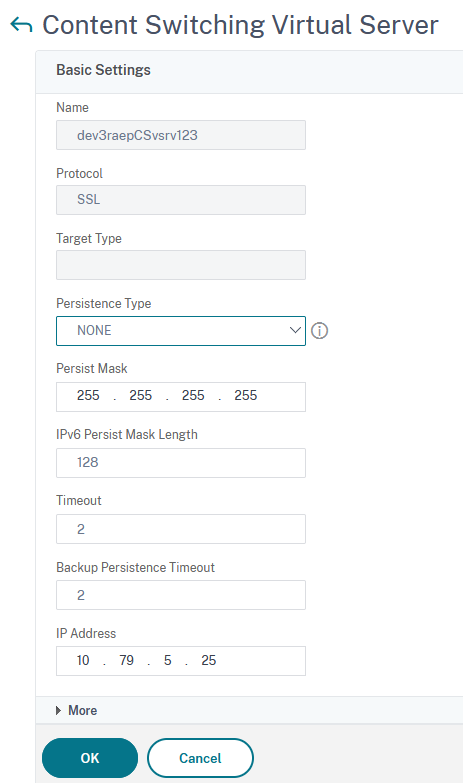

Type in a name, set the protocol to SSL, persistence type to NONE, IP Address Type to IP Address, fill in an ip address and set the port to 443:
Click on OK then to continue.

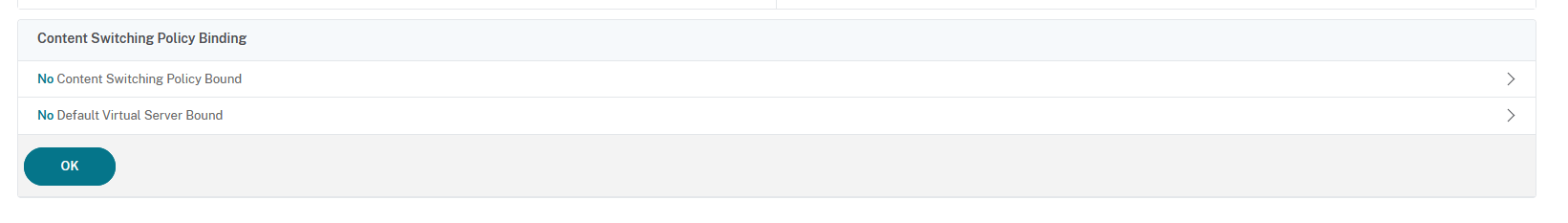

Next click on No Content Switching Policy Bound:

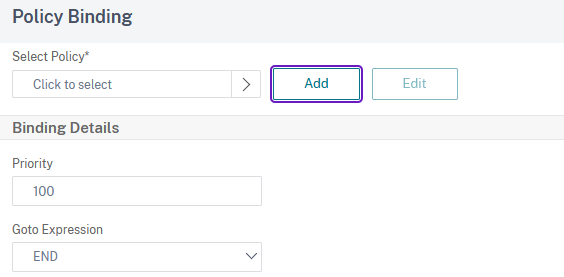

Click on Click to select:

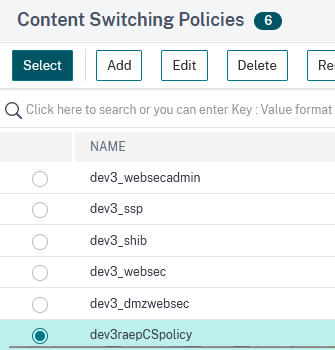

Tick the box next to the previously created content policy, then click on Select to choose it:

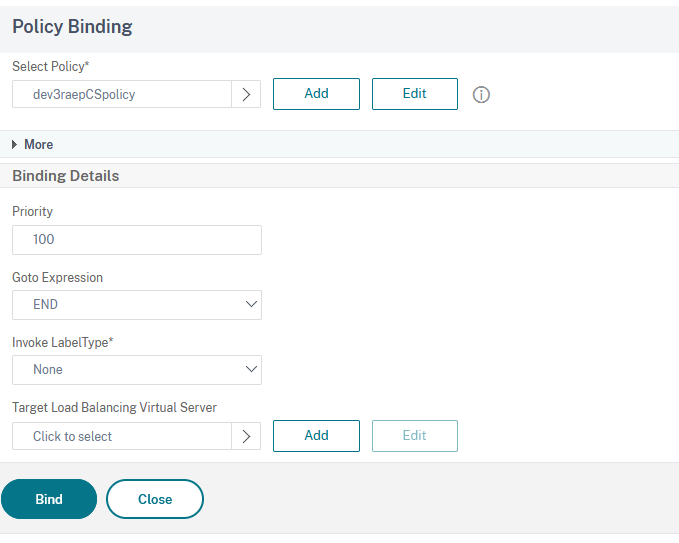

Click in Bind:

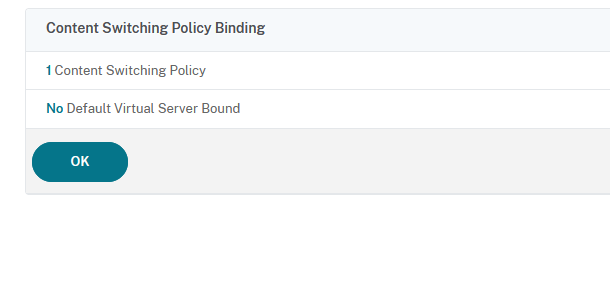

In the next window click on OK:

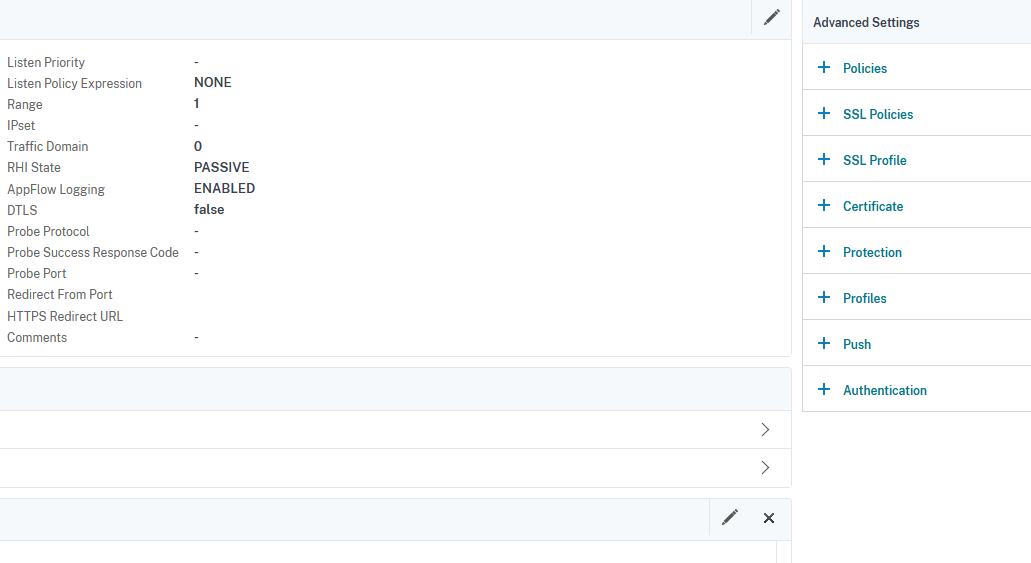

In the next window click on Certificate:
Click on No Server Certificate:

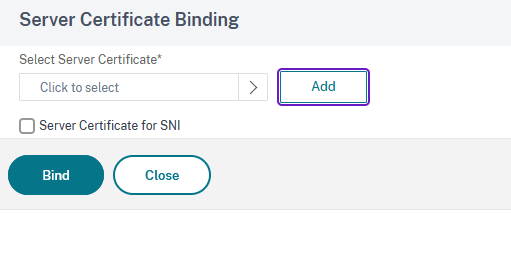

Tap on Click to select:
Choose the certificate you’ve used in the creation of Load balancing virtual server and then click on Select:

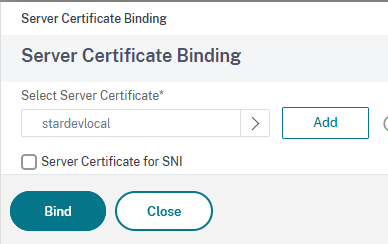

In the next window, click on Bind:
Next click on Continue:

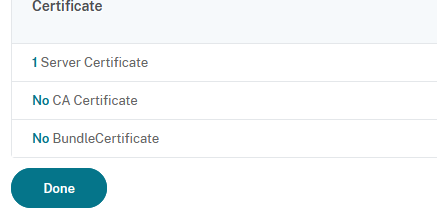

Finally, click on Done:
