RAEP - Integration with EJBCA

Veridium RA allows integration with EJBCA since version 3.6.1.

EJBCA integration configuration consists from following components:

Configuration on Veridium RA needs to be done manually on

CODE
C:\Program Files\VeridiumID\RAEPServer\RaWebApp\web.config

The following custom attributes are required to integrate with EJBCA:

Key

Description

bopsRootURL

VeridiumID server base root URL

friendCertificateThumbprint

Thumbprint of VeridiumID Friend certificate

CAType

for EJBCA needs to be set to "KeyFactor"

KeyFactorCAURL

Base URL of EJBCA.

KeyFactorAuthenticationThumbprint

Certificate thumbprint of KeyFactor CA. Certificate needs to be available in Local Computer context.

KeyFactorCertificateProfileName

EJBCA Certificate Profile name

KeyFactorEndEntityProfileName

EJBCA End Entity Profile name

UserCertKeyName

Friendly name of resulting User cert

KeyFactorCAName

EJBCA Certification Authority name

KeyFactor_Subject_O

Organization of resulting user certificate DN

KeyFactor_Subject_C

Country of resulting user certificate DN

jwtSigningKey

Base64 Signing certificate..

Example of the values:

CODE
<add key="bopsRootURL" value="https://dev1.veridium-dev.com/websec" />
<add key="friendCertificateThumbprint" value="3AADD530CCBB14B258F9AD204E96DE4D547F595" />
<add key="CAType" value="KeyFactor" />
<add key="KeyFactorCAURL" value="https://ejbca.dev.local:8443" />
<add key="KeyFactorAuthenticationThumbprint" value="3fc34dd3413006bde2c5bb5fdc2814e42fbdb2a7" />
<add key="KeyFactorCertificateProfileName" value="VERIDIUMMS" />
<add key="KeyFactorEndEntityProfileName" value="MSSmartCardLogon" />
<add key="UserCertKeyName" value="VeridiumUser" />
<add key="KeyFactorCAName" value="MSVeridiumCA" />
<add key="KeyFactor_Subject_O" value="Veridium" />
<add key="KeyFactor_Subject_C" value="COM" />

Configuration verification

For testing set valid UPN of user to the follwing key:

CODE
<add key="SelfServiceUPN" value="username@dev.local" />

and call following URL in the browser: https://<RA server FQDN>/RaWebApp/api/BopsCertificate/

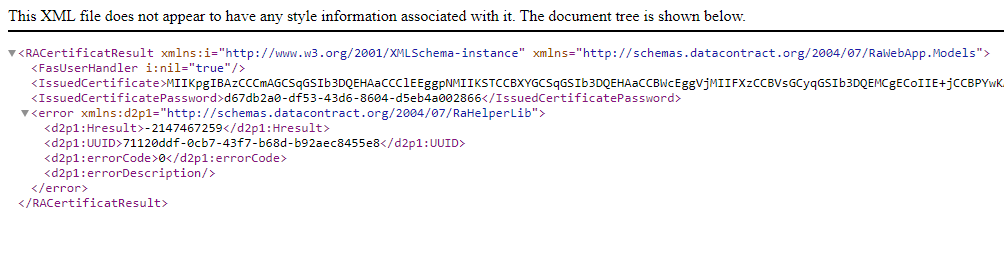

and the following answer is expected:
