On-prem deployment using VeridiumInstaller (RHEL9 - 11.0.39)
The following procedure will describe how to deploy VeridiumID on RedHat 9 using the VeridiumInstaller.
1) Pre-requirements
1.1) OS level requirements
All nodes need to have firewall stoped : run with sudo : systemctl stop firewalld
All nodes used in the deployment procedure will need to have the same user name that needs to:
Have SSH connectivity to all nodes using SSH keys
## generate key (can be generated on all servers)
ssh-keygen
## take the key (id_rsa.pub) from on server, from where the installation will take place, and put it on all other servers (including himself) in .ssh/authorized_keys
cat .ssh/id_rsa.pub
vi .ssh/authorized_keys
## paste at the end the key
Sudo permissions (at least until the end of the deployment)
1.2) Pre-required RPMs
The following list of packages must be installed from official repositories on all nodes in order to be able to use VeridiumID, the following command can be run as root or an username with sudo:
sudo yum -y install vim apr-devel openssl-devel libstdc++-devel curl unzip wget zlib zlib-devel nc openssh-clients perl rsync chrony python3 python3-pip net-tools dialog jq rng-tools tmux tcpdump
Install Java 11 and check python version, using the following command as root or an username with sudo:
sudo yum -y install java-11-openjdk
##set default java to be java-11 on all machines
JAVA_VERS=`ls /usr/lib/jvm | grep "^java-11-openjdk-11" | tr -d [:space:]` && sudo alternatives --set java "/usr/lib/jvm/${JAVA_VERS}/bin/java"
##check java version, that is 11
java -version
##output example: openjdk version "11.0.22" 2024-01-16 LTS
python3 --version
##if version is not Python 3.9.X, please run the the following command and select python version 3.9.X
sudo alternatives --config python3
## it still the version is not correct, please run the following:
sudo ln -sf /usr/bin/python3.9 /usr/local/bin/python3
On RedHat to activate the official repositories, the nodes will need to subscribe. Please use the following command as root:
sudo subscription-manager register --username <username> --password <password> --auto-attach
2) Deployment steps
2.1) Getting the VeridiumInstaller archive on the node
Using SCP copy the VeridiumInstaller archive to the home directory of the user previously mentioned on the node from where the installation will be started and unarchive the file.
tar xvf veridium-installer-rhel9-x.x.x.tar.gz
2.2) Run Pre-requirements checks, to check if components are installed
Run the script with the user that created the keys. This needs to be executed on one machine by providing the internal IP addresses of all nodes that will be part of the deployment.
./check_prereqs_rhel9.sh -r -w IP1,IP2 -p IP3,IP4,IP5
2.3) Running the pre-reqs script to install required packages
From the current directory simply run the pre-reqs-rhel9.sh script (without providing any parameter).
./pre-reqs-rhel9.sh
The pre-reqs-rhel9.sh script will do the following:
check the SSH connectivity from the current node to all nodes provided in the list
install all packages required
install Python 3.9 and all its required modules
install the VeridiumID layout including the veridiumid user (which will be used further in the installation)
configure SSH connectivity and sudo permissions for the veridiumid user (both can be removed after the installation has been completed)
move all installation packages to veridiumid user’s home directory (/home/veridiumid)
check if all nodes have dates synced using an NTP server
Please configure chrony with your local NTP server, so there will be no issues with the time.
sudo vi /etc/chrony.conf
sudo systemctl status chronyd
sudo systemctl enable chronyd; sudo systemctl start chronyd
date
sudo chronyc -a sources
## check also if localzone is defined fine
timedatectl
## also set timedate zone
timedatectl list-timezones | grep Bucharest
## sudo timedatectl set-timezone Europe/Berlin
##Also, if the instalation is done in /u01, the following needs to be executed; this is for specific clients, with different defualt user home.
##sudo semanage fcontext -a -e /home /u01/users
##sudo restorecon -vR /u01/users
2.4) Run the VeridiumInstaller
All further steps will be performed using the veridiumid user and from the user’s home directory (/home/veridiumid).
2.4.1) Running the VeridiumInstaller script
Run the following script as veridiumid user to start the configuration of VeridiumID:
./veridium-installer-rhel9.sh
This script will start the installation and Configuration of the VeridiumID deployment and guide the user through the installation wizard. PLEASE read carefully the following information:
###########################
1. If you want to use one domain, set both INTERNAL and EXTERNAL domain with the same value.
2. if you choose ports, then the following entries are necessary in your DNS:
## INTERNAL SANs: veridium.client.local
## EXTRENAL SANs: veridium.client.com
3. if you choose FQDN, then the following entries are necessary in your DNS:
## INTERNAL SANs: admin-veridium.client.local, ssp-veridium.client.local, shib-veridium.client.local, veridium.client.local
## EXTRENAL SANs: ssp-veridium.client.com, ssp-veridium.client.com, dmz-veridium.client.com, veridium.client.com
2.4.2) Provide deployment details using the Installation Wizard

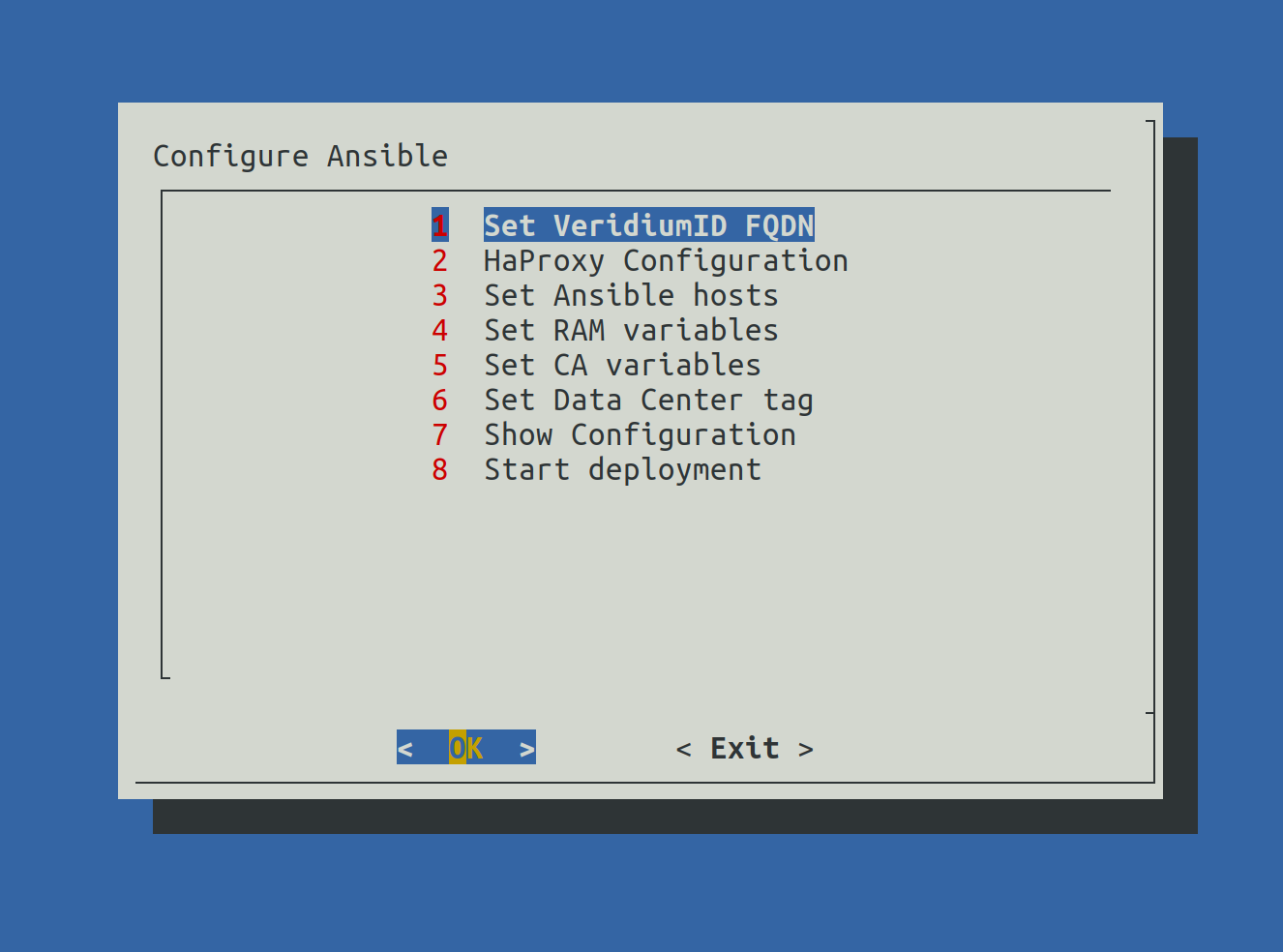

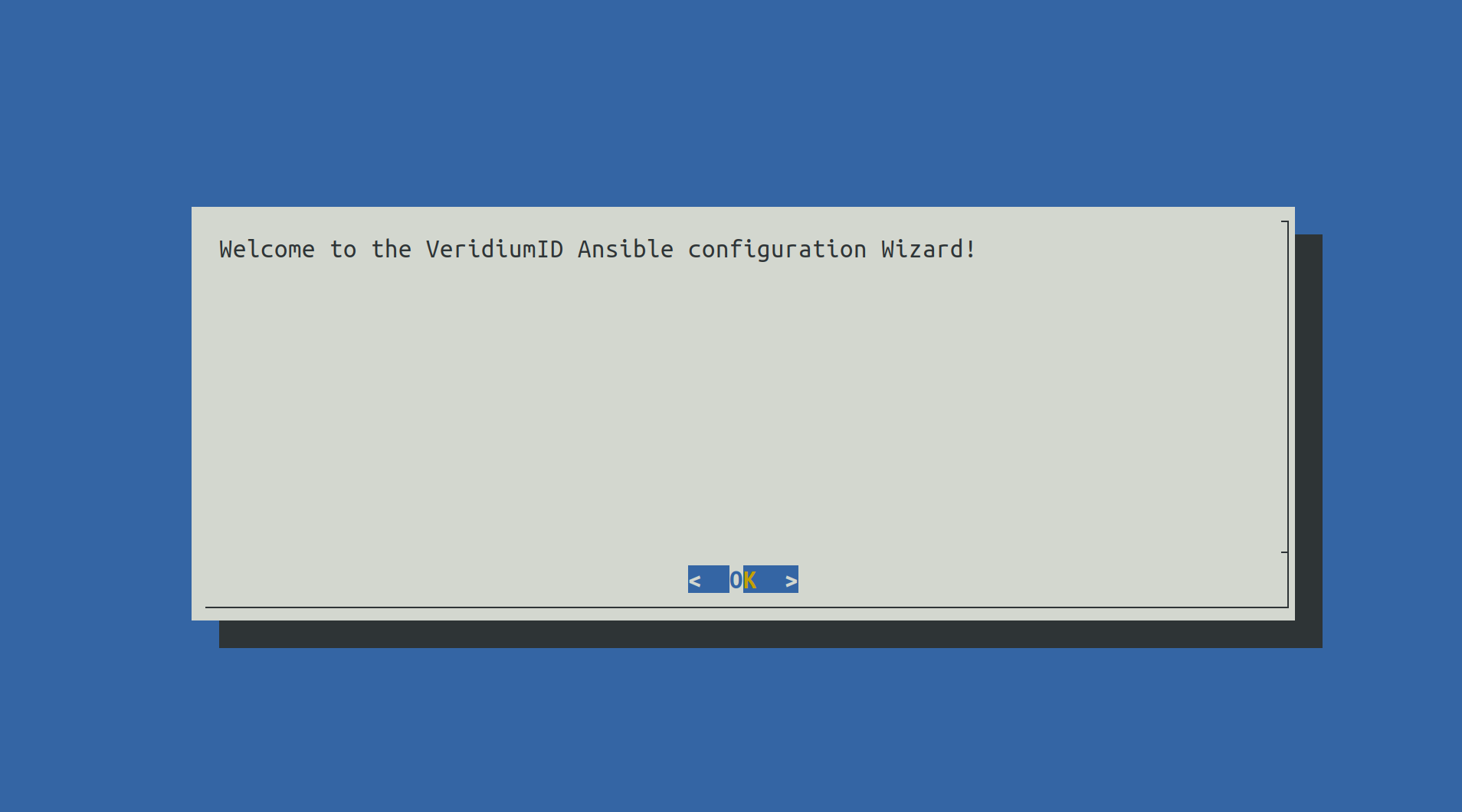

When the installation wizard will start the following screen will be seen in the terminal:
Press Enter to proceed.
All steps from the Menu will be detailed in the following steps.
2.4.2.1) Set VeridiumID FQDN - First time INTERNAL and second time EXTERNAL

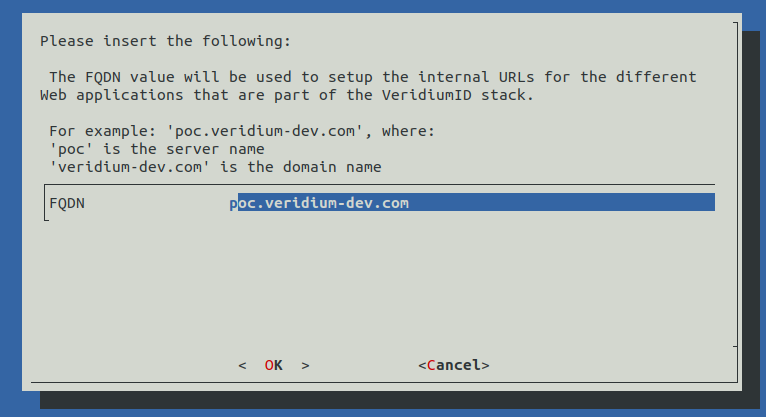

When selecting Set VeridiumID FQDN the following screen will be shown:
Write the correct INTERNAL FQDN in place of poc.veridium-dev.com and press the TAB key to go to OK and press Enter to continue.

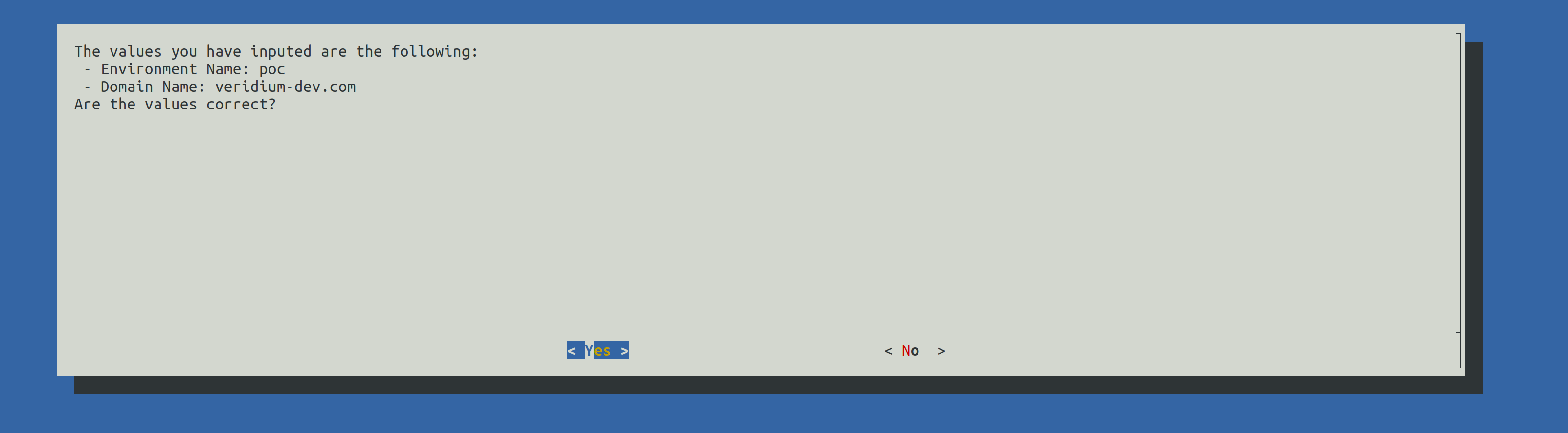

A validation of the FQDN will be prompted. Press Enter to continue.

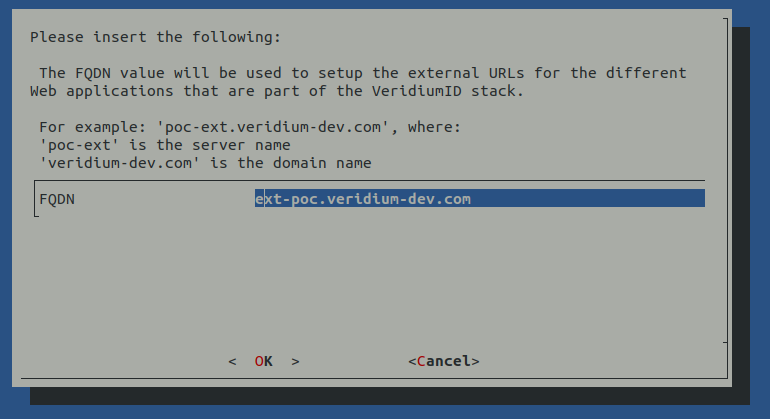

Write the correct EXTERNAL FQDN in place of ext-poc.veridium-dev.com and press the TAB key to go to OK and press Enter to continue.

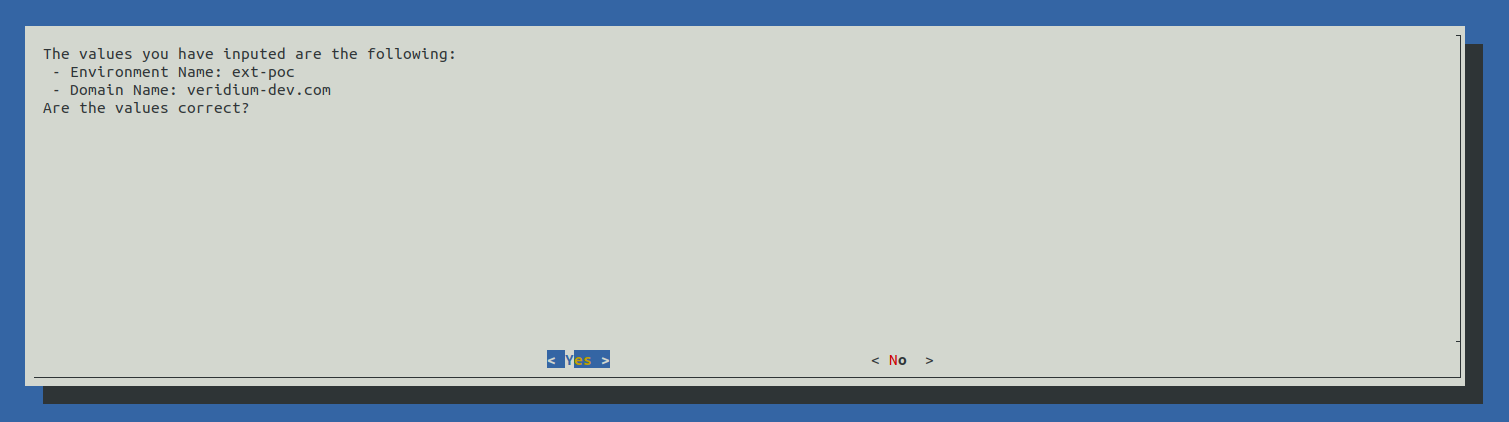

A validation of the FQDN will be prompted. Press Enter to continue.

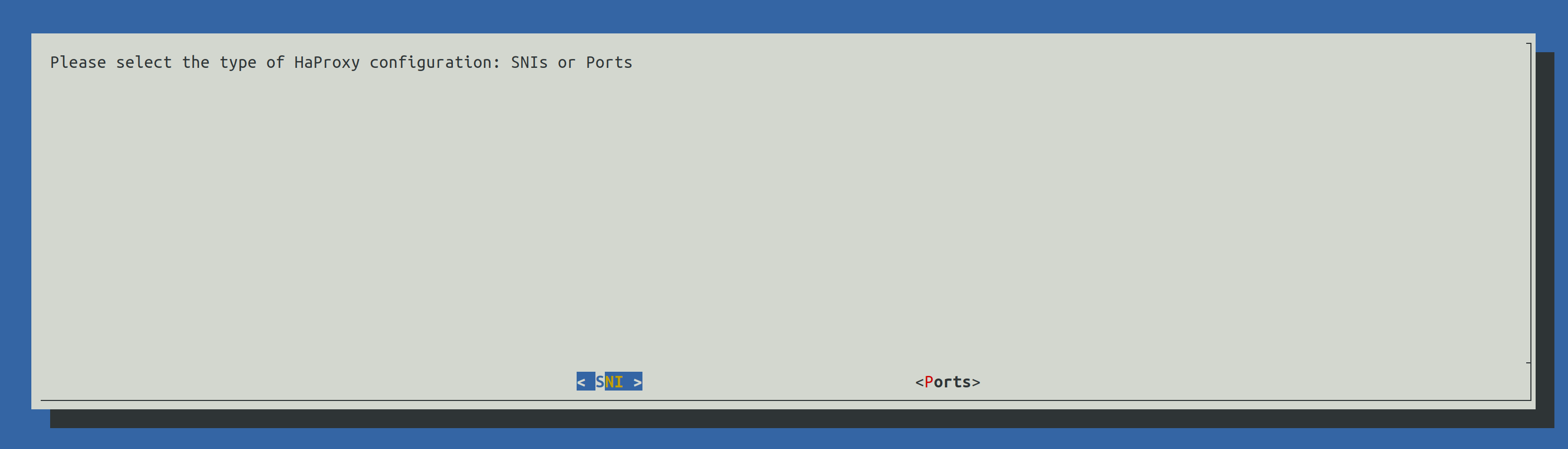

2.4.2.2) HaProxy configuration
There are two configuration for HaProxy:
SNI: all component URLs will be composed from the base FQDN (the one provided during step 2.3.3.1) along side the components name, for example:
for the Admin Dashboard : admin-intFQDN
for the Self Service Portal: ssp-intFQDN
for the Websec API: intFQDN
for Shibboleth Internal (Identity Provider): shib-intFQDN
for Shibboleth External (Identity Provider): shib-extFQDN
for the Self Service Portal: ssp-extFQDN
for the DMZ Websec API: dmz-extFQDN
for the Websec API: extFQDN
Ports: all component URLs will be composed from the base FQDN and a different port for each component, for example:
for the Admin Dashboard: intFQDN:9444
for the Self Service Portal: intFQDN:9987
for the Websec API: intFQDN:443
for internal Shibboleth (Identity Provider): intFQDN:8945
for the Self Service Portal: extFQDN:9987
for the Websec API: extFQDN:443
for external Shibboleth (Identity Provider): extFQDN:8944
for the DMZ Websec API: extFQDN:8544

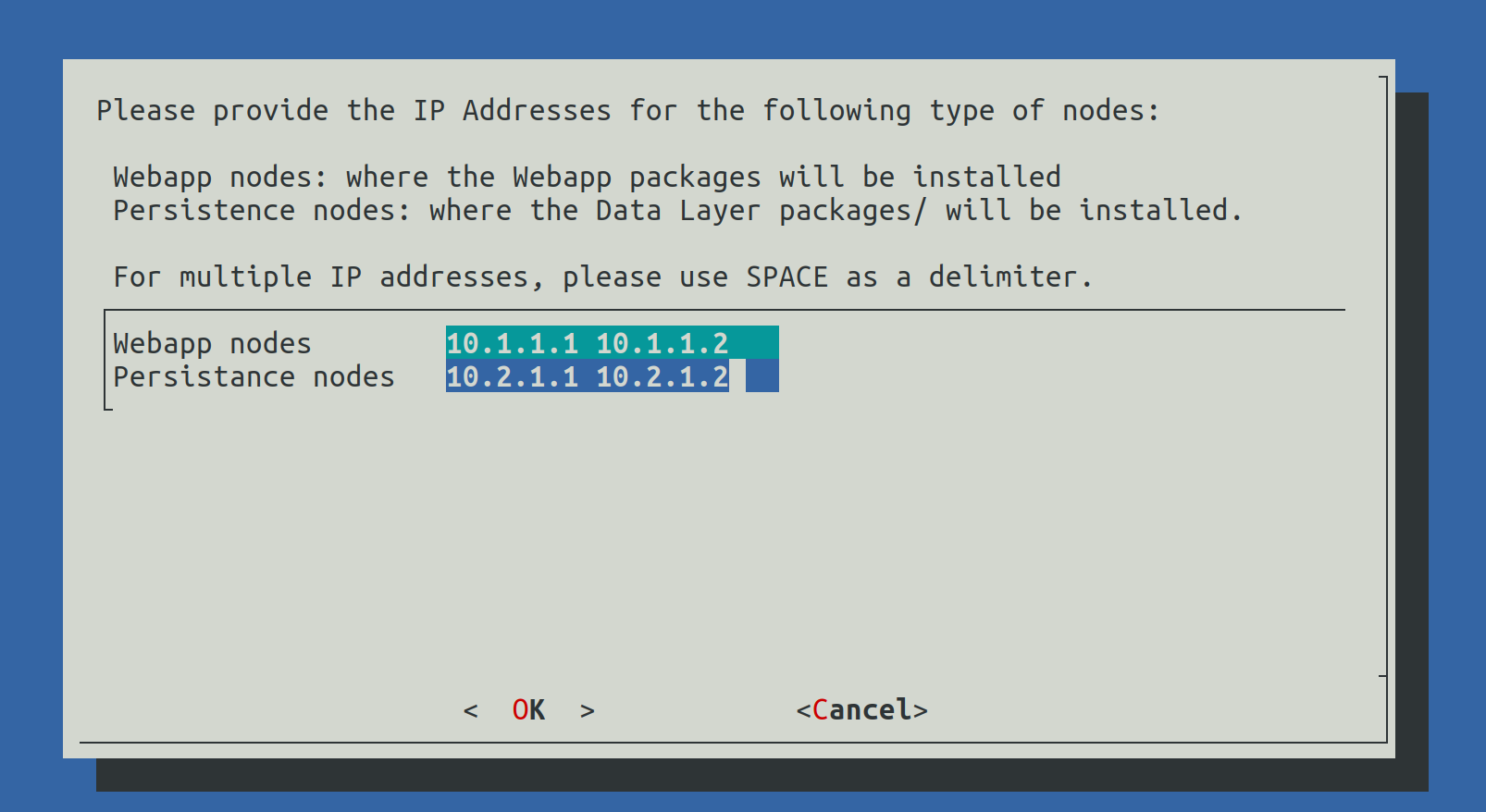

2.4.2.3) Set Ansible Hosts
In this step the select from the list of IP addresses which will be Webapplication nodes and which will be Persistence node (Data nodes).
The list of nodes must be delimitted by Spaces.

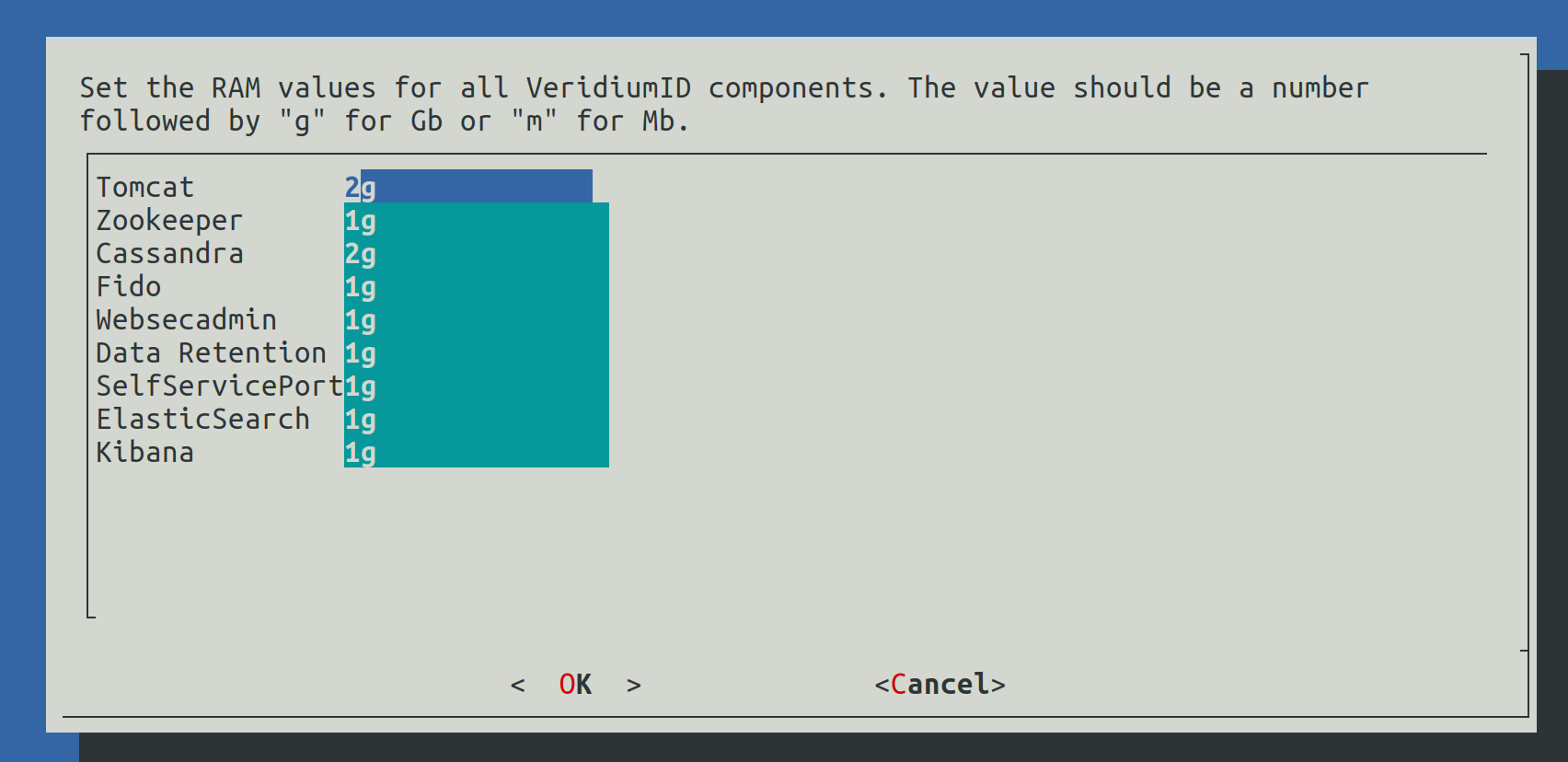

2.4.2.4) Set RAM values
In this step the RAM values for different components will be configured. The value must contain a number followed by g for Gb or m for Mb.

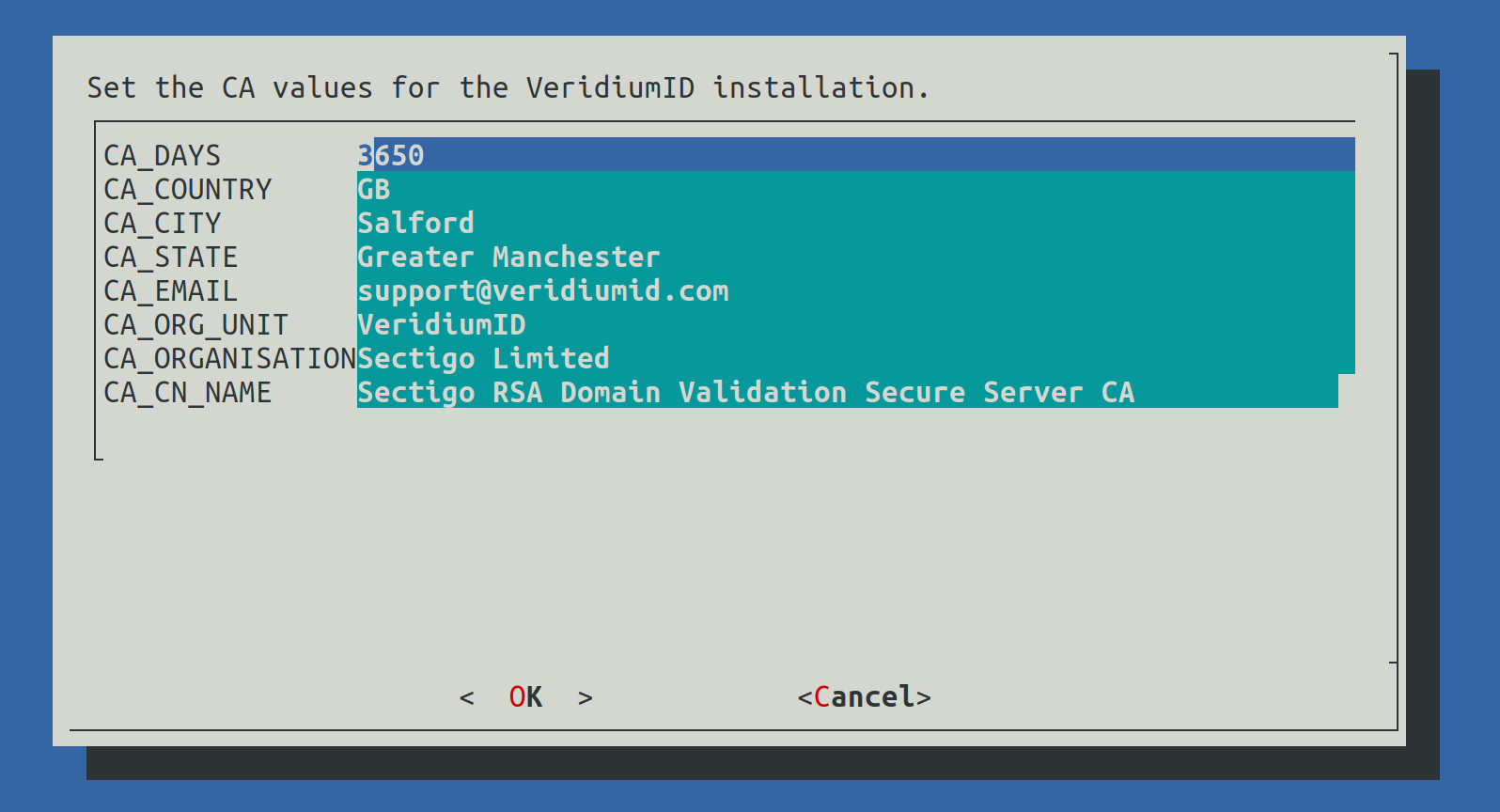

2.4.2.5) Set CA variables
This step will configure the values used for the internal Certification Authority of the VeridiumID deployment (used to generate internal certificates).

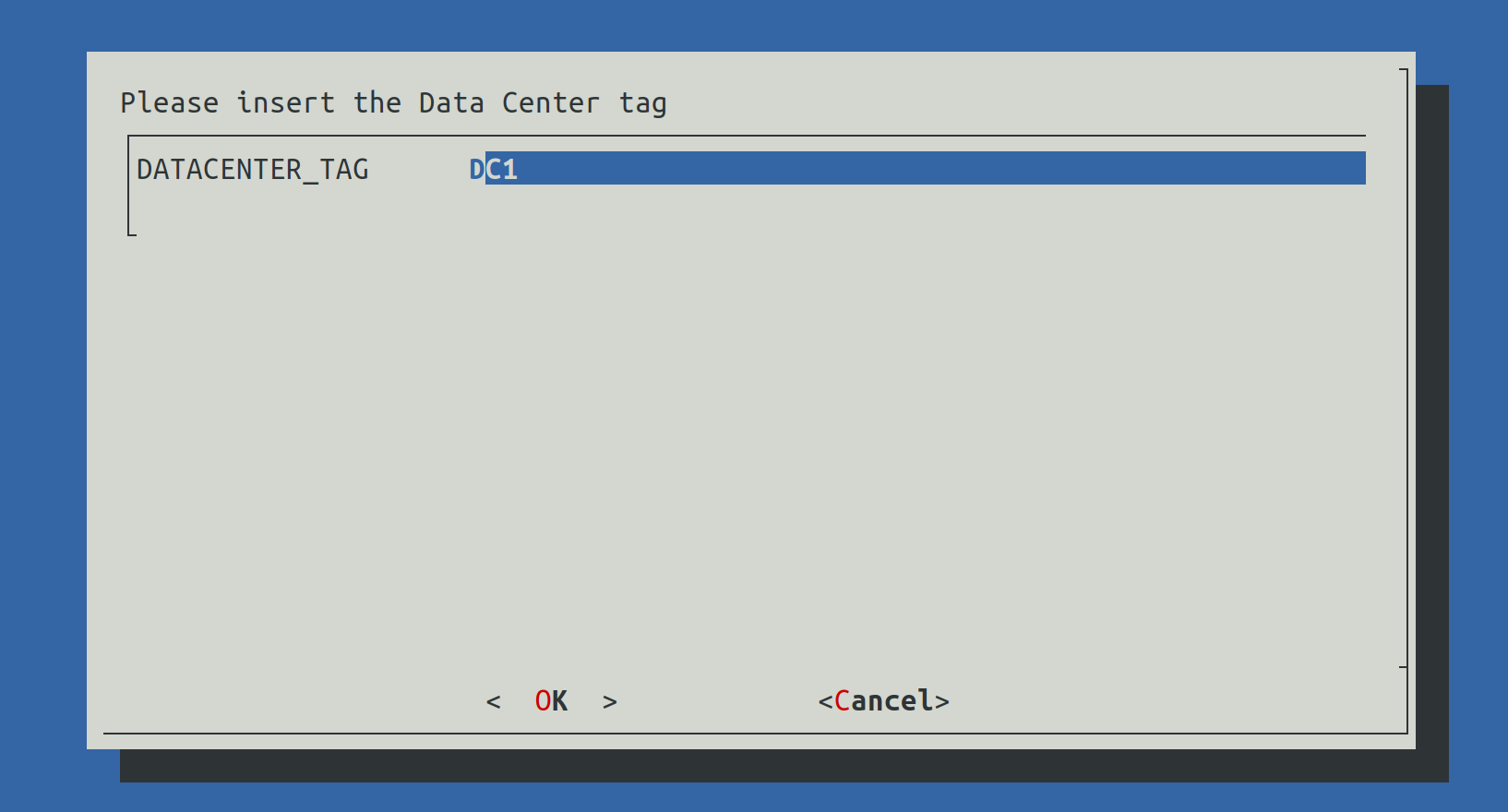

2.4.2.6) Set Data Center Tag
This value will be used to define the name of the current data center.

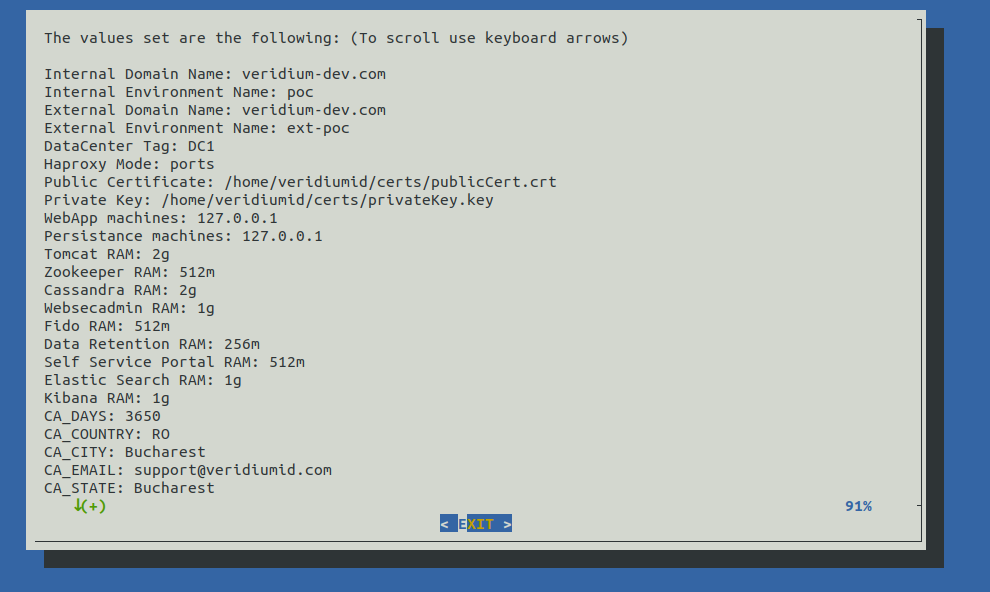

2.4.2.7) Show configuration
In this step we can verify all value provided earlier to validate them.
2.4.2.8) Start deployment

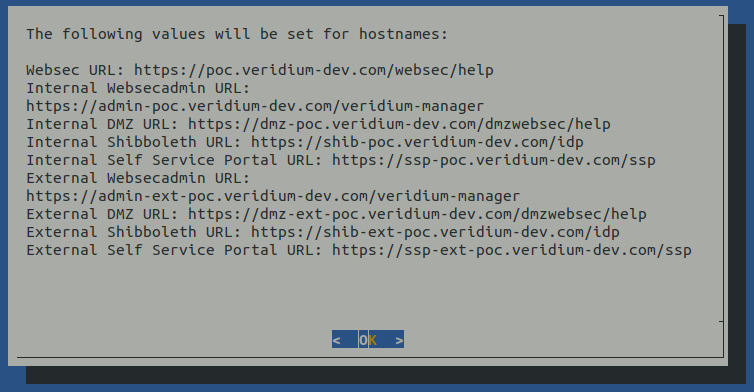

This step will close the Installation Wizard and provide the list of FQDNs:
The values can be viewed later in the following file: /home/veridiumid/host_list.txt
After exiting the Installation Wizard, the deployment process will start by:
Checking the SSH connectivity from this node to all other nodes
Install specific VeridiumID components for Webapplication and Persistence nodes
Start the Ansible configuration
User veridiumid may run the following commands on the machine.
veridiumid ALL=(root) NOPASSWD: /bin/systemctl stop ver*
veridiumid ALL=(root) NOPASSWD: /bin/systemctl start ver*
veridiumid ALL=(root) NOPASSWD: /bin/systemctl enable ver*
veridiumid ALL=(root) NOPASSWD: /bin/systemctl disable ver*
veridiumid ALL=(root) NOPASSWD: /bin/systemctl restart ver*
veridiumid ALL=(root) NOPASSWD: /bin/systemctl status ver*
veridiumid ALL=(root) NOPASSWD: /sbin/service ver* stop
veridiumid ALL=(root) NOPASSWD: /sbin/service ver* start
veridiumid ALL=(root) NOPASSWD: /sbin/service ver* restart
veridiumid ALL=(root) NOPASSWD: /sbin/service ver* status
veridiumid ALL=(root) NOPASSWD: /usr/bin/crontab -l
veridiumid ALL=(root) NOPASSWD: /usr/bin/crontab -e
veridiumid ALL=(root) NOPASSWD: /usr/bin/less /var/log/messages
veridiumid ALL=(root) NOPASSWD: /sbin/tcpdump
veridiumid ALL=(root) NOPASSWD: /bin/bash /etc/veridiumid/scripts/*
veridiumid ALL=(root) NOPASSWD: /bin/python3 /etc/veridiumid/scripts/*
2.5) Cleanup installation files
In veridiumid user’s home directory the following script will take care of cleaning up installation files (in case of needing the same machine to deploy another environment or redeploying the environment).
Run the following command as veridiumid user:
# To remove local installation files (in order to deploy on a new environment):
./cleanup_install_files_rhel9.sh
# To redeploy the same environment (requires to remove the deployment's CA directory)
./cleanup_install_files_rhel9.sh -c
In order to redeploy the same environment, after using the cleanup command (with CA directory included) the following must be performed as well:
Connect to all webapp nodes and stop all services running the following command as root:
- CODE
bash /etc/veridiumid/scripts/veridium_services.sh stop
Connect to a persistence node and do the following:
Remove Zookeeper data using the following command as root:
- CODE
/opt/veridiumid/zookeeper/bin/zkCli.sh # And after accessing the Zookeeper command line deleteall veridiumid # To exit quit
Remove Cassandra keyspace using the following command as root:
- CODE
/opt/veridiumid/cassandra/bin/cqlsh --cqlshrc=/opt/veridiumid/cassandra/conf/veridiumid_cqlshrc --ssl -e 'drop keyspace veridium;' #(even it received timeout, it should be deleted; check with the following command; the veridium keyspace should not exists) /opt/veridiumid/cassandra/bin/cqlsh --cqlshrc=/opt/veridiumid/cassandra/conf/veridiumid_cqlshrc --ssl -e 'desc keyspaces;'
Connect to all persistence nodes and stop all services running the following command as root:
- CODE
bash /etc/veridiumid/scripts/veridium_services.sh stop
