FIDO Devices

This dashboard focuses on FIDO devices registered in the system. It contains the following charts:

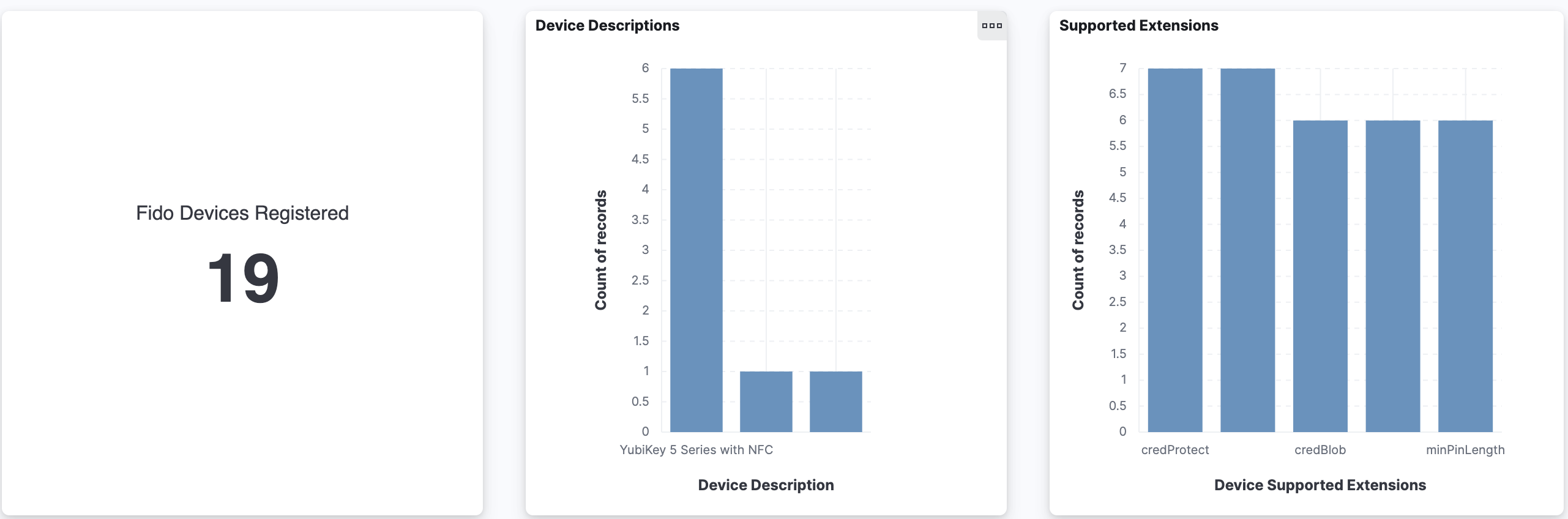

• The first one shows the total number of FIDO devices registered in the system

• The “Device Descriptions” is a count bar chart which shows how many FIDO devices are registered under each description

• The “Supported Extensions” is a count bar chart which shows how many FIDO devices support each extension

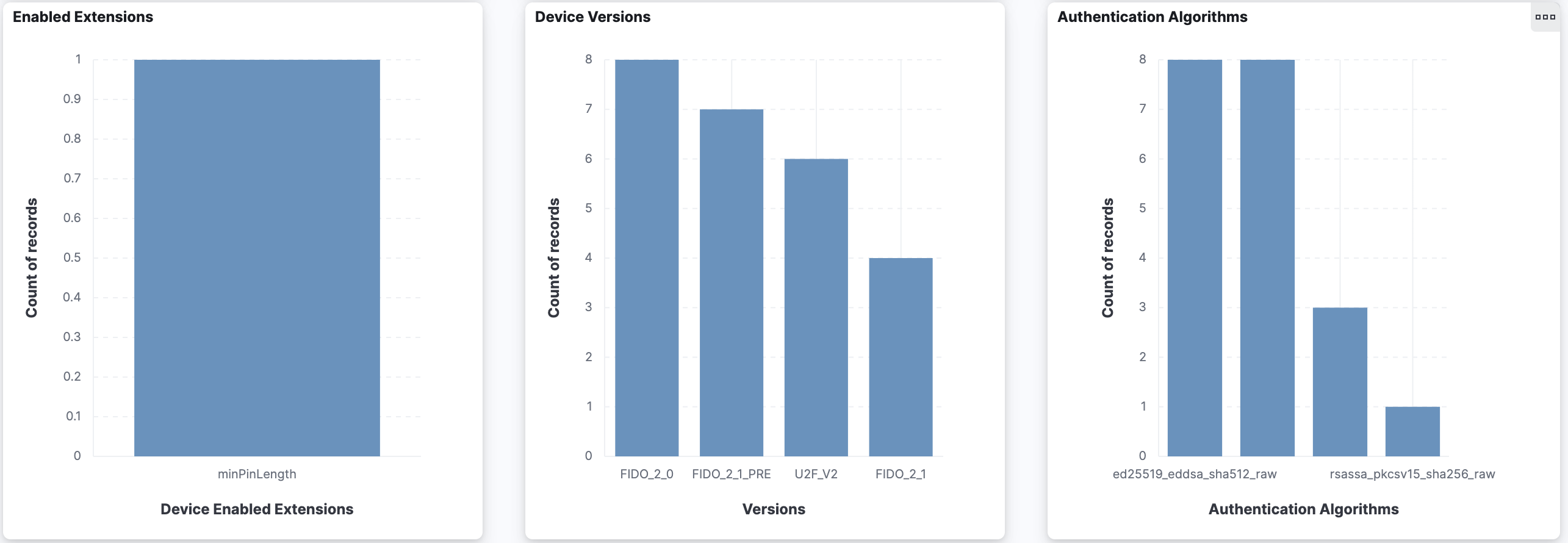

• The “Enabled Extensions” is a count bar chart which shows how many FIDO devices have each extension enabled

• The “Device Versions” is a count bar chart which shows how many FIDO devices support each protocol

• The “Authentication Algorithms” is a count bar chart which shows how many FIDO devices support each authentication algorithm

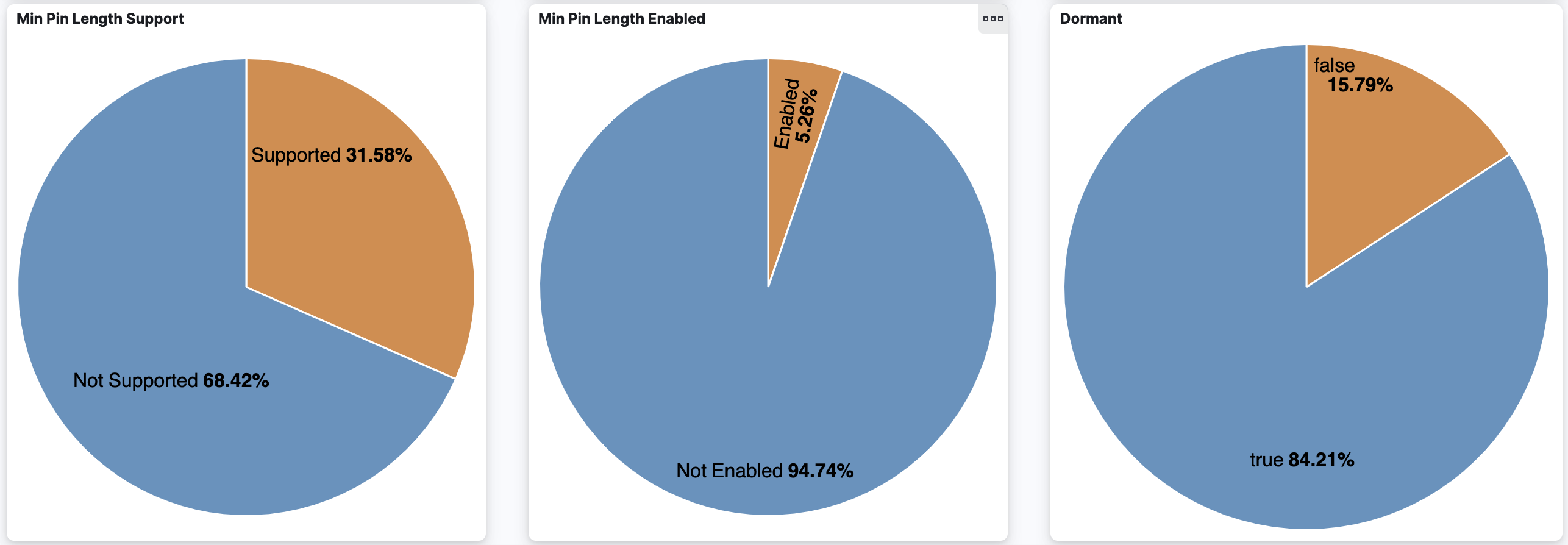

• The “Min PIN length support” is a pie chart which shows the distribution of FIDO devices that support the Min PIN length extension

• The “Min PIN length enabled” is a pie chart which shows the distribution of FIDO devices that have the Min PIN length extension enabled

• “Dormant” is a pie chart which shows the distribution of FIDO devices that are dormant and active

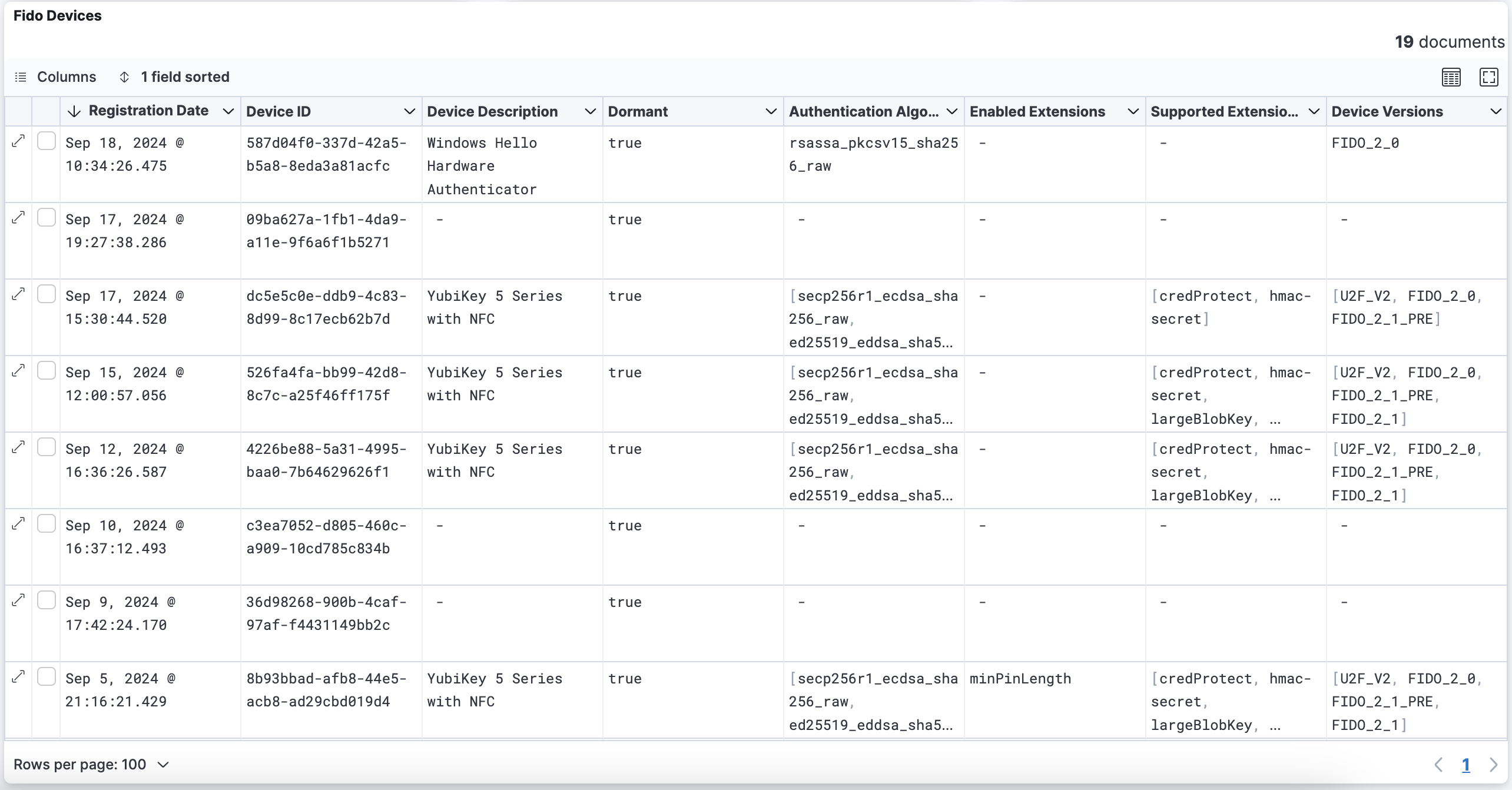

• Lastly, the “FIDO Devices” is a Table presenting the list of all registered FIDO devices
