Export Microsoft CA / SubCA certificate from Certification Authority for renewing Veridium CA
Using a new CA certificate into Veridium Service require the usage of a pkcs12/pem/.p12 certificate.
Newly exported certificate will allow customer to use his own proprietary CA certificate in the network components or devices located between WAN and Veridium Servers.
All new devices certificates issued during the smartphone, workstations enrollment and authentication will use the updated certificate provided by the customer from his infrastructure.
Once the steps from this guide are performed, checking exported certificate should provide below features:
X509v3 Basic Constraints: critical
CA:TRUE
X509v3 Key Usage: critical
Certificate Sign
X509v3 Extended Key Usage:
TLS Web Server Authentication, TLS Web Client Authentication
Steps to obtain certificate from CA or SubCA
Connect with enterprise domain administrator rights to any of the trusted and online CA’s of the domain
When online CA isn’t available, any of the trusted subCA’s of domain must be used.
Open Certification Authority (certsrv.msc) from the domain controller
Connect to CA or Subordinate CA’s

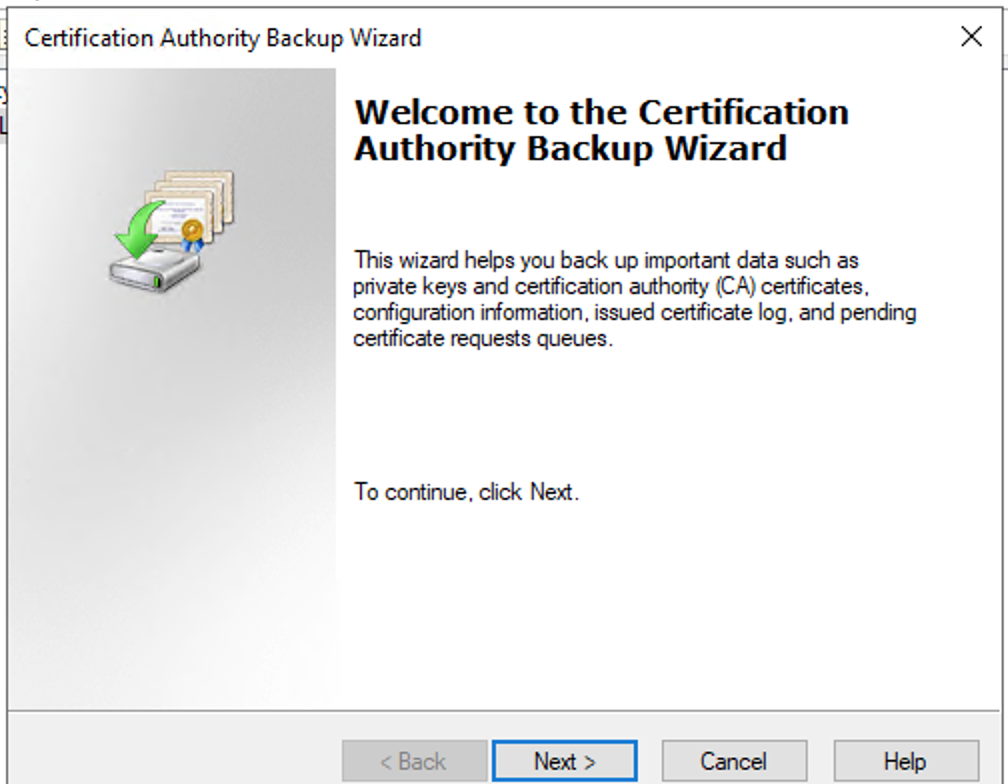

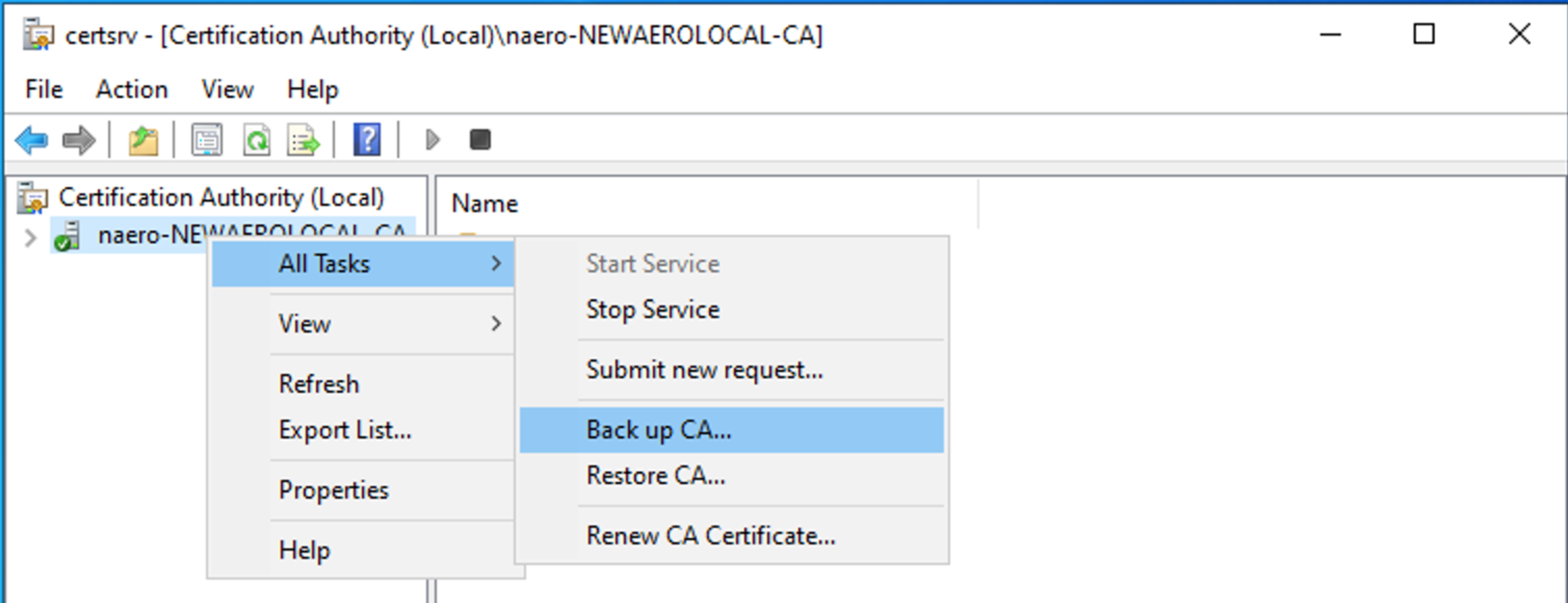

Select CA or Sub CA → right click → All Tasks → Back up CA
Press Next

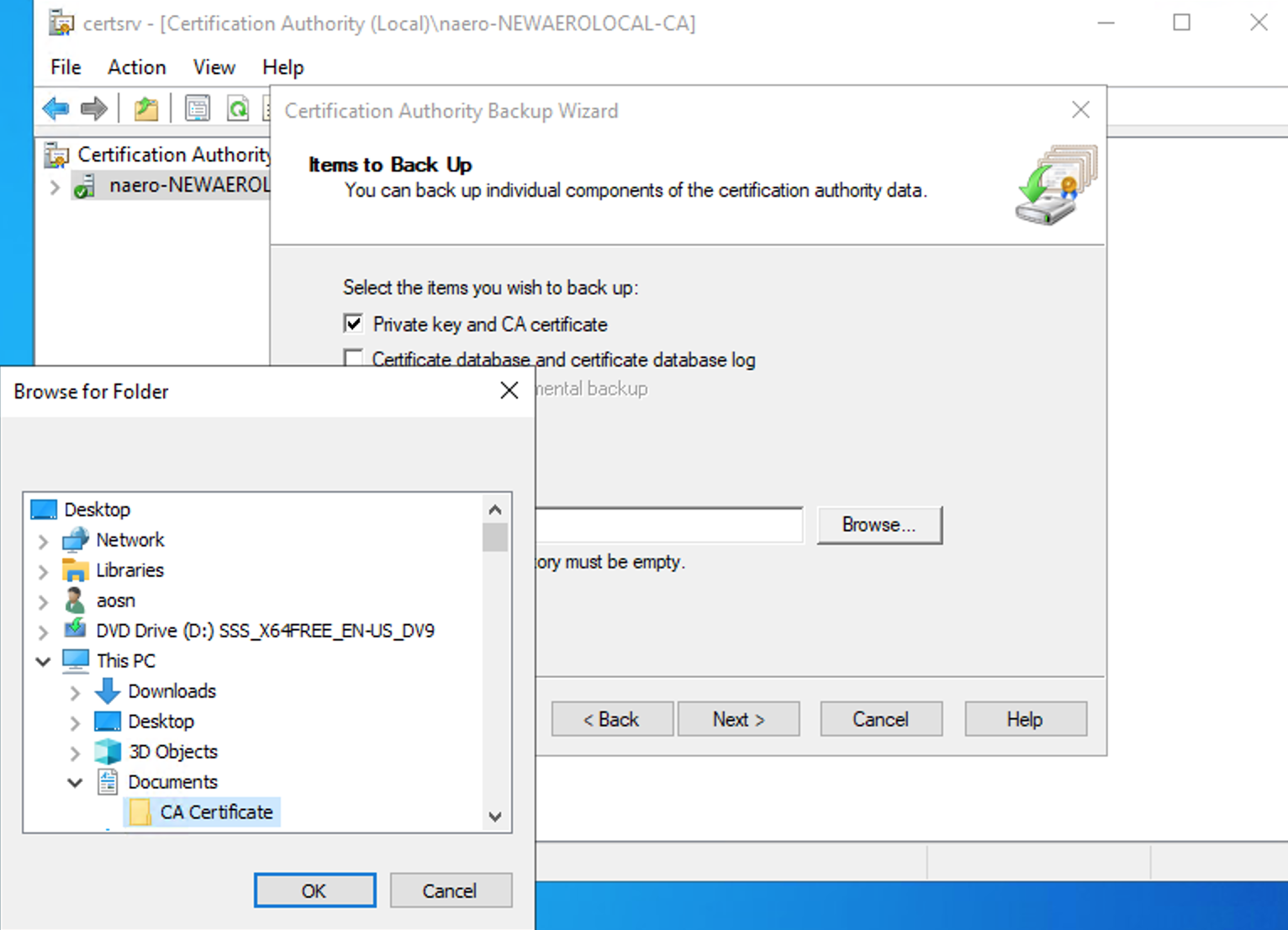

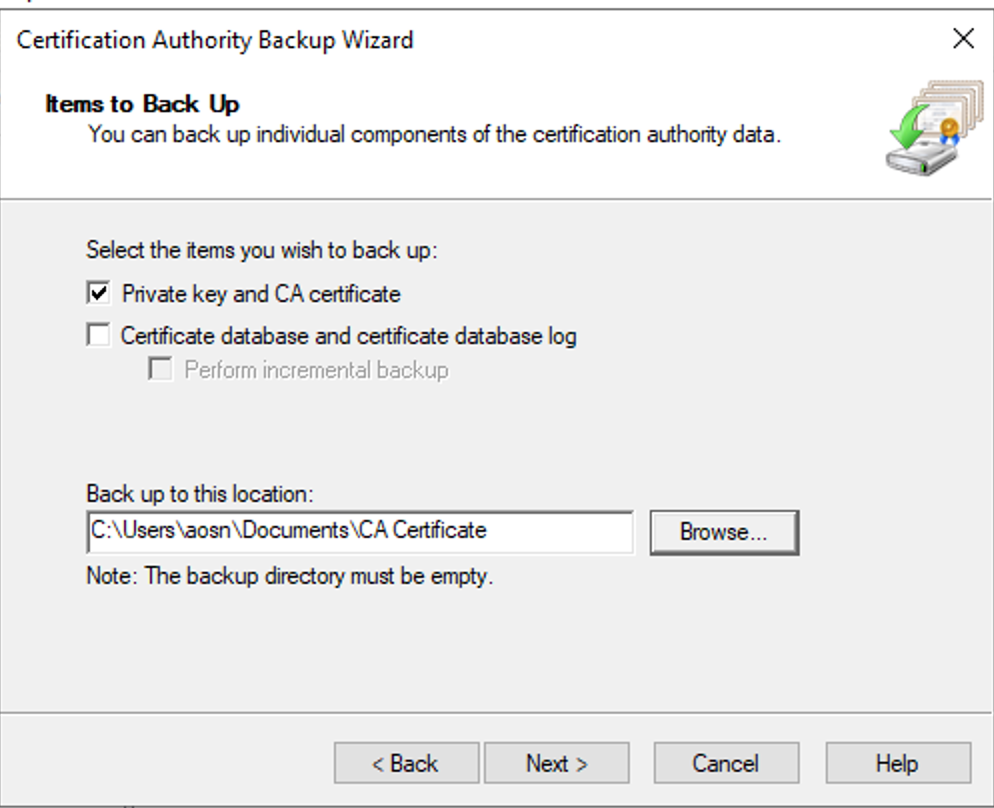

Select Private Key and CA certificate
Select location folder where the certificate will be saved
Press next

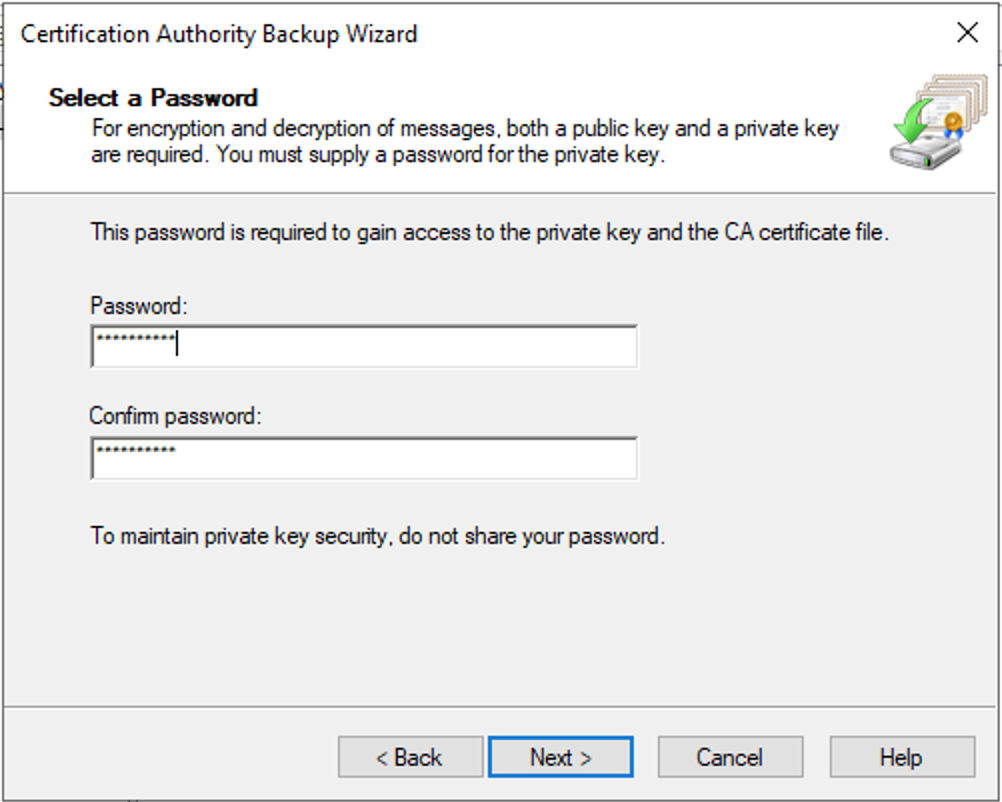

Create a new strong password and press next

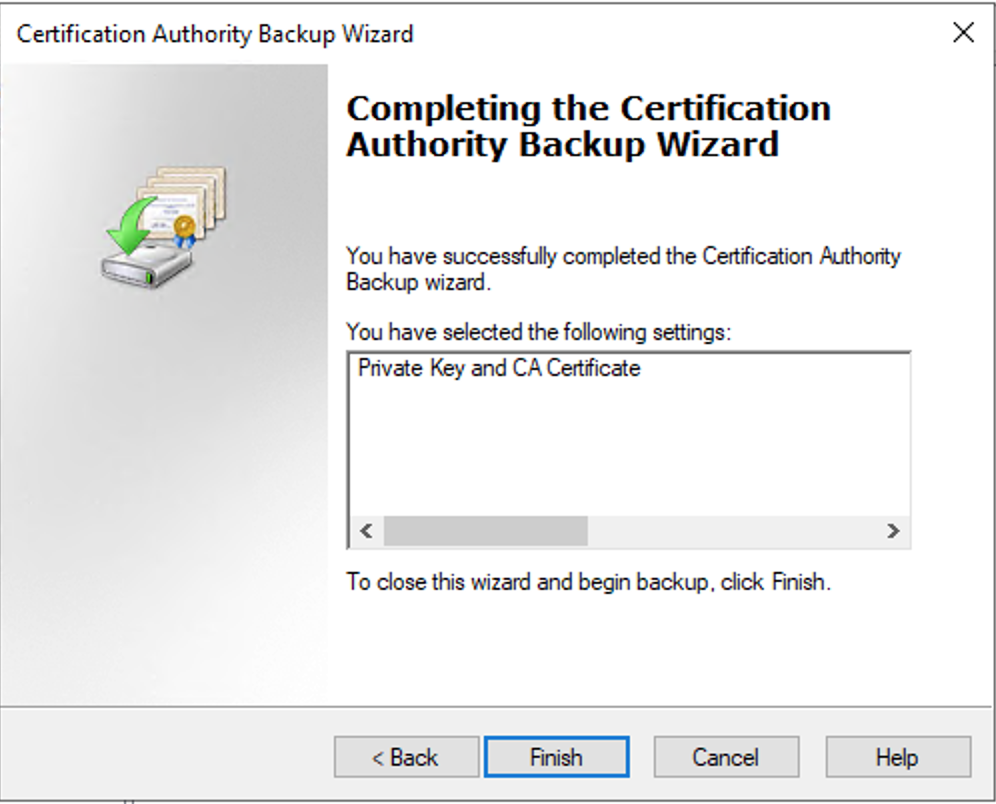

Press finish to complete the process
Certificate is available now to be imported into computer certificate store for later export of pkcs12 certificate
This operation requires opening certlm.msc - Trusted Certification Authorities

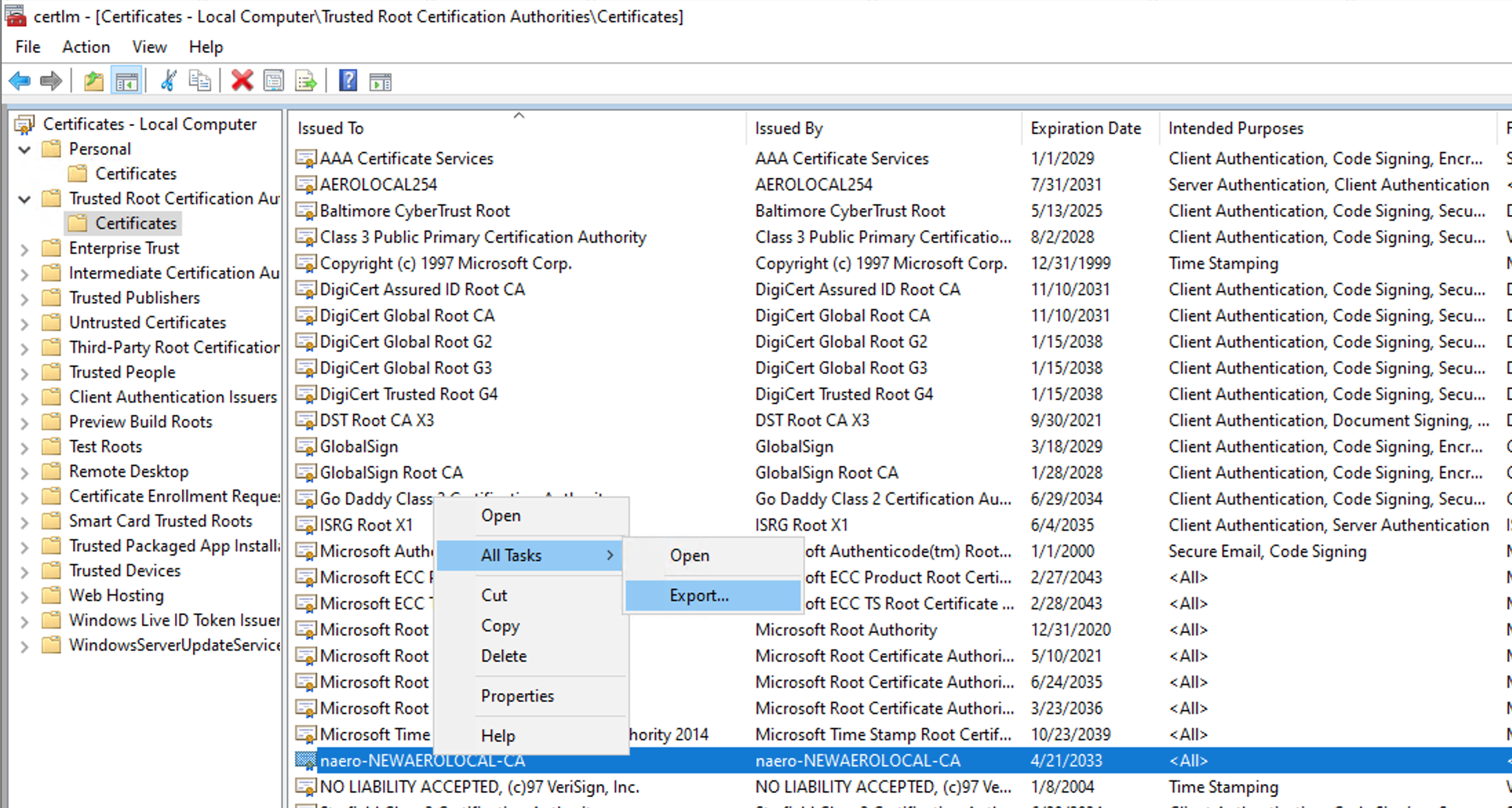

Idendify your CA or SubCA certificate → select it-> Right click → All Tasks → Export

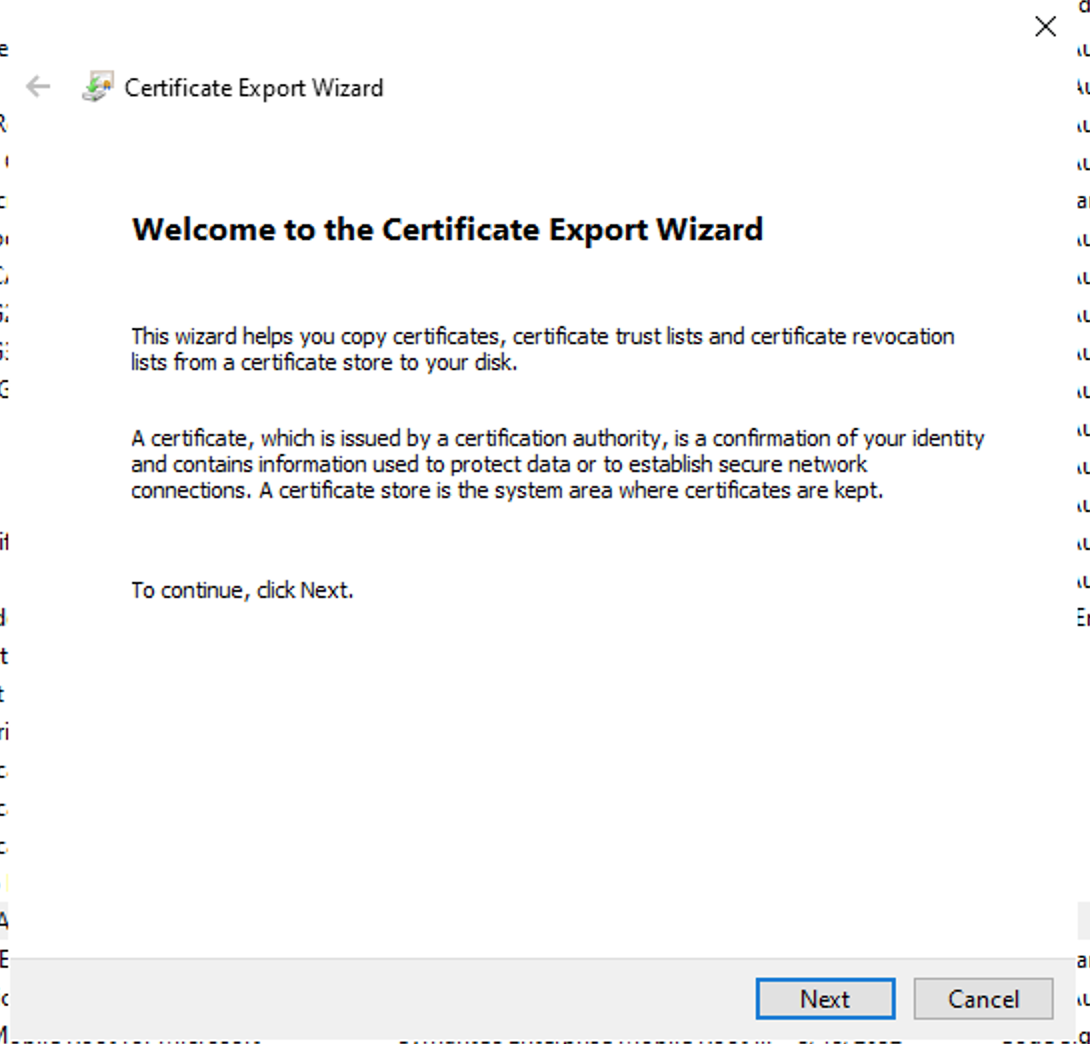

Press Next
Select Base-64 x509 (.CER)

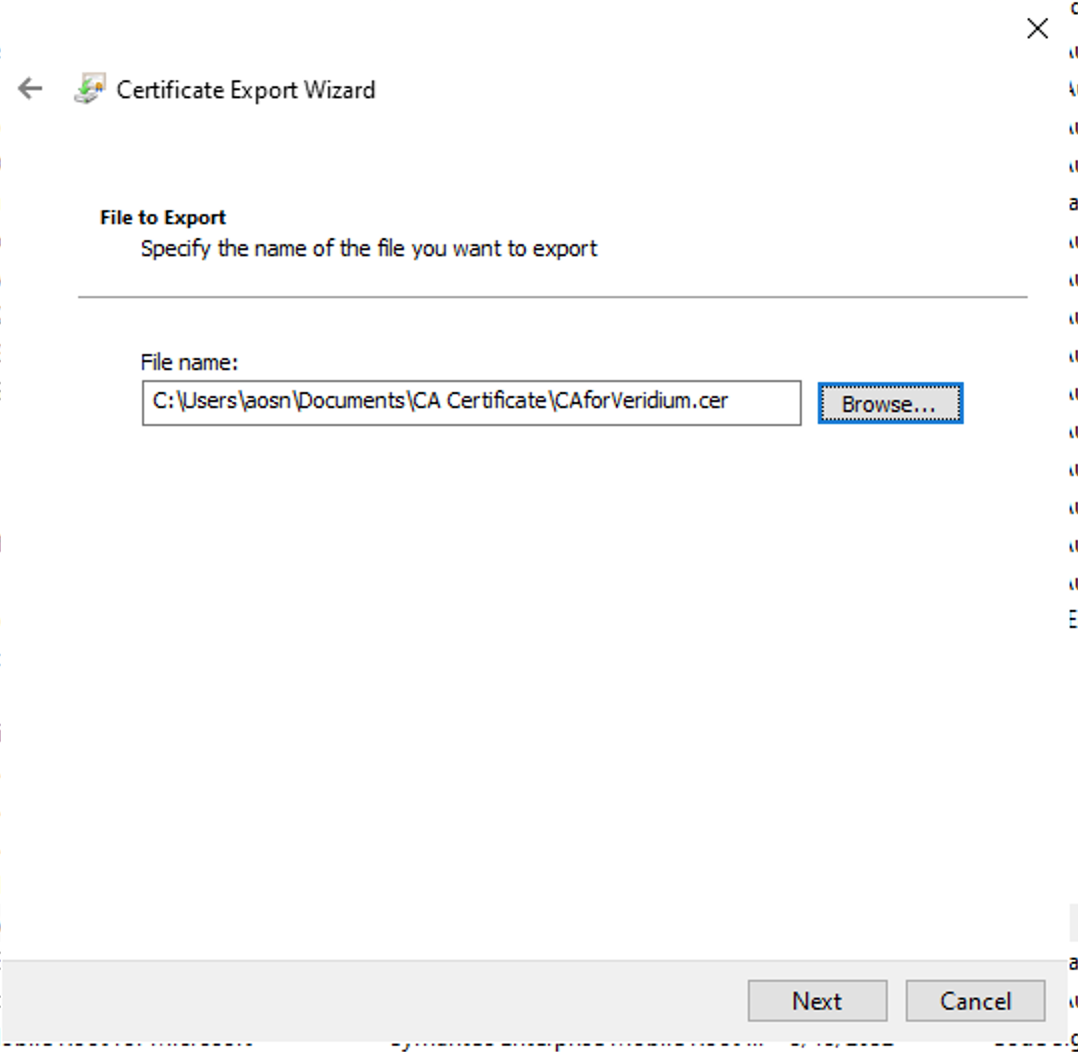

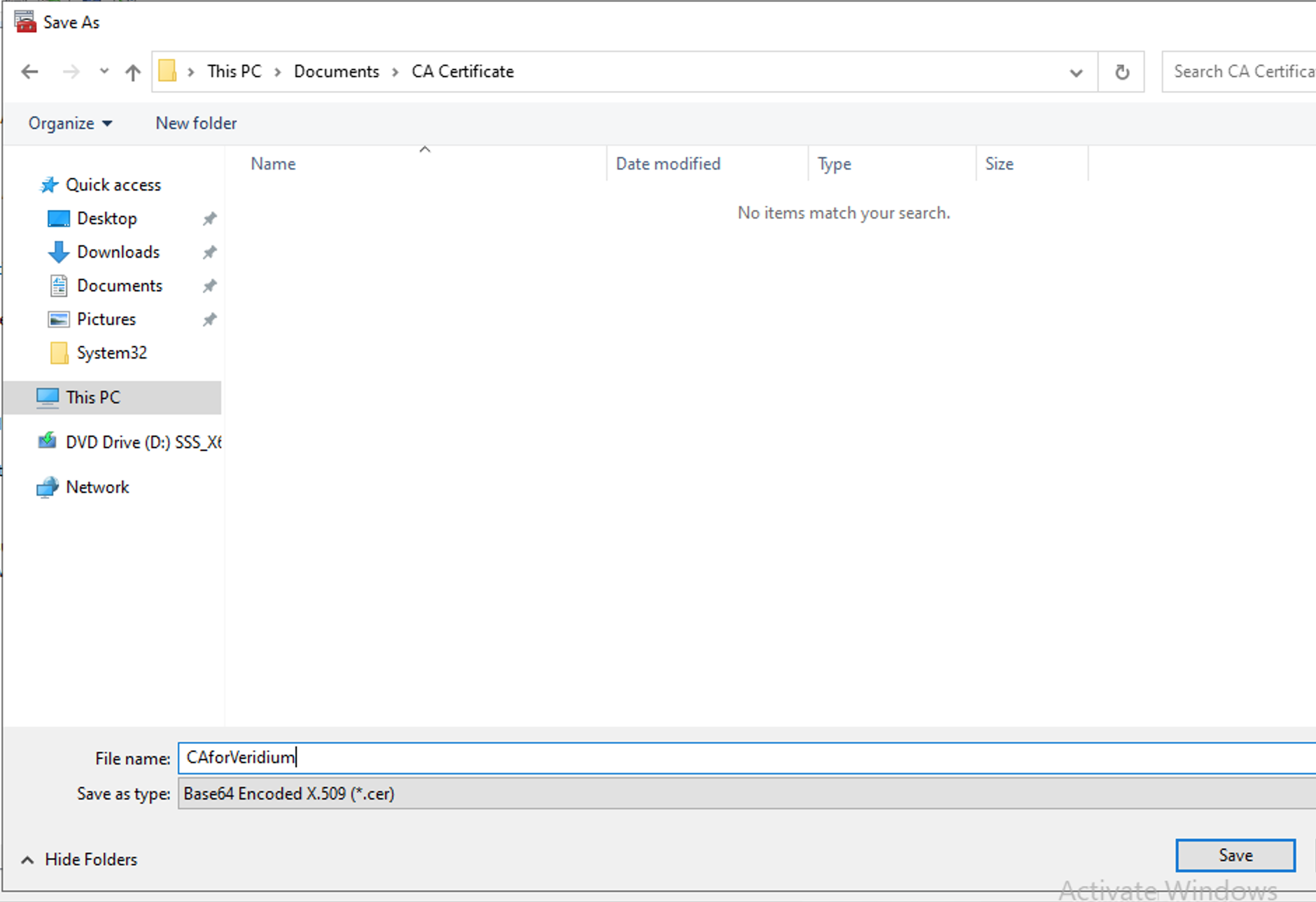

Choose your export folder location and give a name for the file → Save
Next

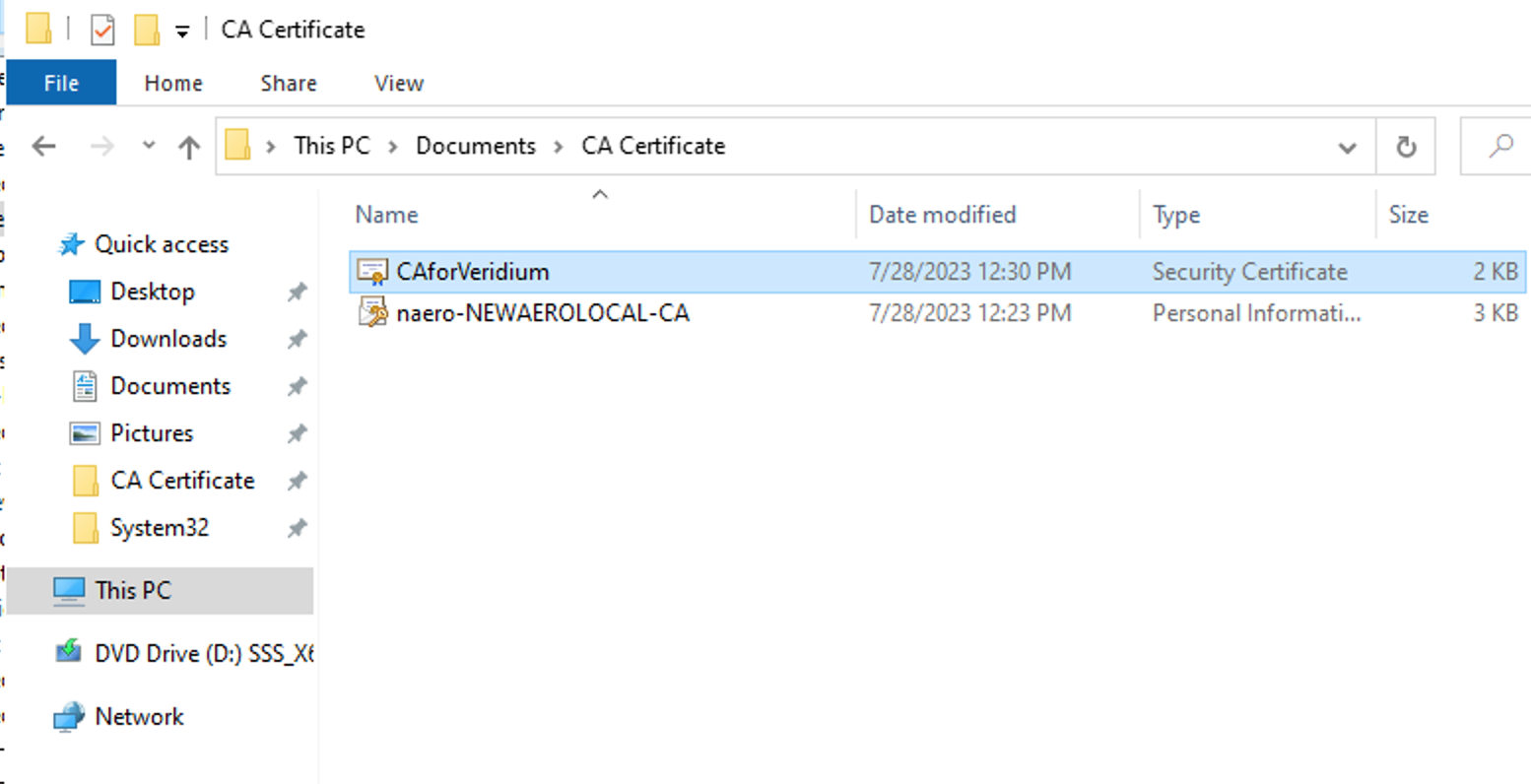

Newly created certificate will be available for import

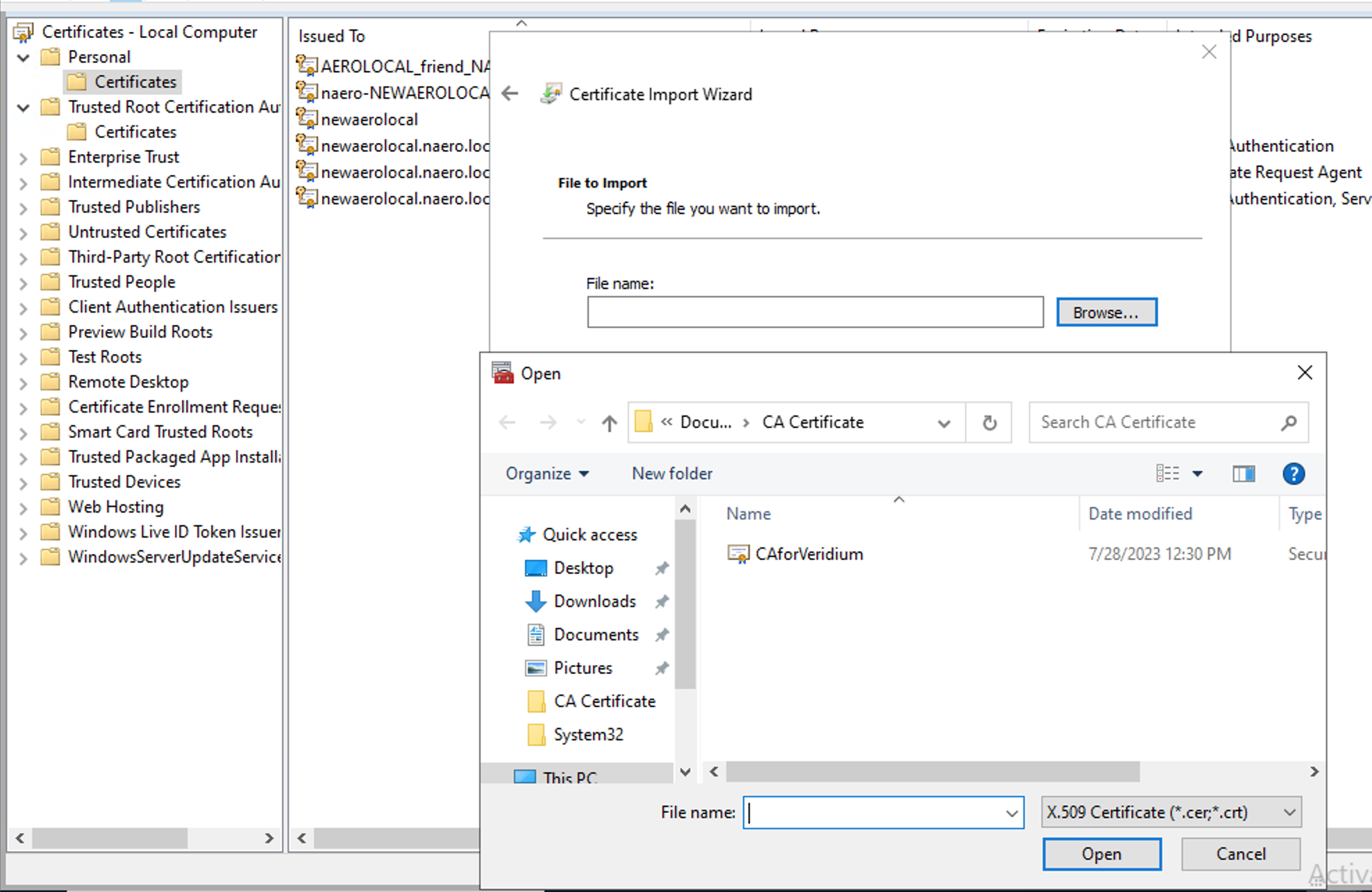

Open certlm.msc → Personal Certificate store and import your certificate

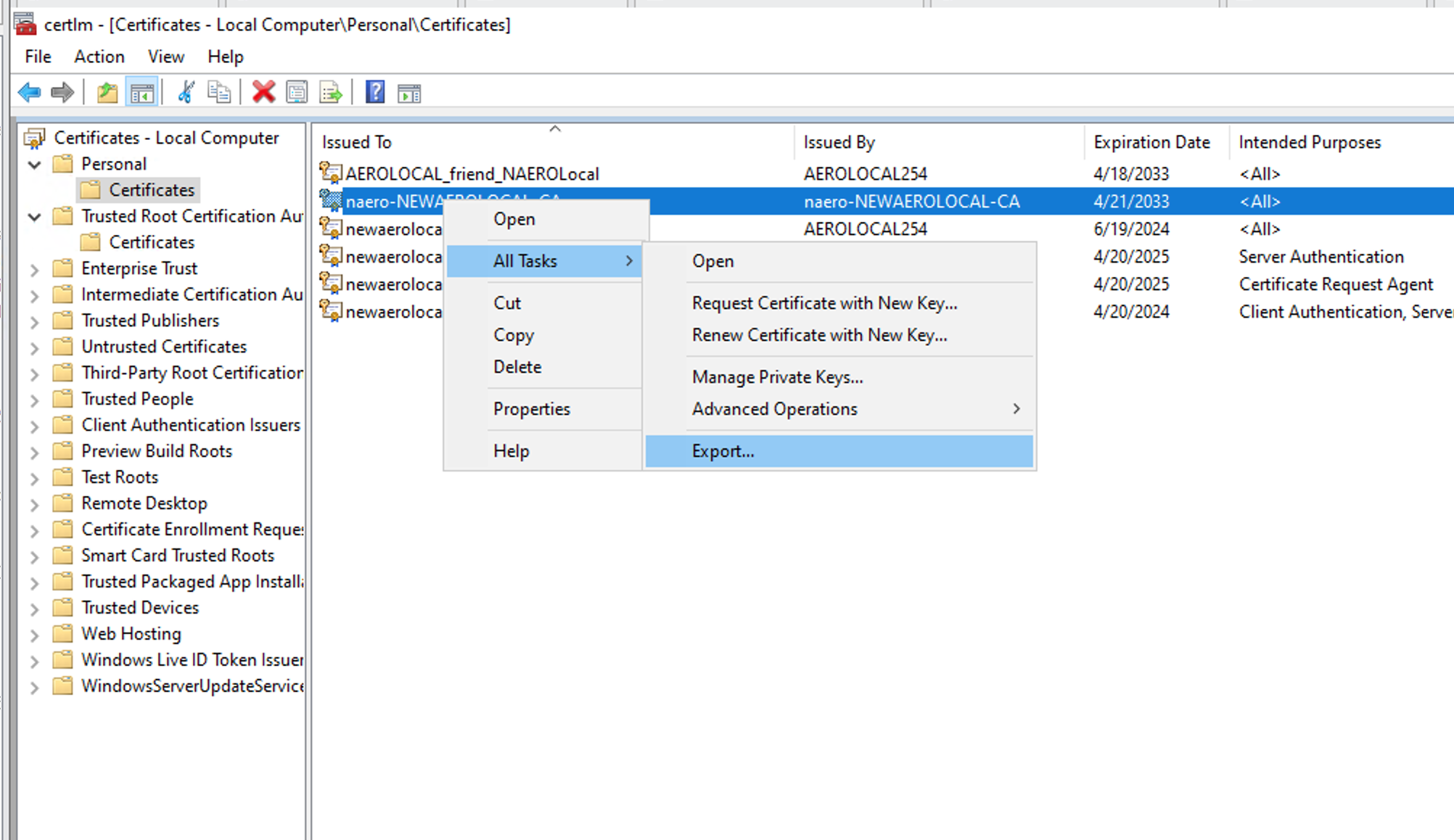

Select your certificate → Right Click → Export

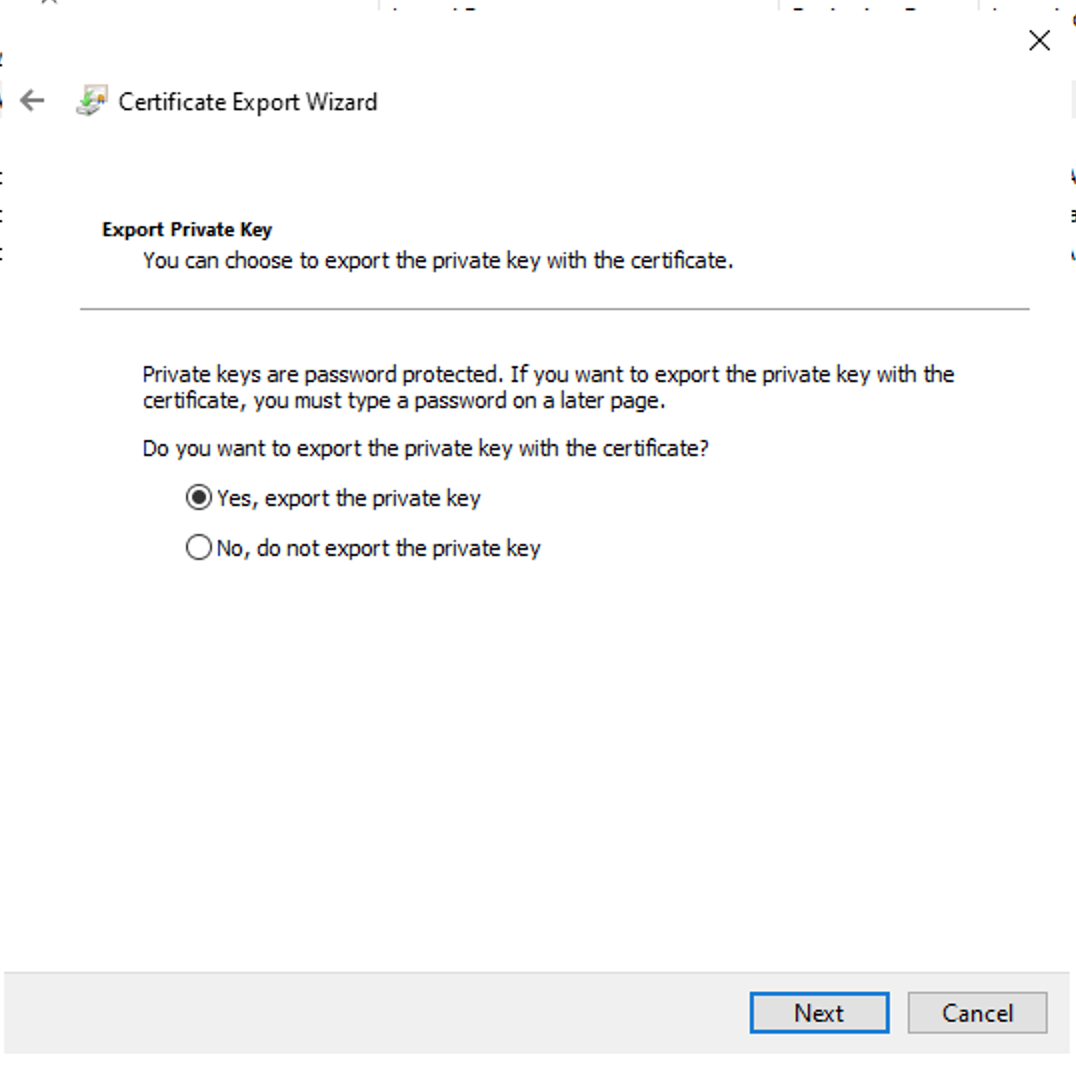

Select → Yes, export the private key

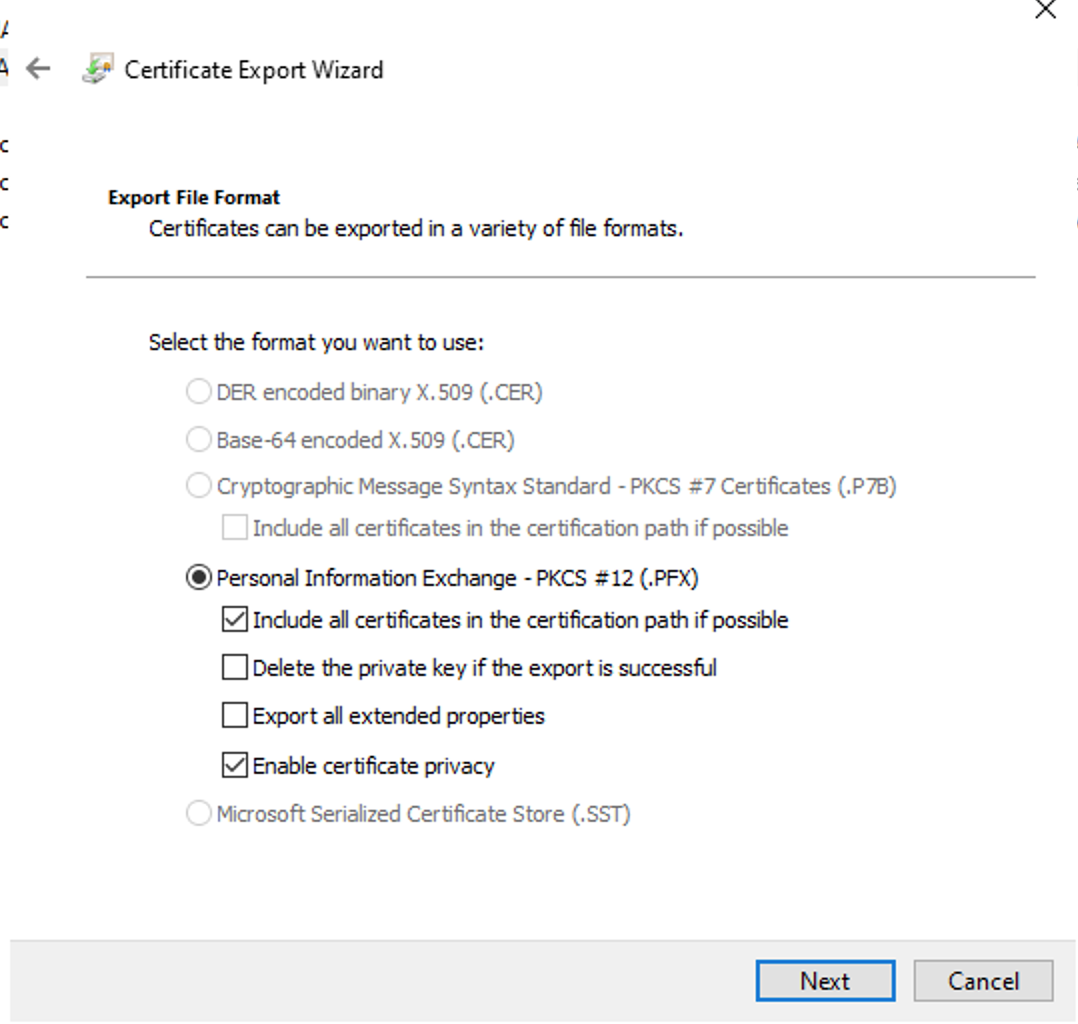

Confirm PKCS12 information which will be included in the certificate → Press Next

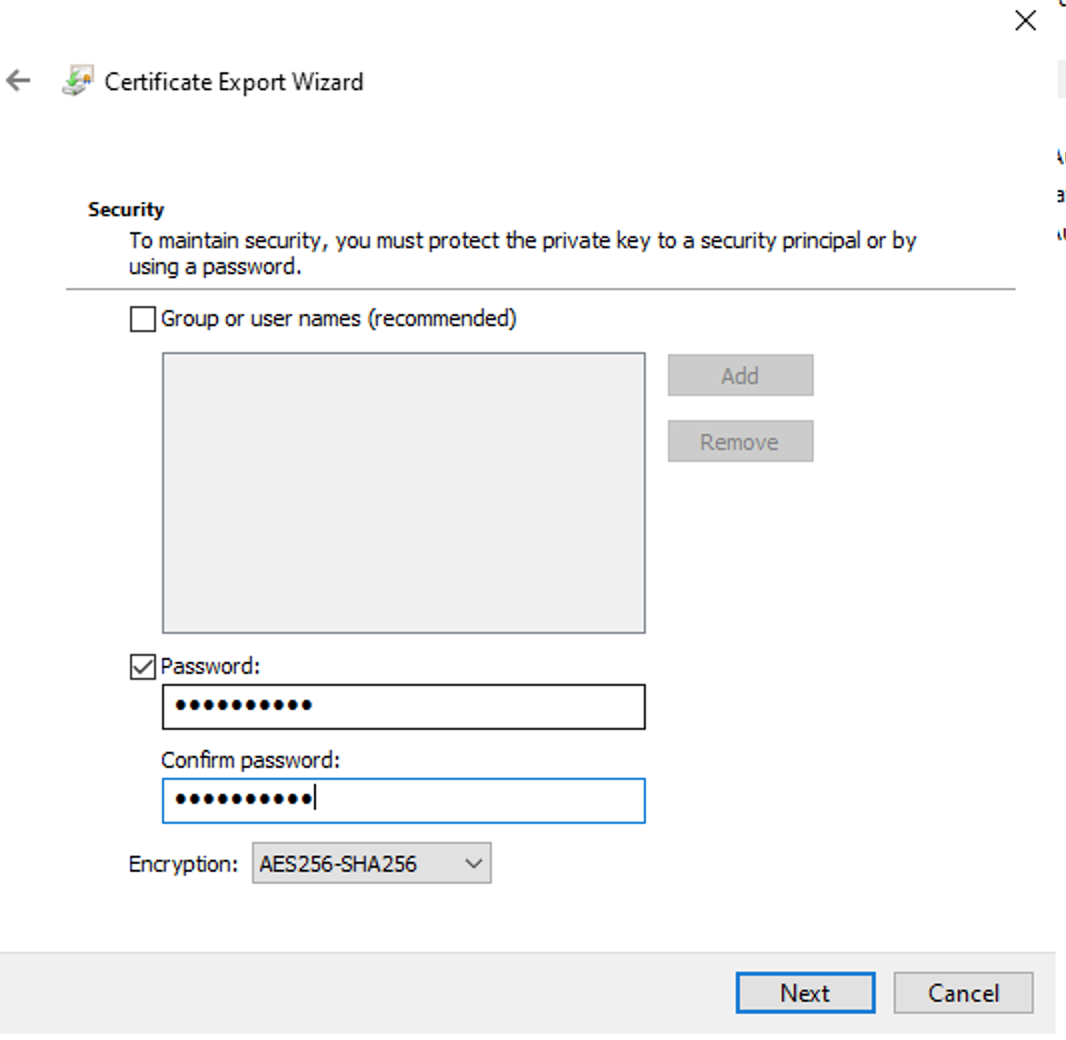

Assign a strong password and choose encryption AES256-SHA256 to your certificate then → Next

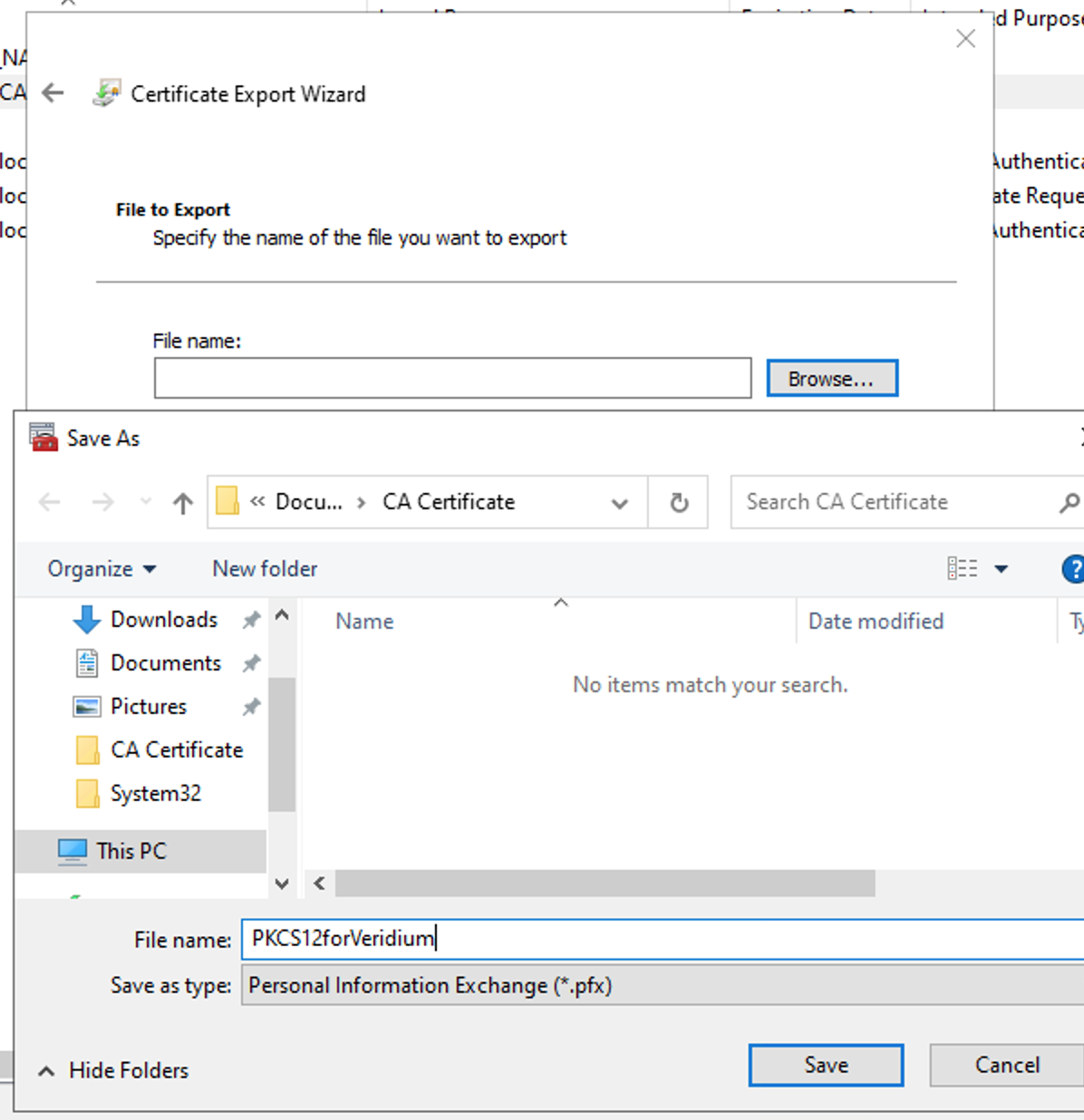

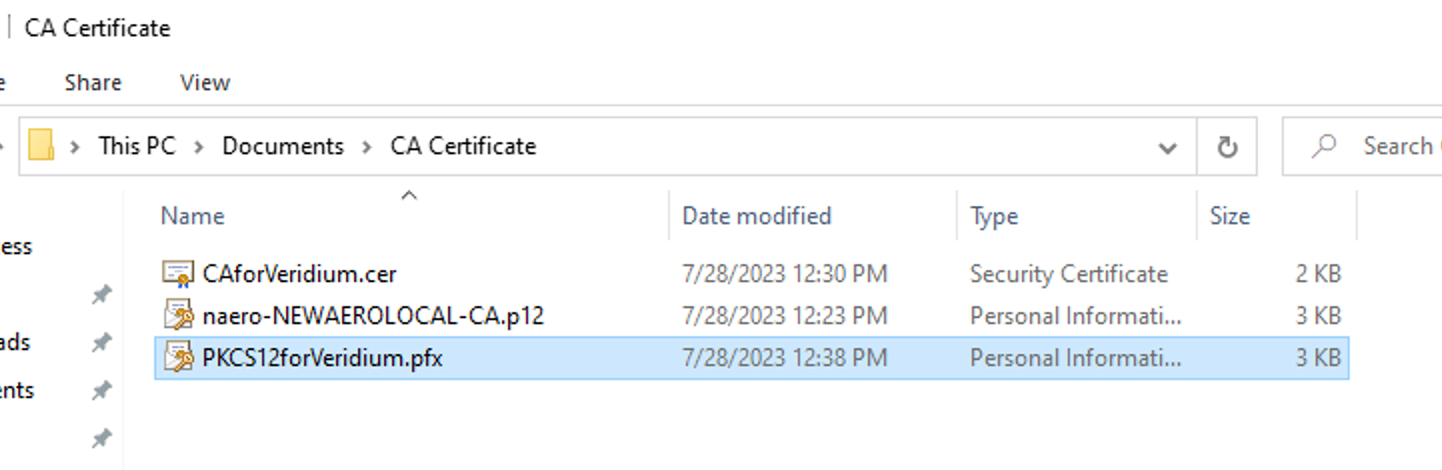

Save the file by giving it a name → Next → Finish
Communicate to Veridium team the new certificate and password to be imported into Veridium Servers
Next steps will be performed on Veridium Servers and should be defined if not existent into other security devices of customer network ( such as import in F5/Netscaler etc)
