RAEP - Setup

Sizing

A single Windows server supports a limited number of users. For larger production deployments use this table to determine how many Windows servers to deploy.

Solution Components

Kit A

Kit B

Kit C

Capacity

Up to 30,000 users

30,000--60,000 users

60,000--120,000 users

EP and RA Servers

2 Servers - CPU 2 GHz or better, 4GB RAM, 40 GB HDD

4 Servers - CPU 2 GHz or better, 4GB RAM, 40 GB HDD

6 Servers - CPU 2 GHz or better, 4GB RAM, 40 GB HDD

Operating System

Windows Server 2012 R2 or newer with IIS and Application Server roles

Windows Server 2012 R2 or newer with IIS and Application Server roles

Windows Server 2012 R2 or newer with IIS and Application Server roles

Install the VeridiumID RA & EP software

Procedure:

  1. Login to Server as local administrator and copy VeridiumRAEPx64 version .msi for example VeridiumRAEP_x64_x.x.x.msi

  2. Right-click VeridiumRAEP_x64_x.x.x.msi and choose Run as administrator.

  3. Follow the installer instructions:

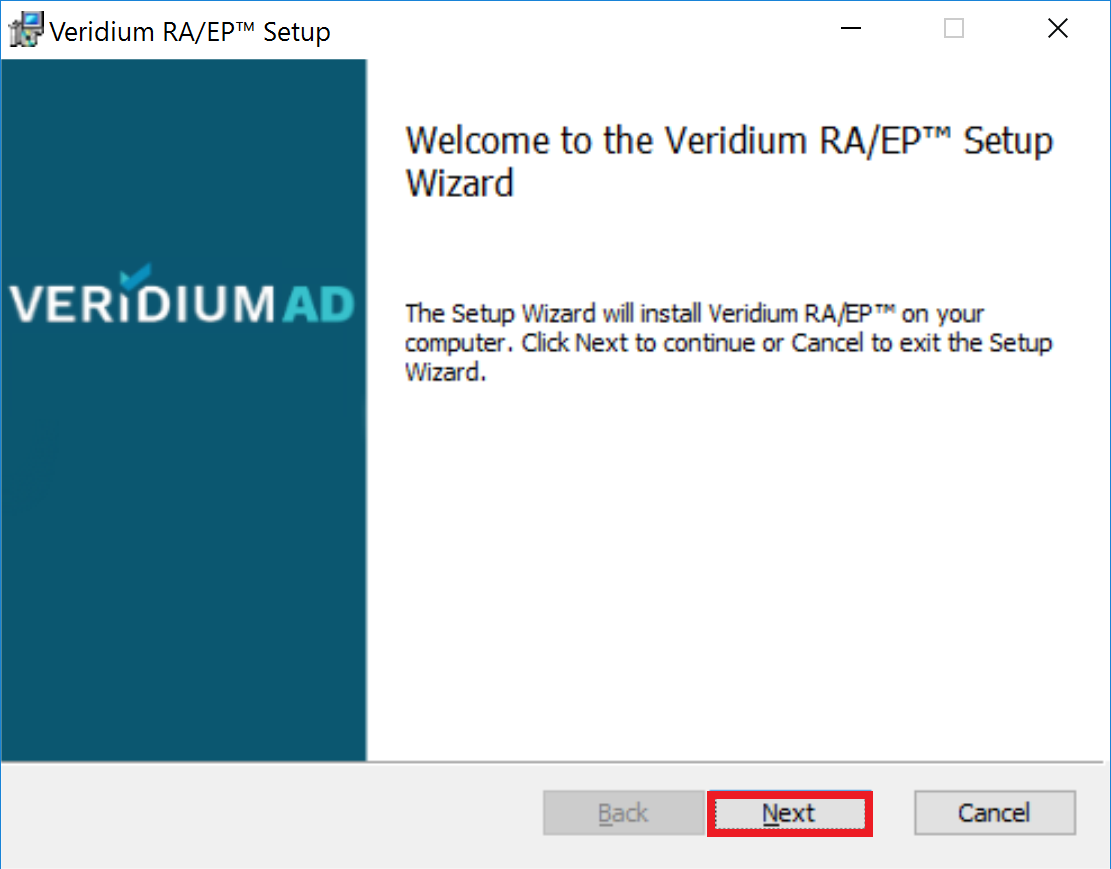

    1. The welcome screen will appear, continue by pressing "Next" button.

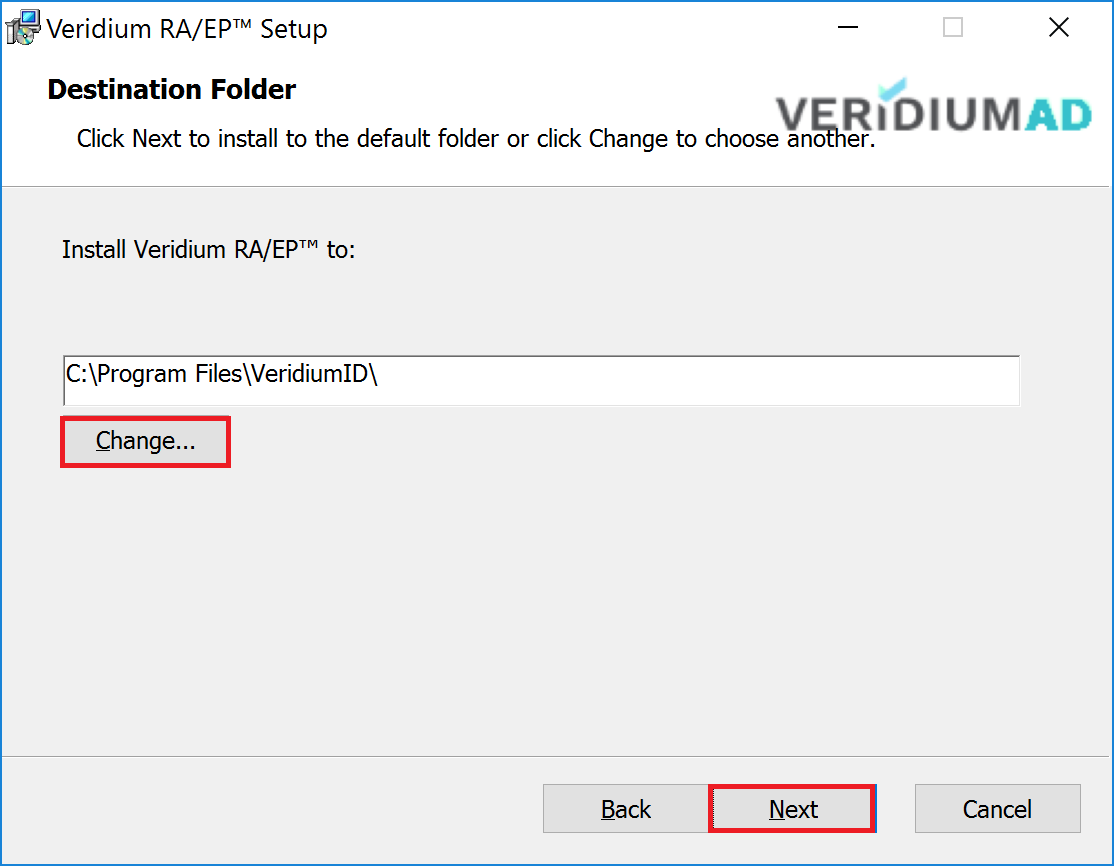

    2. Click “Next” if you prefer to install RAEP on disk C. If you want to choose a different location, click the “Change” button."

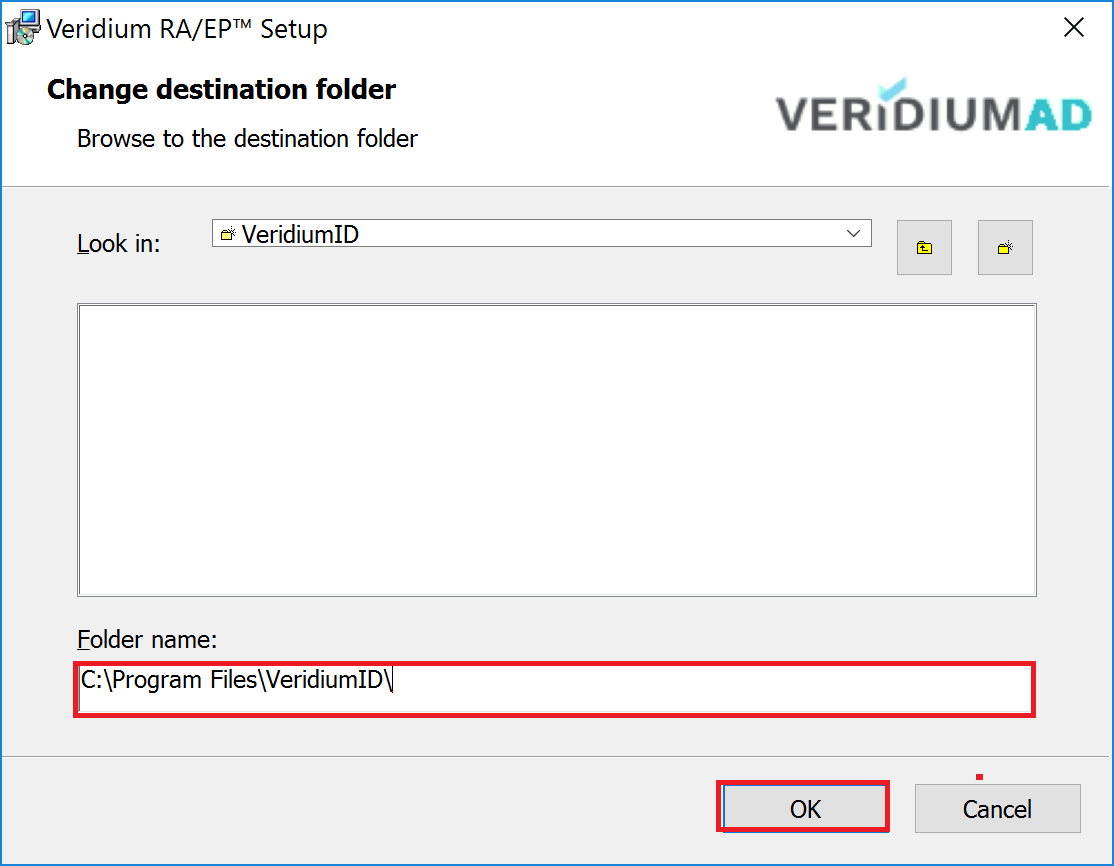

      1. If you want to install RAEP on another disk, enter the desired folder name and then click “Next”.

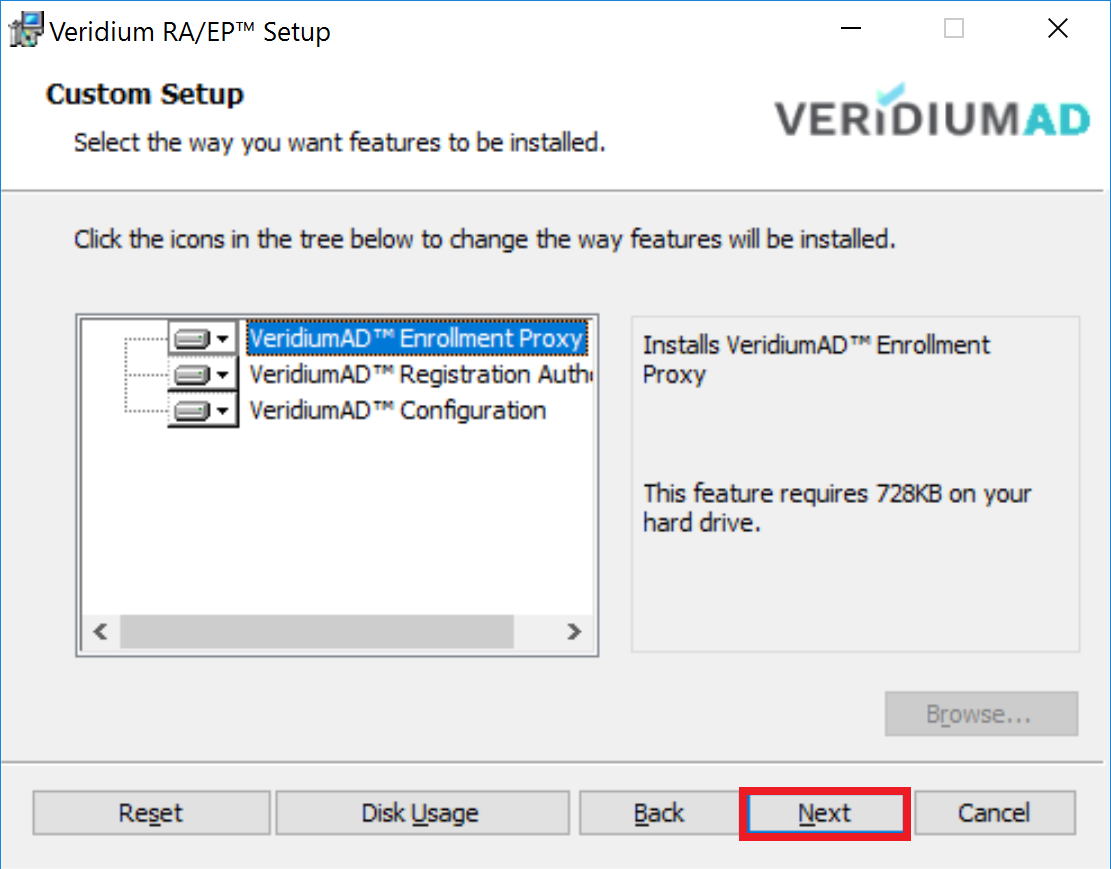

    3. Click the Next button to continue.

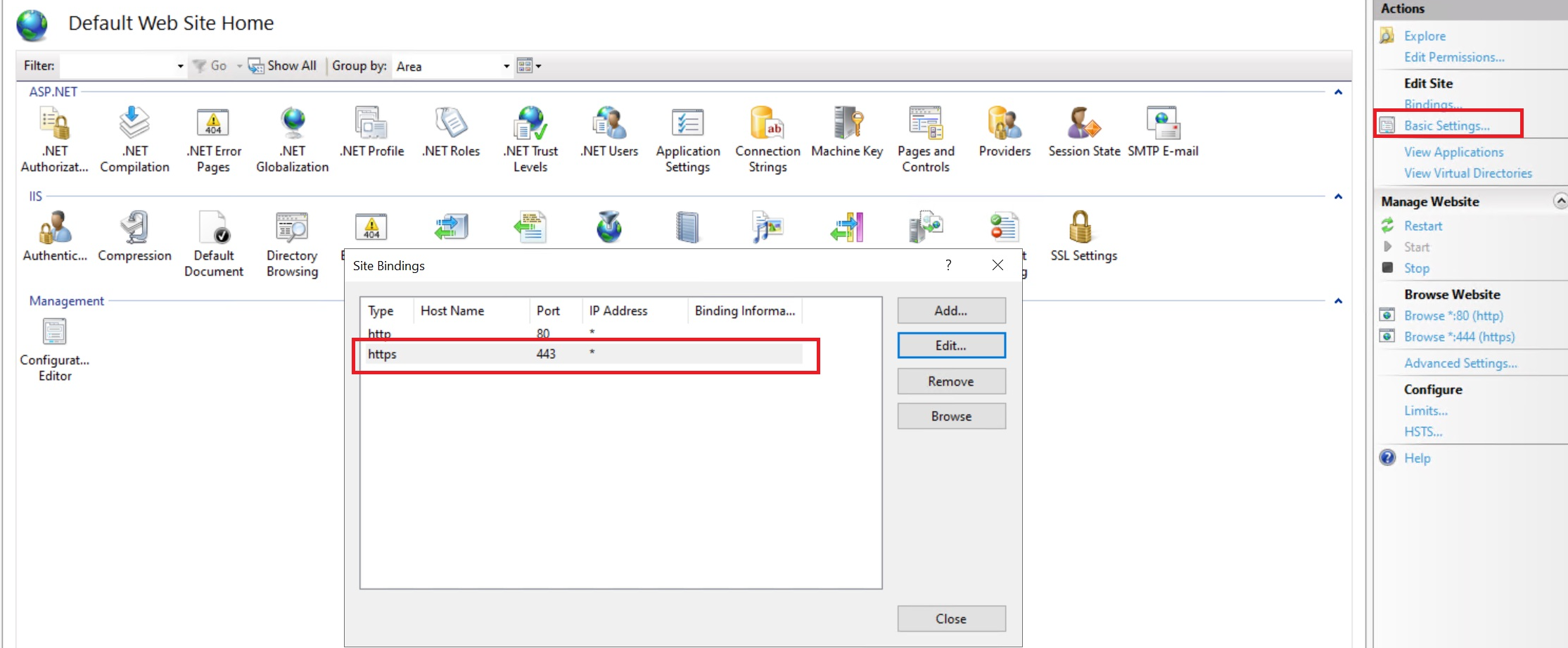

    4. Before continue with the following step, you need to open IIS > Default Web Site > Bindings and make sure you have binding for port 443:

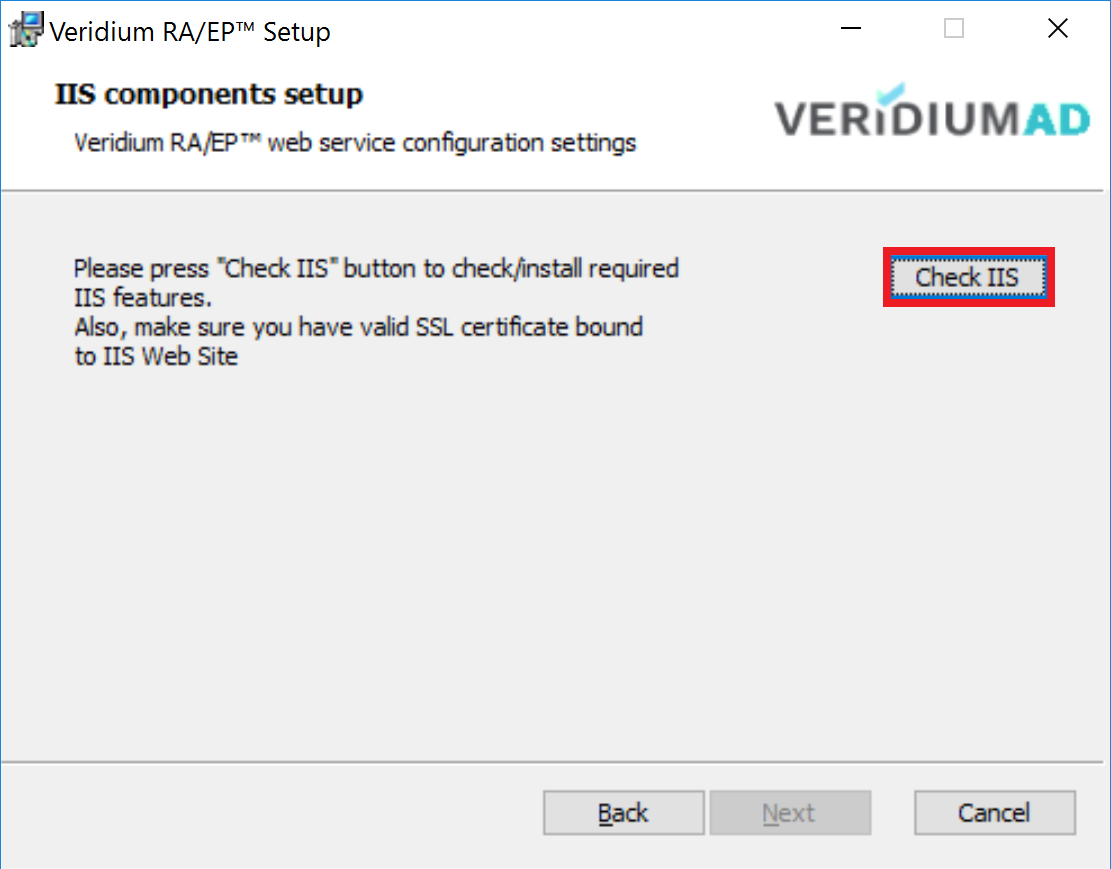

    5. Press "Check IIS" button.

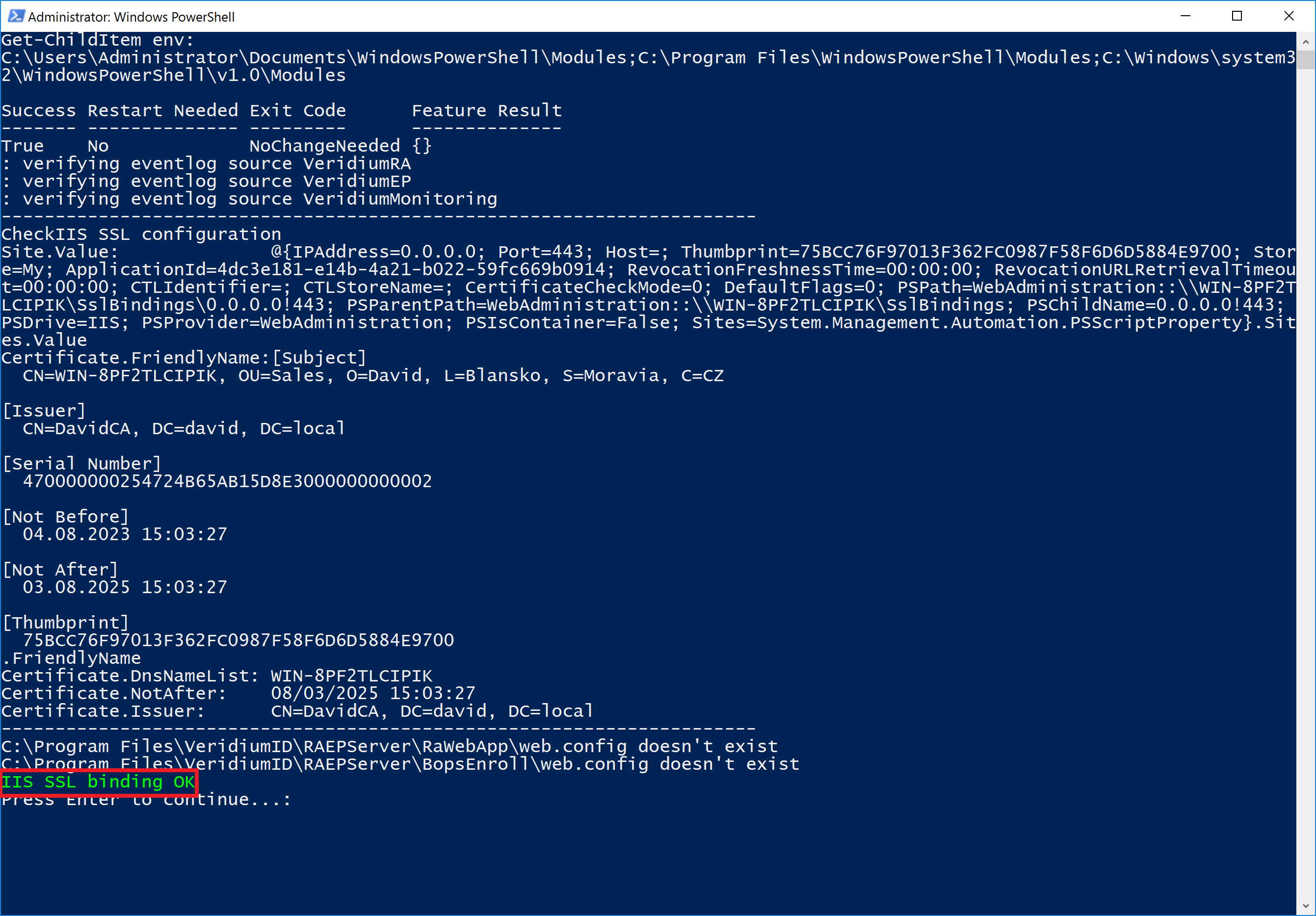

    6. The following PowerShell window will appear. PowerShell script checks and install missing Windows components and check IIS certificate. Press any key to close the PowerShell window and continue.

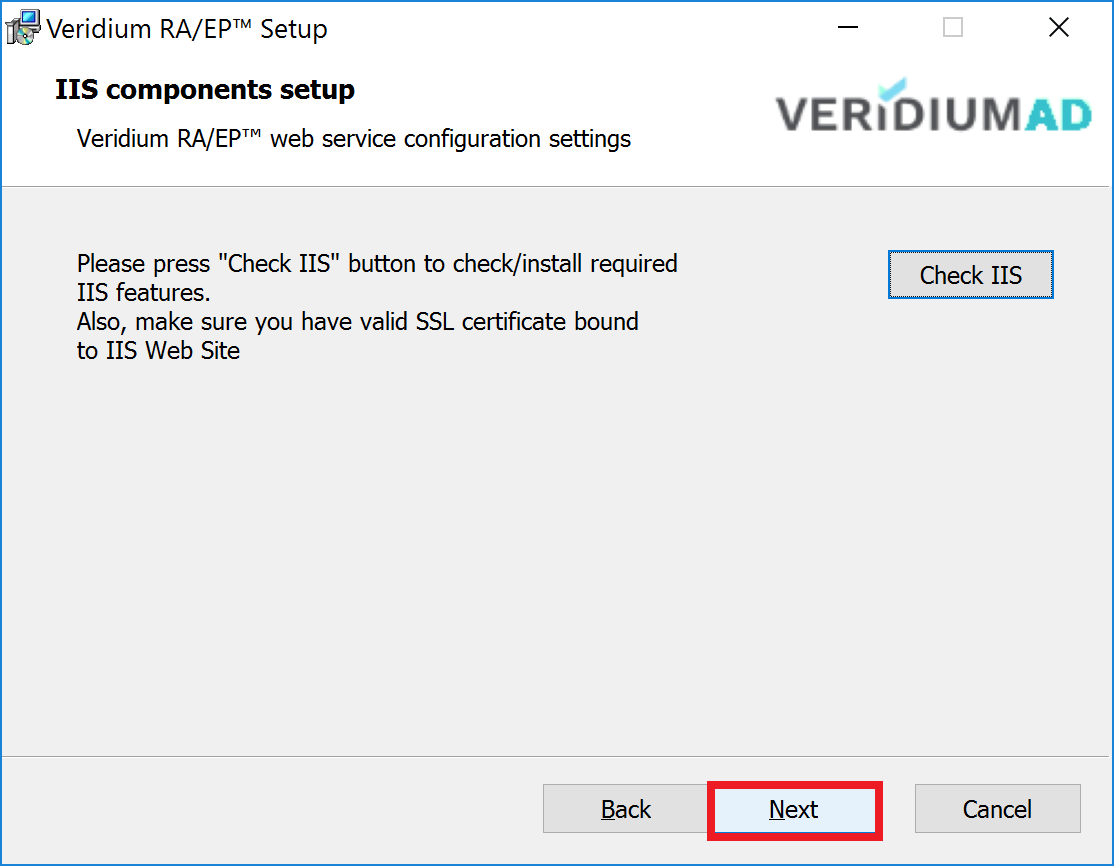

    7. Press "Next" buttoncsc to continue.

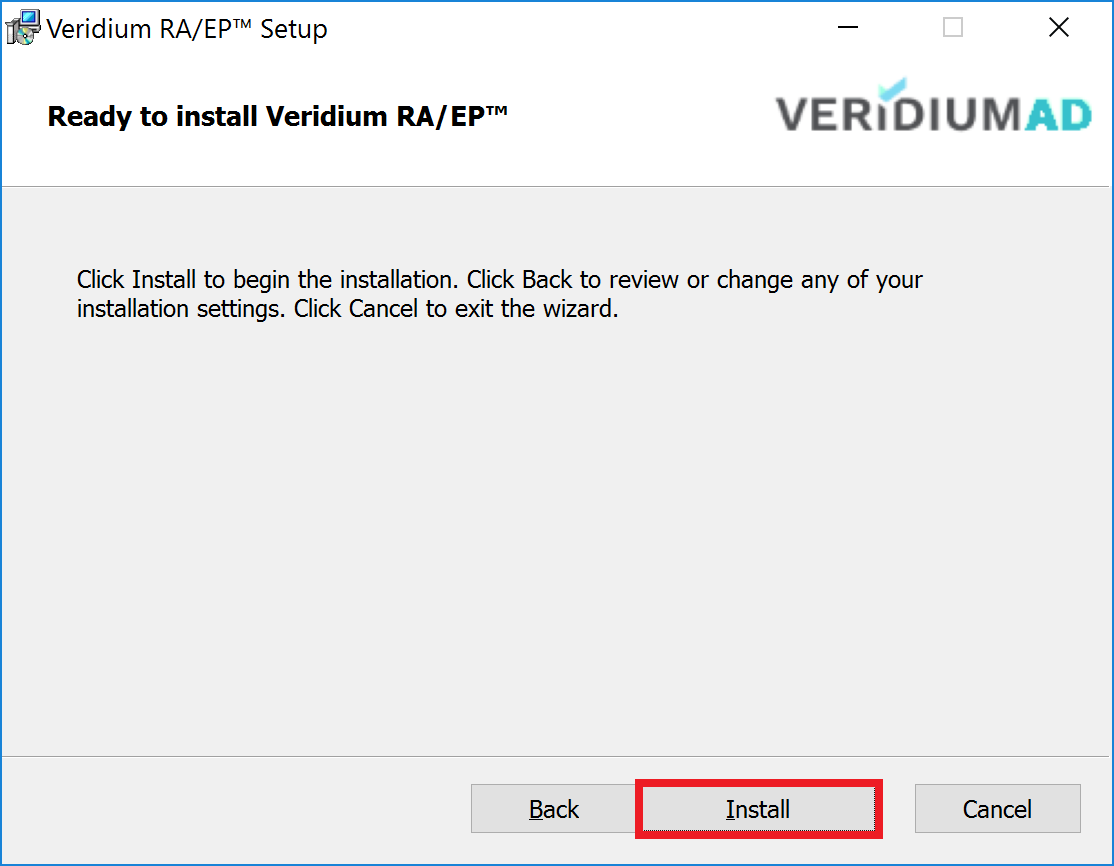

    8. Press "Install" button to continue.

    9. At the end of the install process the RAEP Configuration tool is opened.

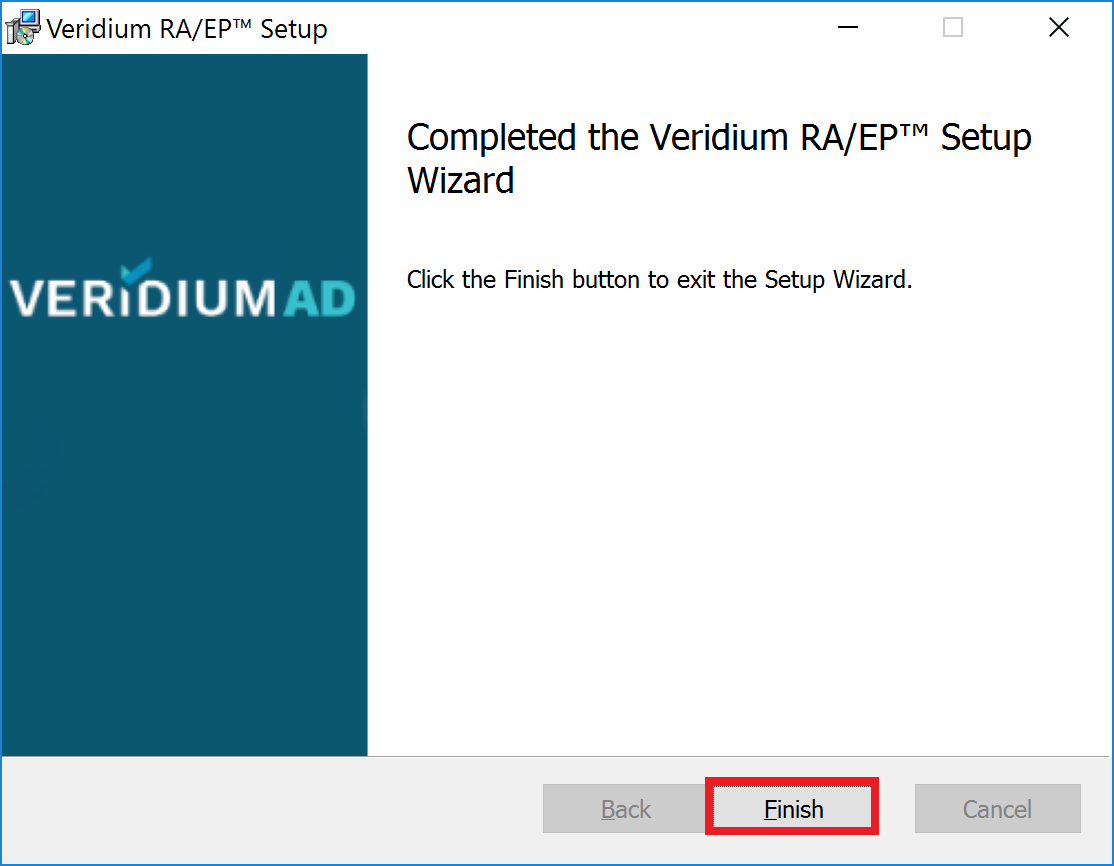

    10. Click “Finish“.
